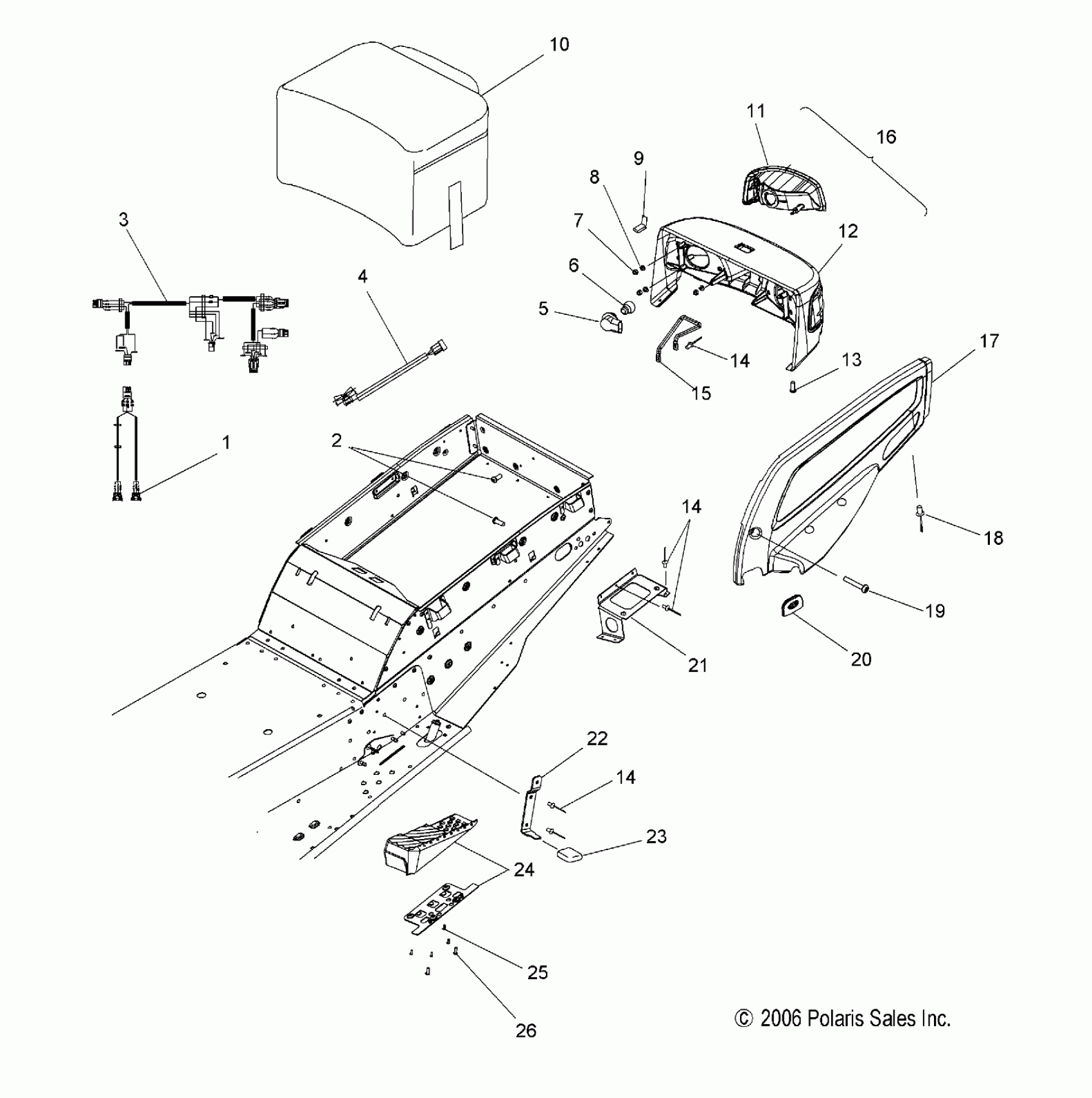

Polaris FS/FST IQ TOURING - S07PT7ES/PT7EE/PT7FS/PT7FE CARGO BOX/TAILLIGHT ASM - S07PT7ES/PT7EE/PT7FS/PT7FE (49SNOWCARGOFSTOUR) Diagram

#

Description
Price

1

Harness, Passenger, Handwarmers

2410533

$102.99

2

SCREW

7512076

$1.49

3

Harness, Taillight [Incl. 4,5]

2410811

Unavailable

4

Harness/Switch, Psngr., Heater

2461144

$82.29

5

Socket, Bulb

4010767

Unavailable

6

BULB, TAILLIGHT

4010764

$20.22

7

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

8

Washer, Flat

7556088

$4.79

9

CLIP, SPEED, U-TYPE

7670042

$1.59

10

Kit, 2-Up Rack Storage Bag

2875964

Unavailable

11

ASM., REFLECTOR, LH

2410327

$53.59

11

ASM., REFLECTOR, RH

2410328

$53.59

12

HOUSING, TAILLIGHT

-------

Unavailable

13

FASTENER, PUSH-ON CLIP

7670125

$7.99

14

RIVET-3/16-.090-.290

7661637

$1.49

14

RIVET-3/16-.090-.290

7661637

$1.49

14

RIVET-3/16-.090-.290

7661637

$1.49

15

Bail, Trunk Lock

5246523

$32.37

16

Asm., Taillight, Black [Incl. 7-9,11,12]

2410324-070

$223.79

17

SKIRT, SNOW, BLACK, LH

5435614-070

$60.70

17

SKIRT, SNOW, BLACK, RH

5435615-070

$60.70

18

RIVET

7621467

$1.49

19

Screw

7517916

$6.39

20

Plug, Rubber

5412816

Unavailable

21

BRACKET, LOWER, ACC ATTACH, BLACK, LH

5248328-067

Unavailable

21

BRACKET, LOWER, ACC ATTACH, BLACK, RH

5248329-067

Unavailable

22

BRACKET, SKIRT MOUNT, BLACK

5248277-067

Unavailable

23

CAP, RUBBER

5412101

$5.59

24

Asm., Footrest, Passenger, RH [Incl. 25]

1015046

$79.99

24

Asm., Footrest, Passenger, LH [Incl. 25]

1015045

$79.99

25

SCREW

7512076

$1.49

26

BOLT

7515133

$3.99
