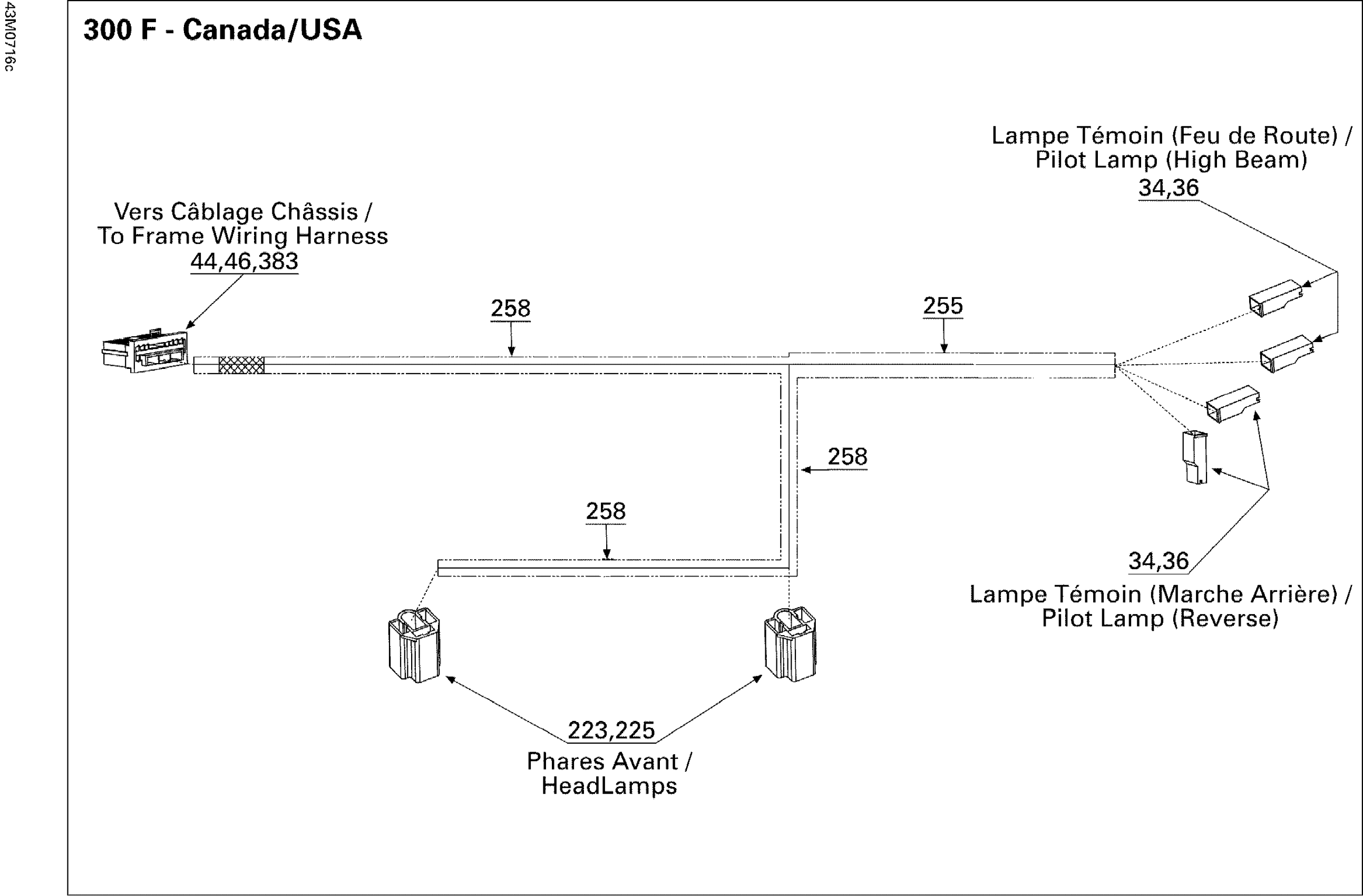

Ski-Doo Freestyle Session 300F, 2007 Electrical Harness Hood CU Diagram

#

Description

Price

1

WIRING HARNESS - Call your local BRP dealership | Canada-USA, Includes 1 to 383

515176291

Unavailable

34

Female Terminal

409010100

$5.61

36

Female Terminal Housing, 1 Circuit

409010400

$7.62

44

Female Terminal

515175231

$4.39

46

Female Terminal

515175282

$7.86

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

258

Tubing 10 MM 1000MM Long

219704407

$2.79

383

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable
