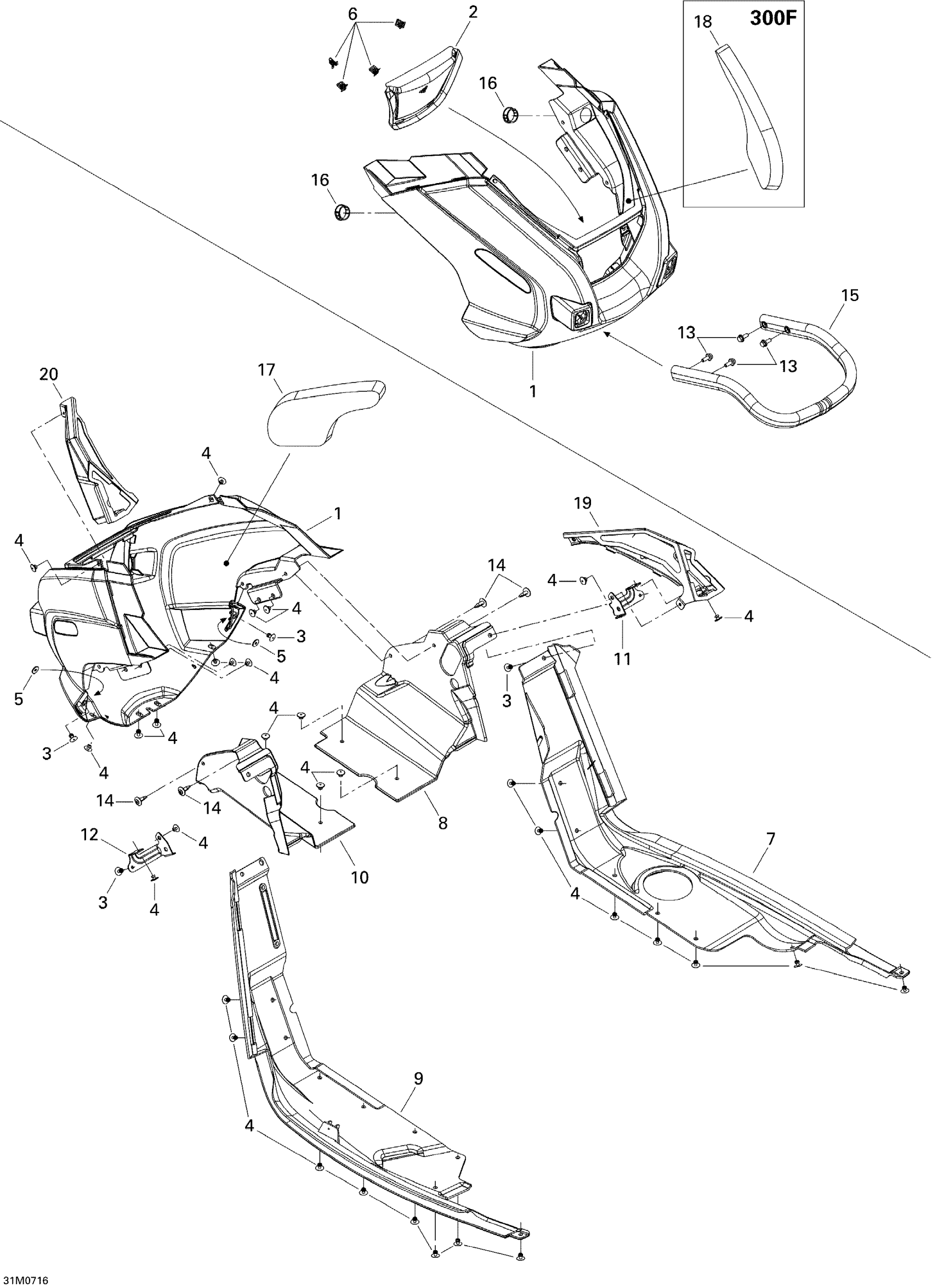

Ski-Doo Freestyle Session 300F, 2007 09- Bottom Pan 300F Diagram

#

Description
Price

1

FRONT BOTTOM PAN - Call your local BRP dealership

502006752

Unavailable

2

FRONT BOTTON PAN GRILL - Call your local BRP dealership

502006753

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4

Pop Rivet 3/16"

293150103

$0.55

5

Washer

517124300

$0.19

6

Edge Clip

517302785

$0.88

7

RH BOTTOM PAN - Call your local BRP dealership

502006852

Unavailable

8

RH SIDE BOTTOM PAN - Call your local BRP dealership

502006853

Unavailable

9

LH BOTTOM PAN - Call your local BRP dealership

502006788

Unavailable

10

LH Side Bottom Pan

502006851

Unavailable

11

RH SUPPORT - Call your local BRP dealership

502006773

Unavailable

12

LH SUPPORT - Call your local BRP dealership

502006775

Unavailable

13

Hex. Flange Screw M6 X 16

207661644

$0.74

14

Tuflock Phillips Plastic Screw

414745900

$1.69

15

FRONT BUMPER - Call your local BRP dealership

502006797

Unavailable

16

Black, Nylon Cap

414916600

$4.69

17

RH BOTTOM PAN FOAM - Call your local BRP dealership

502006807

Unavailable

18

LH BOTTOM PAN FOAM - Call your local BRP dealership

502006808

Unavailable

19

RH BOTTON PAN GRILL - Call your local BRP dealership

502006789

Unavailable

20

LH BOTTON PAN GRILL - Call your local BRP dealership

502006791

Unavailable
