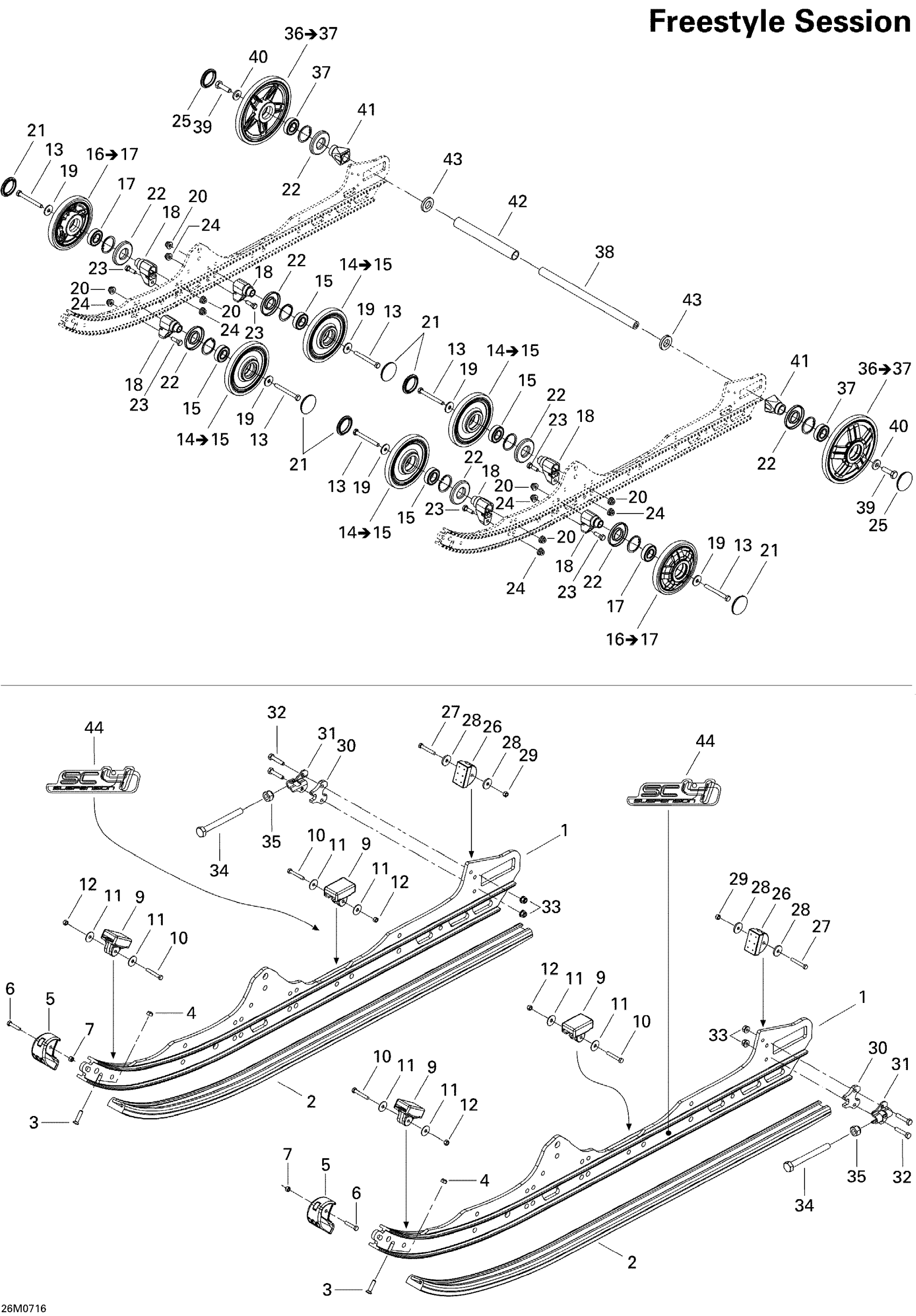

Ski-Doo Freestyle Session 300F, 2007 08- Rear Suspension Diagram

#

Description
Price

1

RUNNER 121 - Call your local BRP dealership

503191224

Unavailable

2

Slider Shoe

503190573

$29.49

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

Runner Protector

503191137

$11.99

6

Hex. Flange Screw M5 X 25

207652544

$0.50

7

Hex. Flange Elastic Nut M5

233251414

$1.04

9

Rubber Stopper

503190576

$12.99

10

Hex. Screw M5 X 30

207053044

$1.16

11

Washer

250200016

$0.74

12

Elastic Stop Nut M5

232551414

$0.87

13

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

14

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

15

Ball Bearing | Package-STD

503190396

$14.30

16

Wheel 141 With Pattern Ass'y, Full Moon

503191313

$37.99

17

Ball Bearing | Package-STD

503190396

$14.30

18

Support

503190580

Unavailable

19

Washer

211200041

$3.17

20

Hex. Flange Elastic Nut M8

233281414

$1.47

21

Wheel Cap

570063600

$3.49

22

Labyrinth Seal

503190434

$6.09

23

Hex. Screw M8 X 25

207182544

$0.90

24

Hex. Flange Elastic Nut M8

233281414

$1.47

25

Wheel Cap

570063600

$3.49

26

Rubber Stopper

503191291

$19.99

27

Hex. Screw M5 X 30

207053044

$1.16

28

Washer

250200016

$0.74

29

Elastic Stop Nut M5

232551414

$0.87

30

Spacer

503193250

$16.49

31

Tensioner

503192583

$8.29

32

Hex. Screw M6 X 30

207063044

$1.26

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

35

Elastic Locking Nut M10 X 1.5

233601416

$1.69

36

WHEEL 180, FULL MOON - Call your local BRP dealership | Includes 34 to 35

503190752

Unavailable

37

Ball Bearing | Package-STD

503190396

$14.30

38

Rear Axle

503190429

$59.99

39

Hex. Screw With Nylon

250000019

$1.69

40

Washer

503190439

$5.93

41

Rear Wheel Spacer

503190428

$8.14

42

Spacer

503191108

$19.99

43

Washer

503190432

$14.22

44

SC4 Decal

516002615

Unavailable
