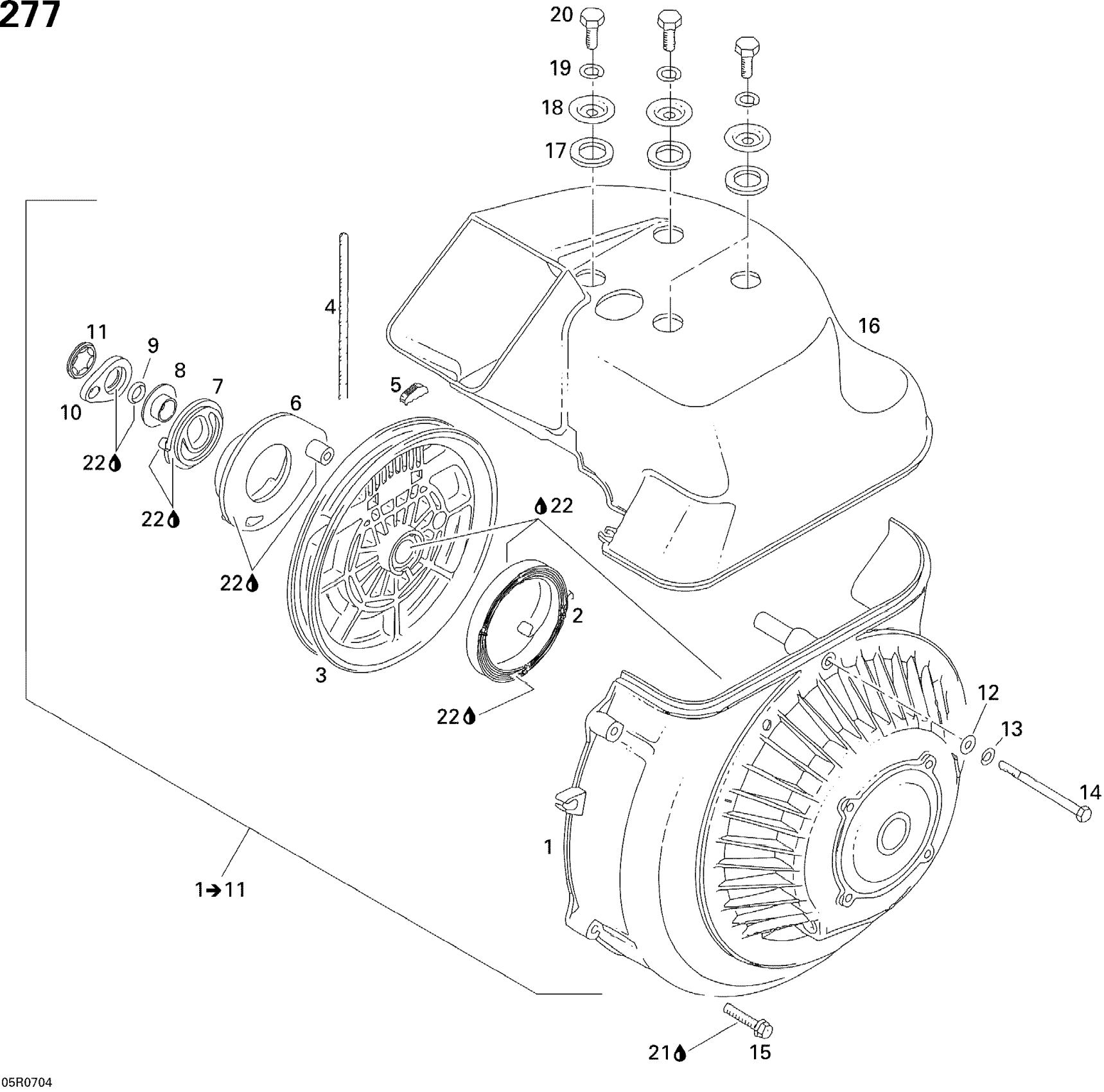

Ski-Doo Freestyle Session 300F, 2007 Rewind Starter Diagram

#

Description
Price

1

Demar.Rappel *Starter-Rewind This part replaces 420889825.

420889823

$291.76

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Rewind Spring

420939115

$29.07

3

Rope Sheave

420852289

Unavailable

4

Was 412500100 Rope-Starter

219704403

$9.85

5

Key Clamp

420852070

$4.01

6

Pawl

420852296

$18.63

7

Pawl Lock | Includes no. 8-9

420852640

$5.34

8

Stage Sleeve

420847926

$14.10

9

O-Ring

420250400

$5.06

10

Lock Ring

420852520

$8.09

11

Locking Element

420845560

$1.97

12

Flat Washer

224061121

$0.51

13

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

14

Hex. Screw M6 X 75

207067544

Unavailable

15

TAPPING SCREW M6 X 35 - Call your local BRP dealership

420640411

Unavailable

16

CYLINDER COWL - Call your local BRP dealership

420910020

Unavailable

17

RUBBER WASHER - Call your local BRP dealership

420960860

Unavailable

18

COWL COVER - Call your local BRP dealership

420827140

Unavailable

19

Washer-Lock Din.128

420945832

$1.06

20

Hex. Screw M8 x 16

207181644

$1.00

21

Loctite 243, 10 ml

293800060

$21.49

22

Molykote PG 54, 10 g

420899763

$21.61
