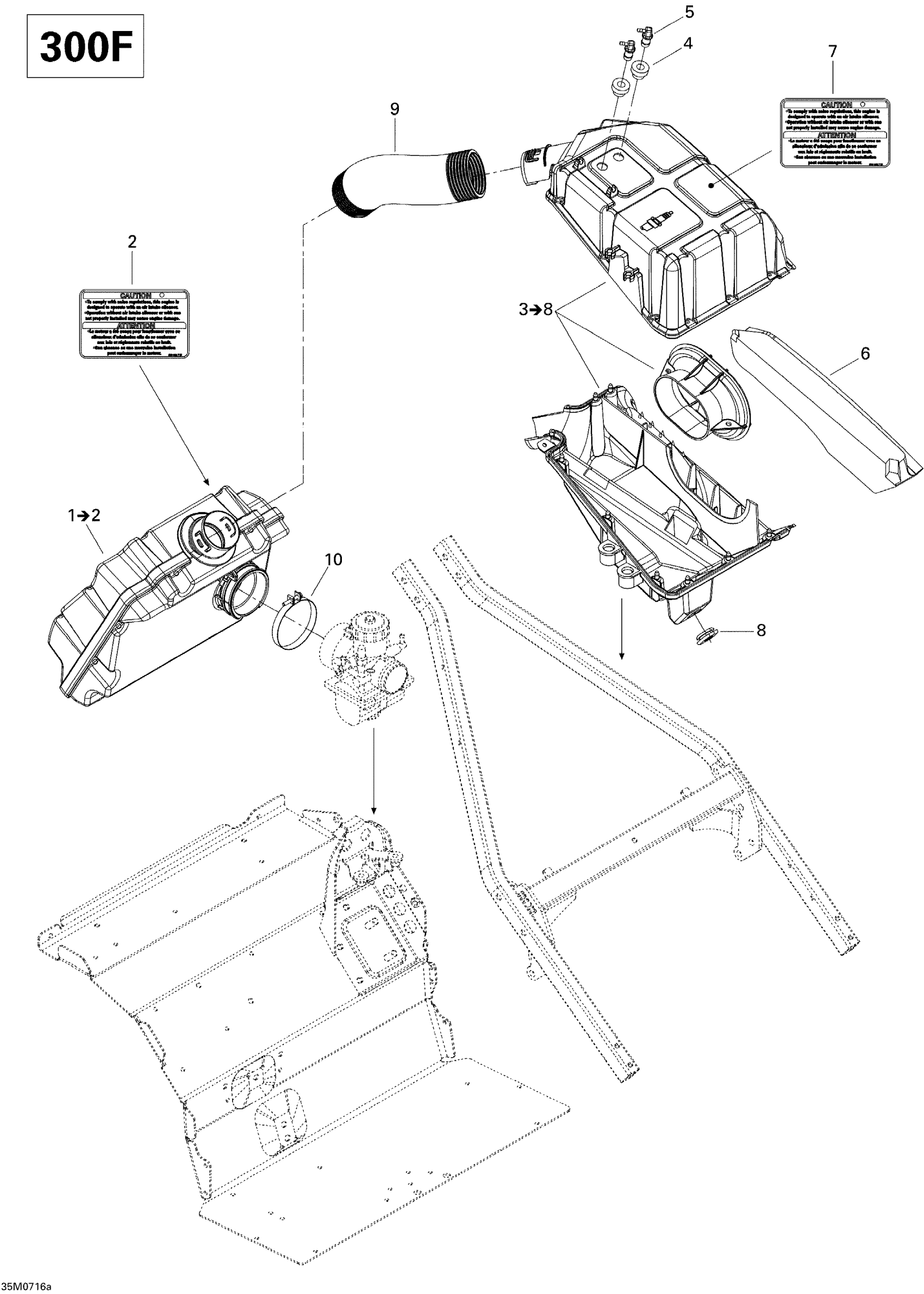

Ski-Doo Freestyle Session 300F, 2007 Air Intake System 300F Diagram

#

Description

Price

1

Primary Chamber Ass'y | Includes 1 to 2

508000401

$93.99

2

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

3

Secondary Chamber Ass'y | Includes 3 to 8

508000400

Unavailable

4

Grommet

513032908

$10.49

5

Male Connector

414814100

$2.22

6

AIR FILTER - Call your local BRP dealership

508000409

Unavailable

7

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

8

Oval Washer

705005156

$4.97

9

Tube

508000406

$13.49

10

GEMI CLAMP - Call your local BRP dealership

508000344

Unavailable
