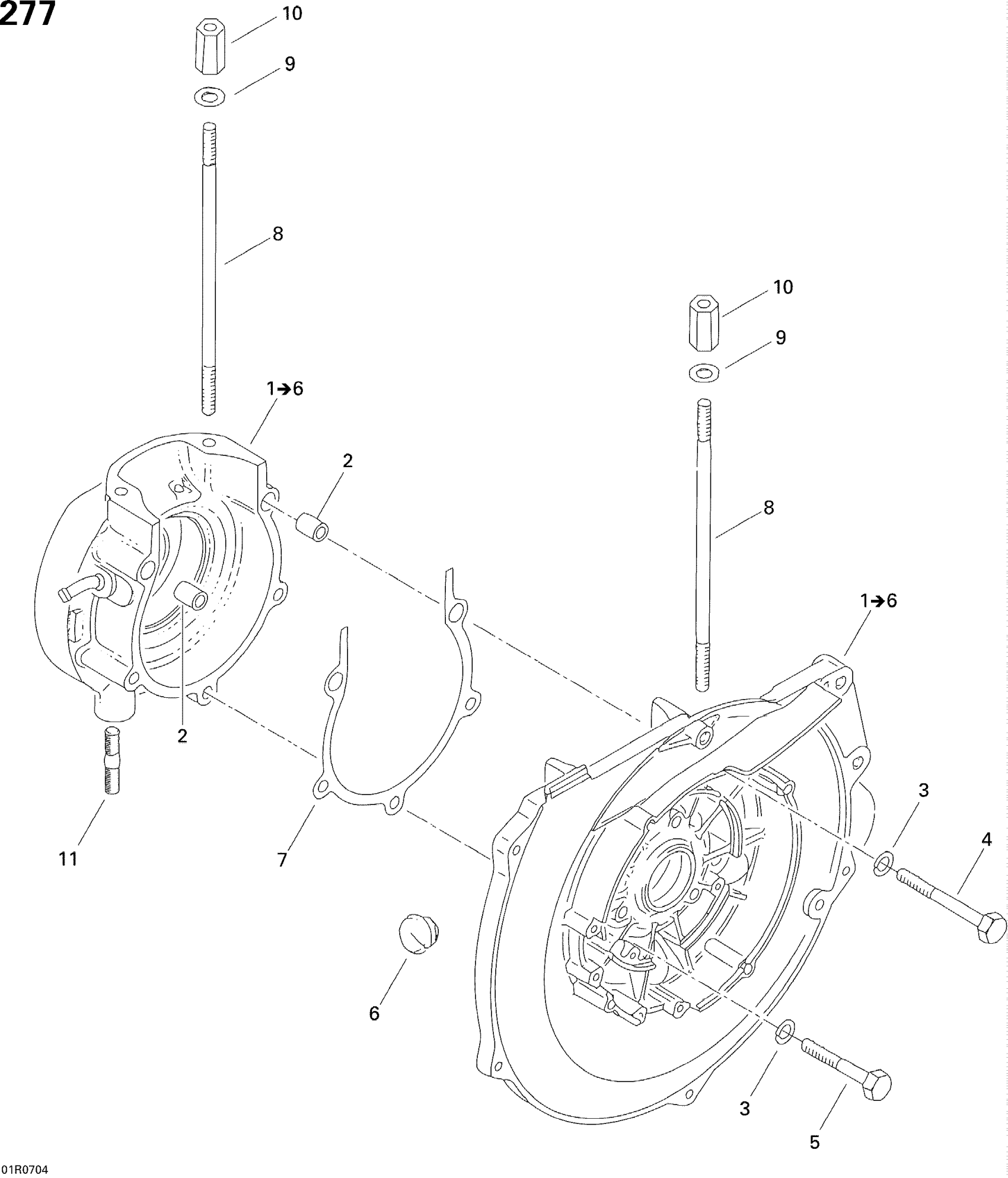

Ski-Doo Freestyle Session 300F, 2007 01- Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 6

420886704

Unavailable

2

DOWEL - Call your local BRP dealership

420229150

Unavailable

3

Washer-Lock Din.128

420945832

$1.15

4

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

5

HEX. SCREW M8 X 55 - Call your local BRP dealership

207085596

Unavailable

6

Cable Grommet

420860962

$13.16

7

GASKET CRANKCASE - Call your local BRP dealership

420850060

Unavailable

8

STUD M8 X 175 - Call your local BRP dealership

420840620

Unavailable

9

Flat Washer 8.4 mm

420250315

$1.15

10

DISTANCE NUT M8 X 27.5 - Call your local BRP dealership

420842010

Unavailable

11

STUD M10 X 29 - Call your local BRP dealership

420641834

Unavailable
