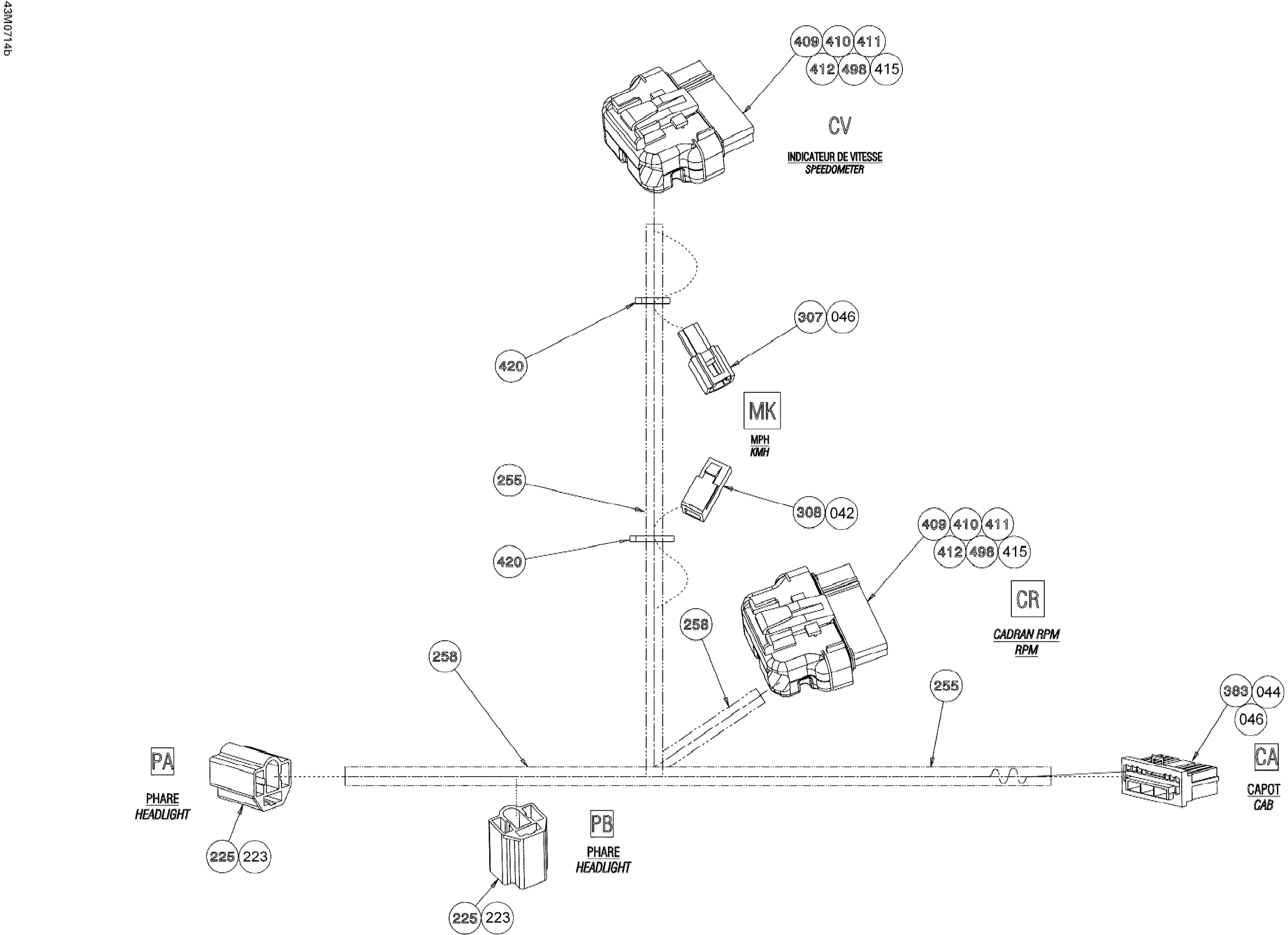

Ski-Doo Freestyle Back Country 550F, 2007 10- Electrical Harness Hood Diagram

Description

Price

Wiring Harness | Includes 1 to 498

515176437

Unavailable

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

Female Terminal

515175231

$4.39

Female Terminal

515175282

$7.86

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

258

Tubing 10 MM 1000MM Long

219704407

$2.79

307

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

308

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

383

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

409

Plug

515175812

$2.19

410

Female Housing, 24 Circuits

515175801

$9.59

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

415

Female Terminal

515175806

$0.99

420

Tie-Rap 180 mm

414115200

$0.11

498

Female Housing

710000399

$16.49
