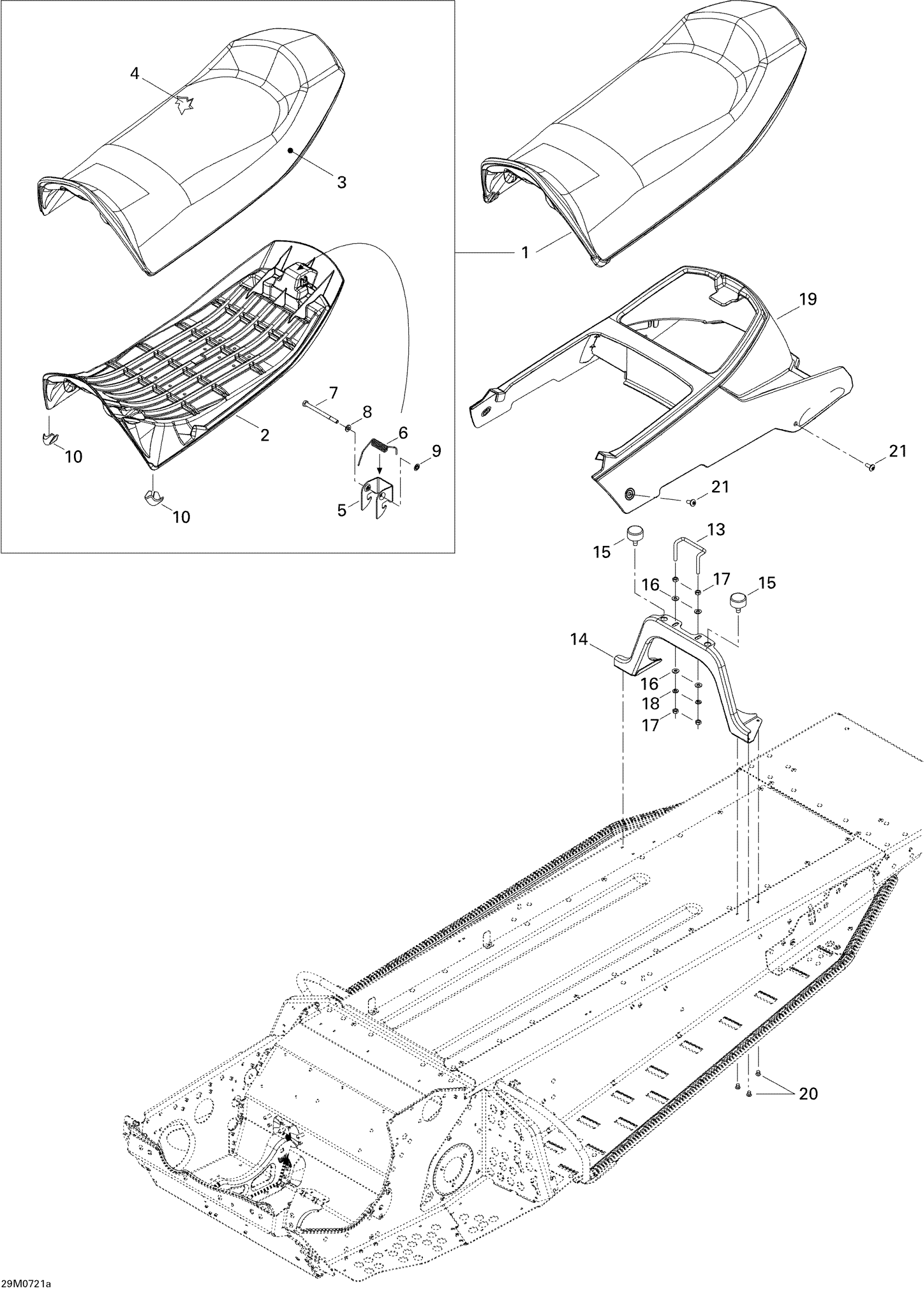

Ski-Doo Freestyle Back Country 550F, 2007 09- Seat 1 Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

SEAT BASE - Call your local BRP dealership

510004487

Unavailable

3

SEAT COVER - Call your local BRP dealership

510004488

Unavailable

4

SEAT FOAM - Call your local BRP dealership

510004489

Unavailable

5

Latch, Black

708000144

$11.99

6

Spring

708000369

$9.19

7

Hex. Screw M6 X 80

207068044

$4.12

8

Flat Washer 6 mm

234061410

$1.36

9

Push Nut

732610072

$2.19

10

SEAT PROTECTOR, BLACK - Call your local BRP dealership

510004606

Unavailable

13

SEAT FASTENER PIN - Call your local BRP dealership

510004608

Unavailable

14

SEAT SUPPORT - Call your local BRP dealership

510004602

Unavailable

15

Rubber Stopper

708000758

$12.99

16

Flat Washer

224061121

$0.53

17

Hex. Nut M6

232061414

$0.53

18

Lock Washer Helical M6

234161601

$1.15

19

TRUNK - Call your local BRP dealership

510004490

Unavailable

20

Avex Rivet

390909200

$0.30

21

Torx Truss Screw M6 X 16

250000721

$1.69
