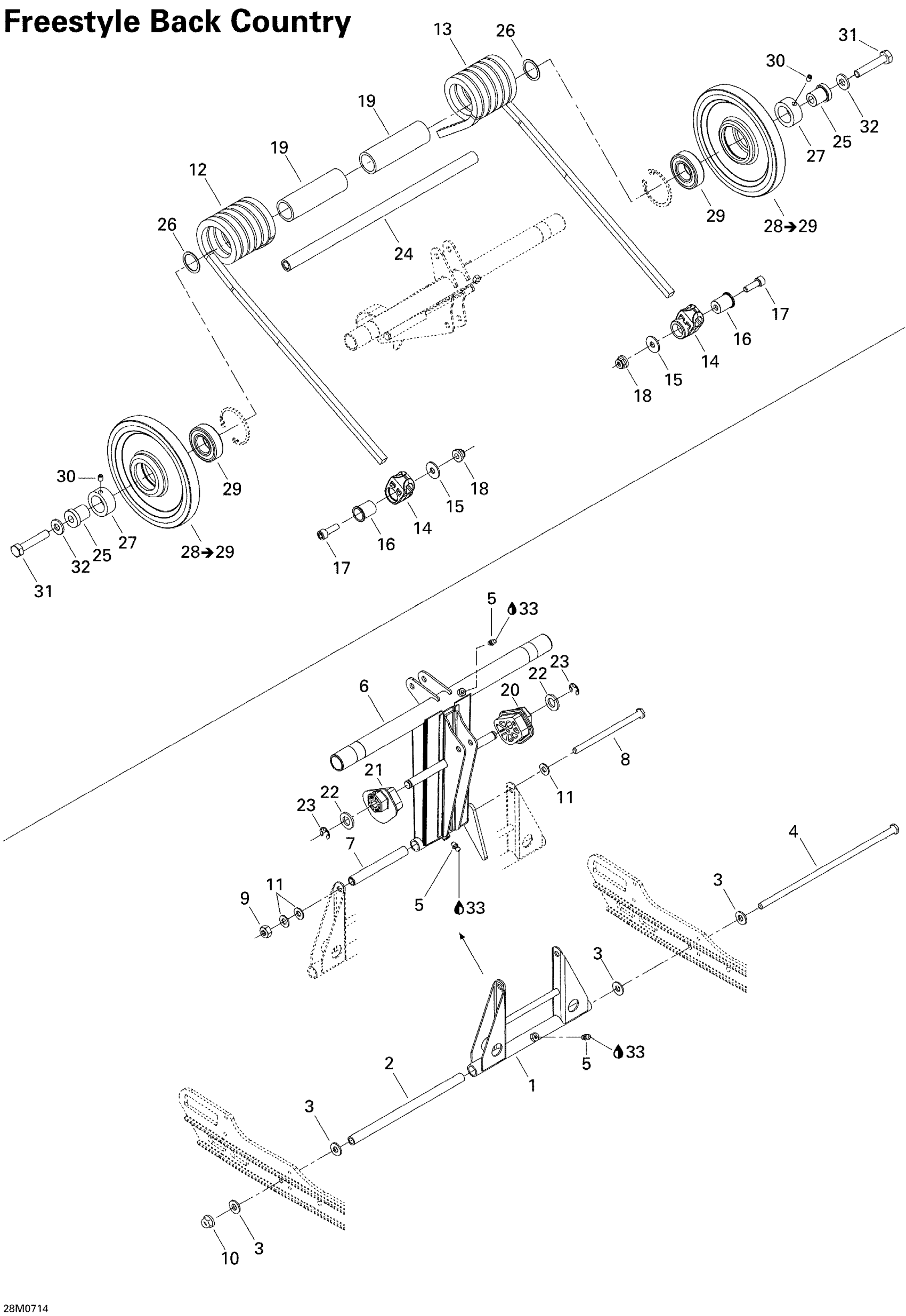

Ski-Doo Freestyle Back Country 550F, 2007 Rear Arm Diagram

#

Description
Price

1

PIVOT ARM - Call your local BRP dealership

503191372

Unavailable

2

Pivot Arm Axle

503189156

$20.12

3

Washer

503189157

$3.10

4

Bolt M8 X 248mm

503192440

$29.07

5

Grease Fitting

408200700

$3.21

6

Rear Arm

503191057

Unavailable

7

Upper Axle, Pivot Arm

503144300

$10.84

8

Bolt M8, Short

732601197

$14.61

9

Hex. Elastic Stop Nut M8

232581414

$0.54

10

Hex. Flange Elastic Nut M8

233281414

$1.31

11

Flat Washer 8 mm

234081410

$0.79

12

RH Spring

503191287

$75.34

13

LH Spring

503191289

$75.34

14

SPRING SUPPORT - Call your local BRP dealership

503191539

Unavailable

15

Flat Washer 8 mm

234082410

$1.27

16

Spring Support Kit

861805547

$7.90

17

Socket Head Screw M8 X 25

205082544

$1.06

18

Hex. Flange Elastic Nut M8

233281414

$1.31

19

BUSHING - Call your local BRP dealership

503190333

Unavailable

20

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

21

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

22

Washer | 7415/7416. 7417/7418.

503189148

$2.64

23

E-Circlip

293370013

$0.60

24

SHAFT - Call your local BRP dealership

503190387

Unavailable

25

BUSHING - Call your local BRP dealership

503190422

Unavailable

26

Washer

503190328

$11.00

27

Retaining Ring

503168800

$12.27

28

WHEEL 165 - Call your local BRP dealership | Includes 28 to 29

503191359

Unavailable

29

Ball Bearing

503193548

$16.39

30

Socket Set Screw M6 X 8

206260844

$1.43

31

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.82

32

Washer

732900049

$0.55

33

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
