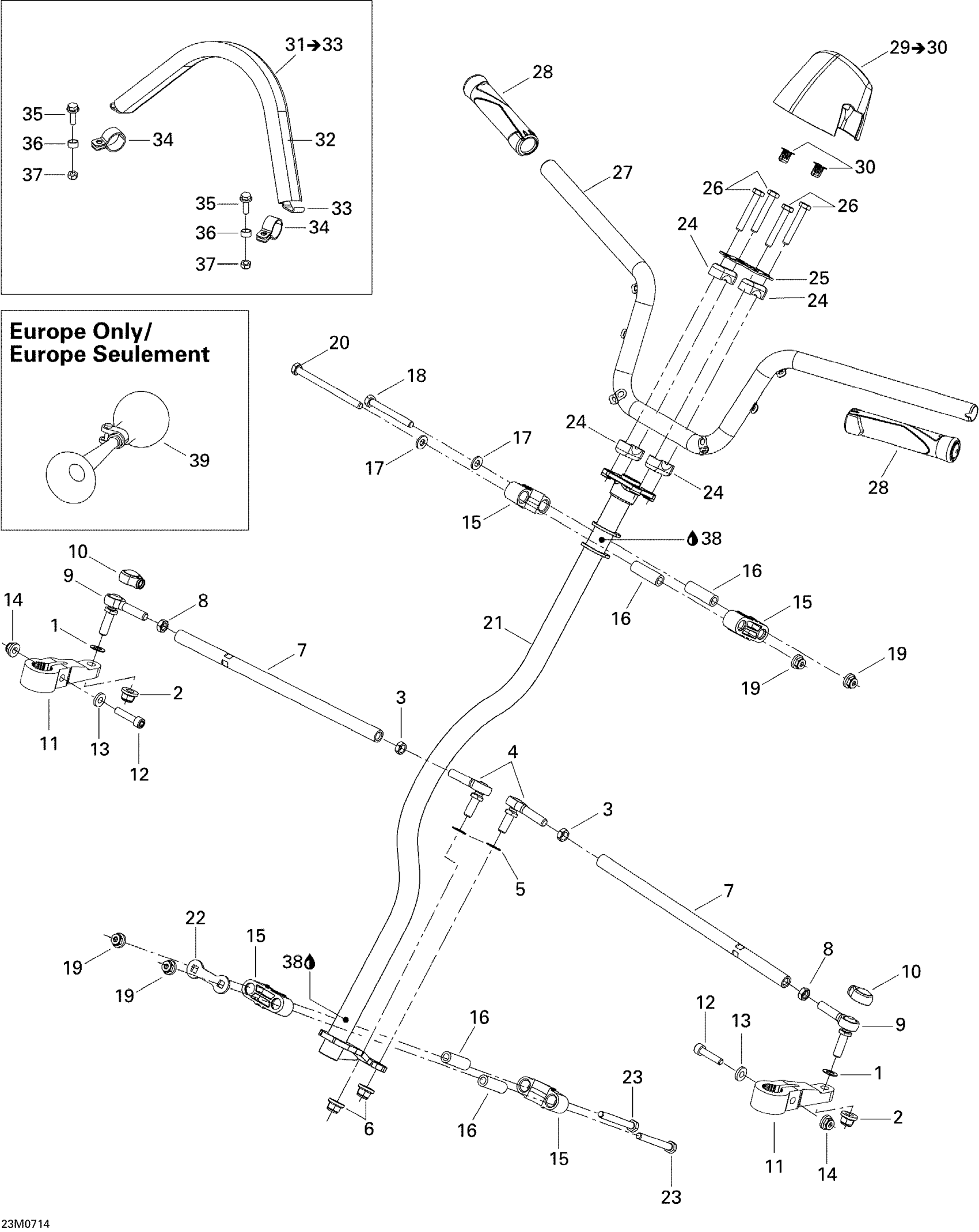

Ski-Doo Freestyle Back Country 550F, 2007 07- Steering System Diagram

#

Description
Price

1

Washer

503175800

$3.28

2

Hex. Flange Elastic Nut M10

250100165

$0.85

3

LH Threaded Hex. Jam Nut M10

250100016

$0.74

4

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

5

Washer

503175800

$3.28

6

Hex. Flange Elastic Nut M10

250100165

$0.85

7

TIE ROD - Call your local BRP dealership

506151884

Unavailable

8

RH Threaded Hex. Jam Nut M10

732610010

$0.74

9

BALL JOINT - Call your local BRP dealership

506152212

Unavailable

10

PROTECTION CAP - Call your local BRP dealership

506151650

Unavailable

11

Swivel Arm

506152030

Unavailable

12

Hex. Screw M8 X 45

207084544

$1.48

13

Flat Washer 8 mm

234081410

$0.83

14

Hex. Flange Elastic Nut M8

233281414

$1.47

15

Housing Half

506150400

$7.62

16

Housing Bushing

506150500

$7.99

17

Washer

503189157

$3.28

18

Hex. Screw M8 X 70

207087044

$2.19

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

HEX. SCREW M8 X 110 - Call your local BRP dealership

230081044

Unavailable

21

STEERING MAIN TUBE - Call your local BRP dealership

506152009

Unavailable

22

Stopper Plate

506150600

$4.39

23

Hex. Screw M8 X 70

207087044

$2.19

24

Steering Support

709400919

$22.49

25

REINFORCEMENT - Call your local BRP dealership

506151547

Unavailable

26

HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership

250000082

Unavailable

27

HANDLE BAR - Call your local BRP dealership

506151986

Unavailable

28

Handle Grip

506152238

$78.49

29

CAP - Call your local BRP dealership | Includes 29 to 30

506151660

Unavailable

30

Edge Clip

517302785

$0.88

31

Strap Ass'y | Package XMR

506152115

$44.49

32

Strap Ass'y | Package XMR

506152115

$44.49

33

Strap Ass'y | Package XMR

506152115

$44.49

34

Black Support Plate

506152536

$9.19

35

Hex. Flange Screw M6 X 20

207662084

$1.69

36

Bushing | Package XMR

506152156

$5.61

37

Hex. Flange Elastic Nut M6

233261494

$1.58

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

39

Horn

549011291

$35.99
