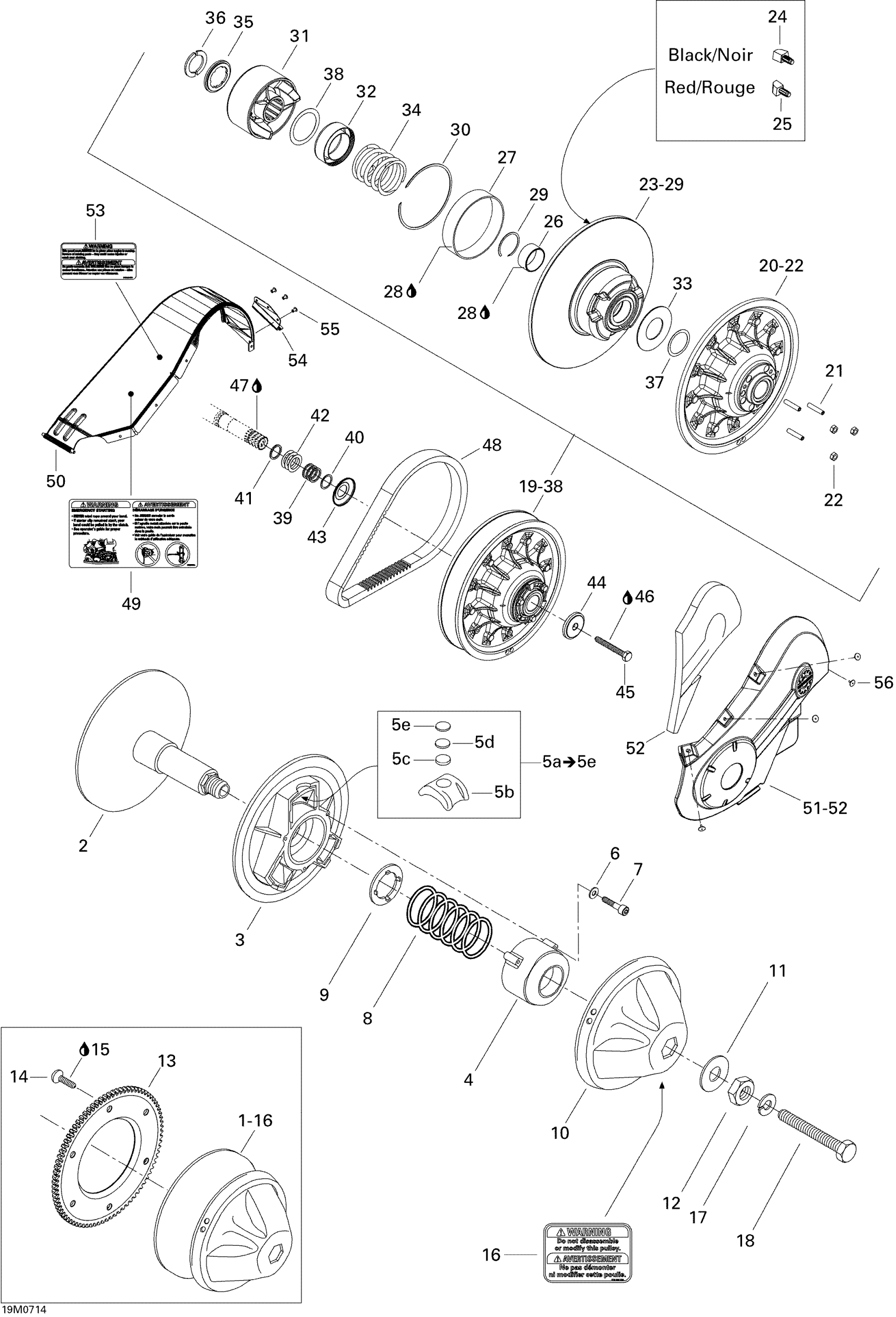

Ski-Doo Freestyle Back Country 550F, 2007 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

INNER FLANGE - Call your local BRP dealership

415128975

Unavailable

3

SLIDING FLANGE - Call your local BRP dealership

417126692

Unavailable

4

SPRING COVER - Call your local BRP dealership

415128602

Unavailable

5a

Unit | Includes 5 to 8, CDN, USA

415129219

Unavailable

5b

CENTRIFUGE BLOCK - Call your local BRP dealership | CDN, USA

417118100

Unavailable

5c

ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA

417120400

Unavailable

5d

ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA

417114400

Unavailable

5e

CAPSULE - Call your local BRP dealership | CDN, USA

417114500

Unavailable

6

WASHER - Call your local BRP dealership

420245370

Unavailable

7

SOCKET HEAD SCREW M6 X 35 - Call your local BRP dealership

415128606

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

SPRING SEAT - Call your local BRP dealership

417126694

Unavailable

10

Cap

415128609

Unavailable

11

WASHER - Call your local BRP dealership

415128610

Unavailable

12

NUT - Call your local BRP dealership

417118300

Unavailable

13

Ring Gear

417222833

$327.99

14

Hex. Screw M8 X 16

236281684

$4.12

15

Loctite 271, 10 ml

293800005

$26.99

16

Security Label

516001726

Unavailable

17

WASHER-LOCK HELICAL SPRING - Call your local BRP dealership

392002800

Unavailable

18

BOLT - Call your local BRP dealership

417113800

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

FIXED FLANGED ASS'Y - Call your local BRP dealership | Includes 22 to 32

417127024

Unavailable

21

Screw Socket Set DIN.913 S.Grip

250000408

$4.09

22

Hex. Flange Nut M6

233061414

$1.68

23

Sliding Flange Ass'y

417127026

Unavailable

24

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

25

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

26

BUSHING - Call your local BRP dealership

417126901

Unavailable

27

BUSHING - Call your local BRP dealership

417126902

Unavailable

28

Loctite, Black Max, 3 ml

413408300

$26.99

29

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

30

CIRCLIP - Call your local BRP dealership

417126878

Unavailable

31

CAM ASS'Y - Call your local BRP dealership

417126445

Unavailable

32

GUARD - Call your local BRP dealership

417126381

Unavailable

33

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

34

Spring

417127061

$46.49

35

SPACER - Call your local BRP dealership

417126733

Unavailable

36

HALF KEY - Call your local BRP dealership

417126734

Unavailable

37

SHIM - Call your local BRP dealership

504112300

Unavailable

38

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

39

Spacer

417300252

$5.49

40

Spacer

417300265

$2.29

41

Spacer

417300252

$5.49

42

Shim

504112000

$8.59

43

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

44

Strength Washer

517302322

$12.63

45

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

46

Loctite 243, 10 ml

293800060

$21.49

47

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

48

Drive Belt

415060600

$104.99

49

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable

50

BELT GUARD - Call your local BRP dealership

417300269

Unavailable

51

SIDE PROTECTOR ASS'Y - Call your local BRP dealership | Includes 53 to 54

417300301

Unavailable

52

Foam

417300246

Unavailable

53

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

54

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

55

Avex Rivet

390909200

$0.30

56

Pop Rivet 3/16"

293150103

$0.55
