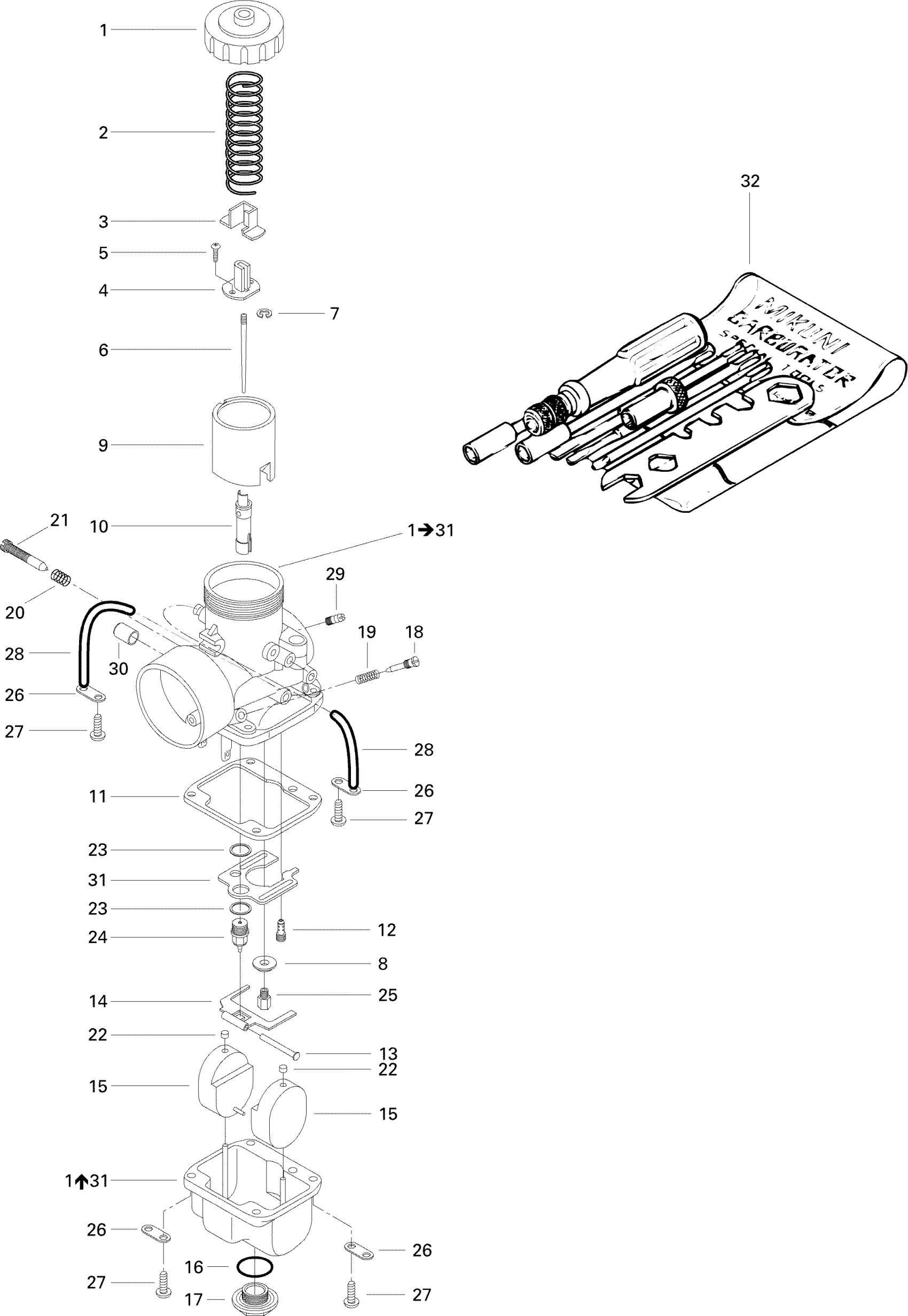

Ski-Doo Formula SS, 1996 02- Carburetor Formula SS Diagram

#

Description
Price

1

VM 40-79 Carburetor | Includes 1 to 31

403124400

Unavailable

1

Cover

404126800

Unavailable

2

Spring

404156500

Unavailable

3

Cover

404128100

Unavailable

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.14

6

Jet Needle J8 7EDY1 | Formula Deluxe 670.

404156700

Unavailable

7

E-Ring

404152200

$4.14

8

Washer

404116700

Unavailable

9

Piston Valve CA 2.5

404132300

Unavailable

10

Needle Jet 224-AA-3 | Formula Deluxe 670.

404151800

Unavailable

11

GASKET - Call your local BRP dealership

404104700

Unavailable

12

PILOT JET 50 - Call your local BRP dealership

404109500

Unavailable

13

Lever Pin

404103300

$6.27

14

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

15

FLOAT - Call your local BRP dealership

404105400

Unavailable

16

Washer | Formula Deluxe 500.

404112800

Unavailable

17

Drain Plug Screw | Formula Deluxe 500.

404112900

Unavailable

18

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

19

Screw (PTO/Center)

404139000

Unavailable

20

Spring

404101700

$4.14

21

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

22

Cap

404105800

$6.38

23

Seat Washer

404101600

$3.29

24

Needle Valve 1.5

404147400

$42.49

25

Main Jet 360

404106100

$5.21

26

PLATE - Call your local BRP dealership

404103000

Unavailable

27

Screw With Lock Washer

404102000

$3.18

28

Hose | Grand Touring SE.

404109800

Unavailable

29

Nipple

404153400

$12.16

30

Cap

270500095

$9.59

31

Baffle

404112700

Unavailable

32

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

33

Hight Altitude Kit, (Not Shown)

861750300

Unavailable
