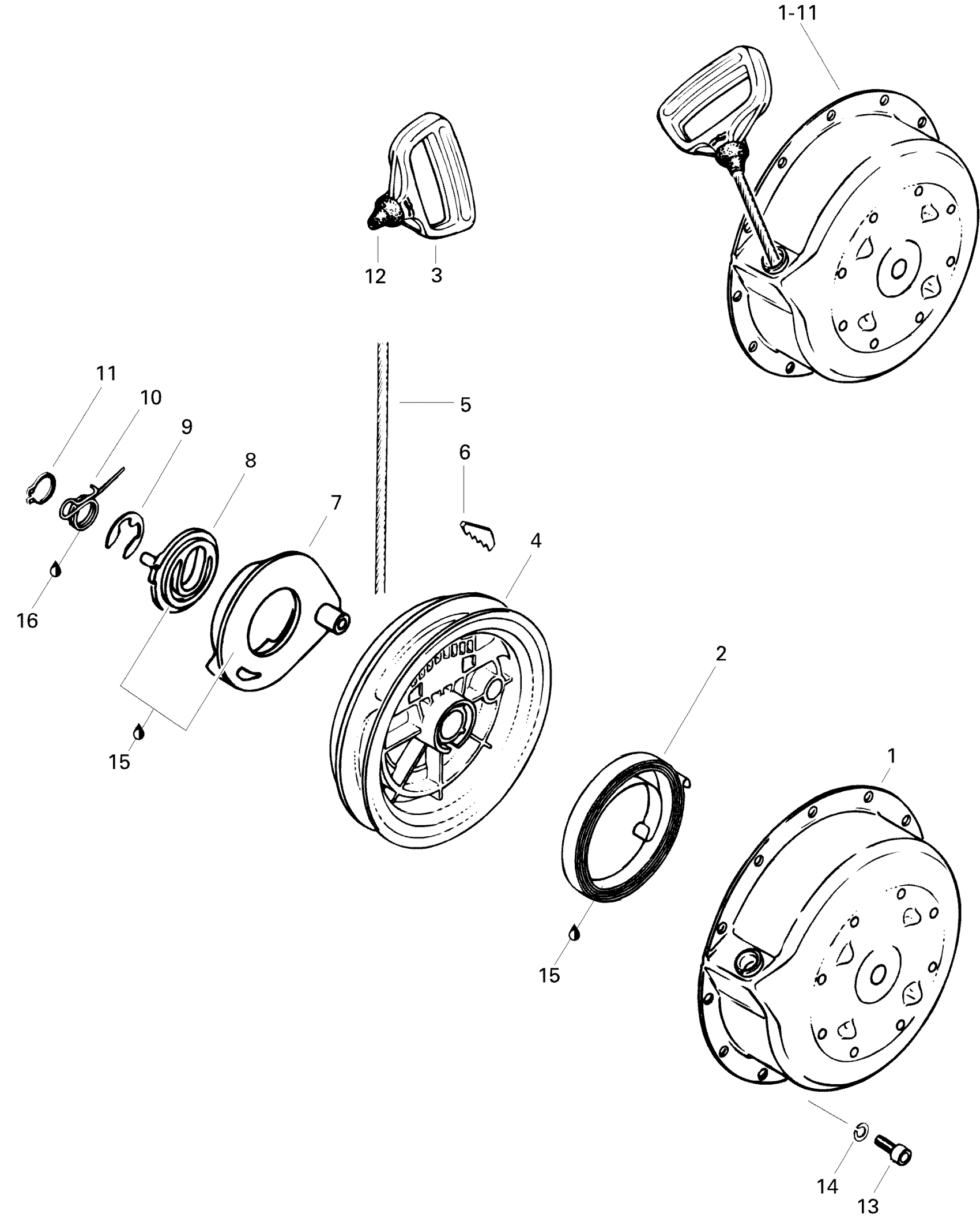

Ski-Doo Formula SLS, 1996 Rewind Starter 494 Diagram

#

Description
Price

1

Rewind Starter Ass'y | Includes 1 - 11.

420887450

Unavailable

1

Starter Housing

420810817

Unavailable

2

Rewind Spring

420939115

$29.07

3

Starter Handle

420852176

Unavailable

4

Rope Sheave

420852283

$59.67

5

Was 412500100 Rope-Starter

219704403

$9.85

6

Key Clamp

420852070

$4.01

7

Pawl

420852296

$18.63

8

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

420852301

Unavailable

9

CIRCLIP - Call your local BRP dealership

420845300

Unavailable

10

Pawl Spring

420938986

$8.09

11

LOCK RING - Call your local BRP dealership

420945770

Unavailable

12

Rubber Buffer

420960415

Unavailable

13

Hex. Screw M6 X 16

207161644

$0.70

14

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

16

Not Available As Spare Part - Friction Washer

Unavailable
