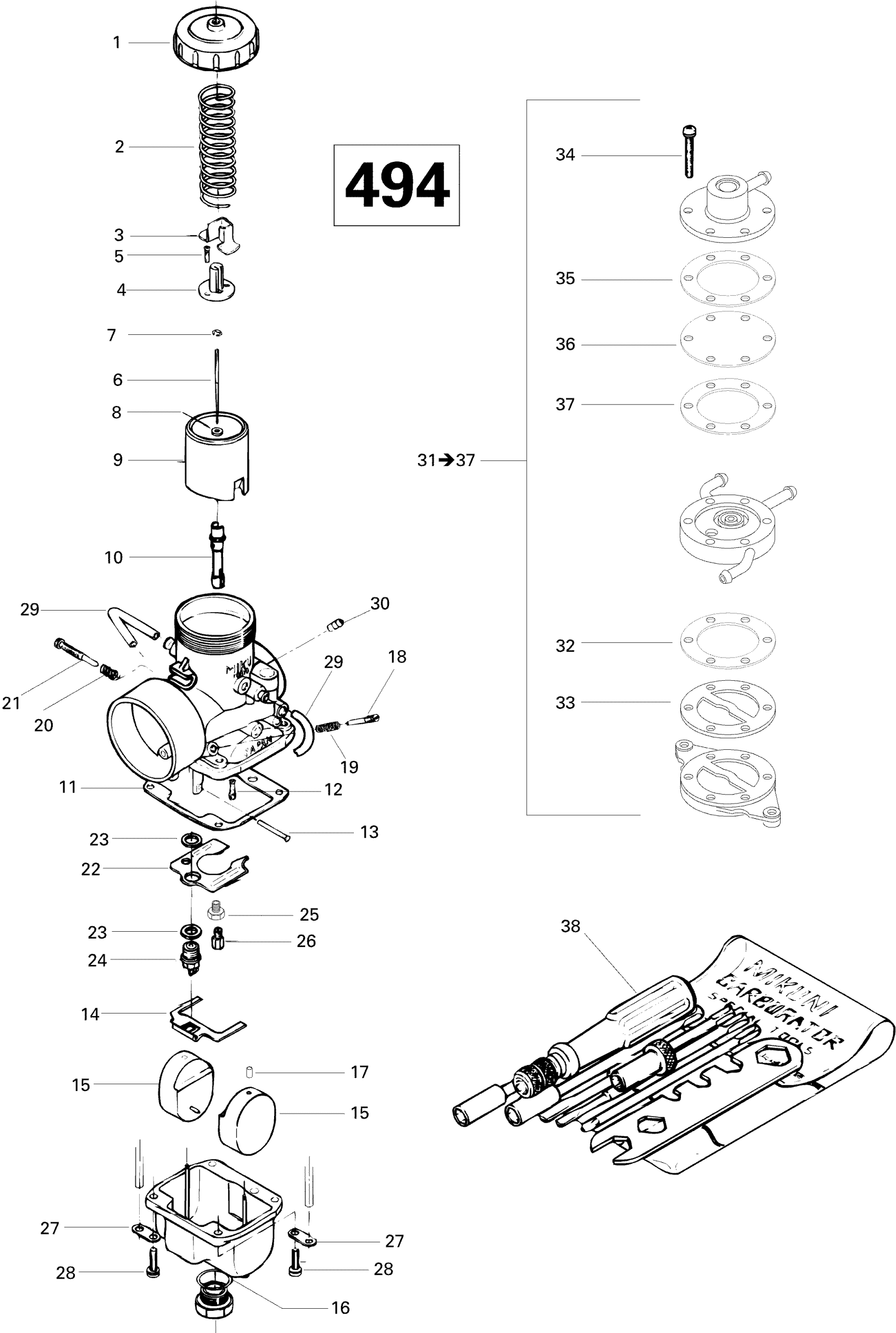

Ski-Doo Formula SLS, 1996 Carburetor 494 Diagram

#

Description
Price

1

VM 38-311 Carburetor | Includes 1 to 31

403123900

Unavailable

1

COVER - Call your local BRP dealership

404105100

Unavailable

2

Spring

404154800

$24.60

3

Cover

404122100

$17.88

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.24

6

Jet Needle J8 6FEY1 | Summit 583.

404156800

Unavailable

7

E-Ring

404152400

$6.36

8

Packing

404117000

$3.31

9

Piston Valve CA 2.5

404131300

Unavailable

10

Needle Jet NJ-480-P7 | Formula Deluxe 583.

404156900

Unavailable

11

GASKET - Call your local BRP dealership

404104700

Unavailable

12

Pilot Jet 45

404109400

$5.29

13

Lever Pin

404103300

$6.36

14

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

15

FLOAT - Call your local BRP dealership

404105400

Unavailable

16

O-RING - Call your local BRP dealership

404101500

Unavailable

17

Cap

404105800

$6.49

18

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

19

SPRING - Call your local BRP dealership

404139800

Unavailable

20

Spring

404101700

$4.24

21

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

22

Baffle Plate

404105900

Unavailable

23

Seat Washer

404101600

$3.21

24

Needle Valve 1.5

404147400

$43.25

25

Guide Screw

404105500

$32.06

26

Main Jet MJ 320 (PTO) | Grand Touring 500.

404101300

$7.90

27

PLATE - Call your local BRP dealership

404103000

Unavailable

28

Screw With Lock Washer

404102000

$3.19

29

Hose | Grand Touring SE.

404109800

Unavailable

30

Nipple

404153400

$11.16

31

Fuel Pump

403900900

Unavailable

32

Gasket

404901900

Unavailable

33

PACKING - Call your local BRP dealership

404900000

Unavailable

34

Screw

404900500

Unavailable

35

Packing

404900400

Unavailable

36

Gasket

404902000

Unavailable

37

Diaphragm

404901500

Unavailable

38

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

39

High Altitude Kit, (Not Shown)

861750600

Unavailable
