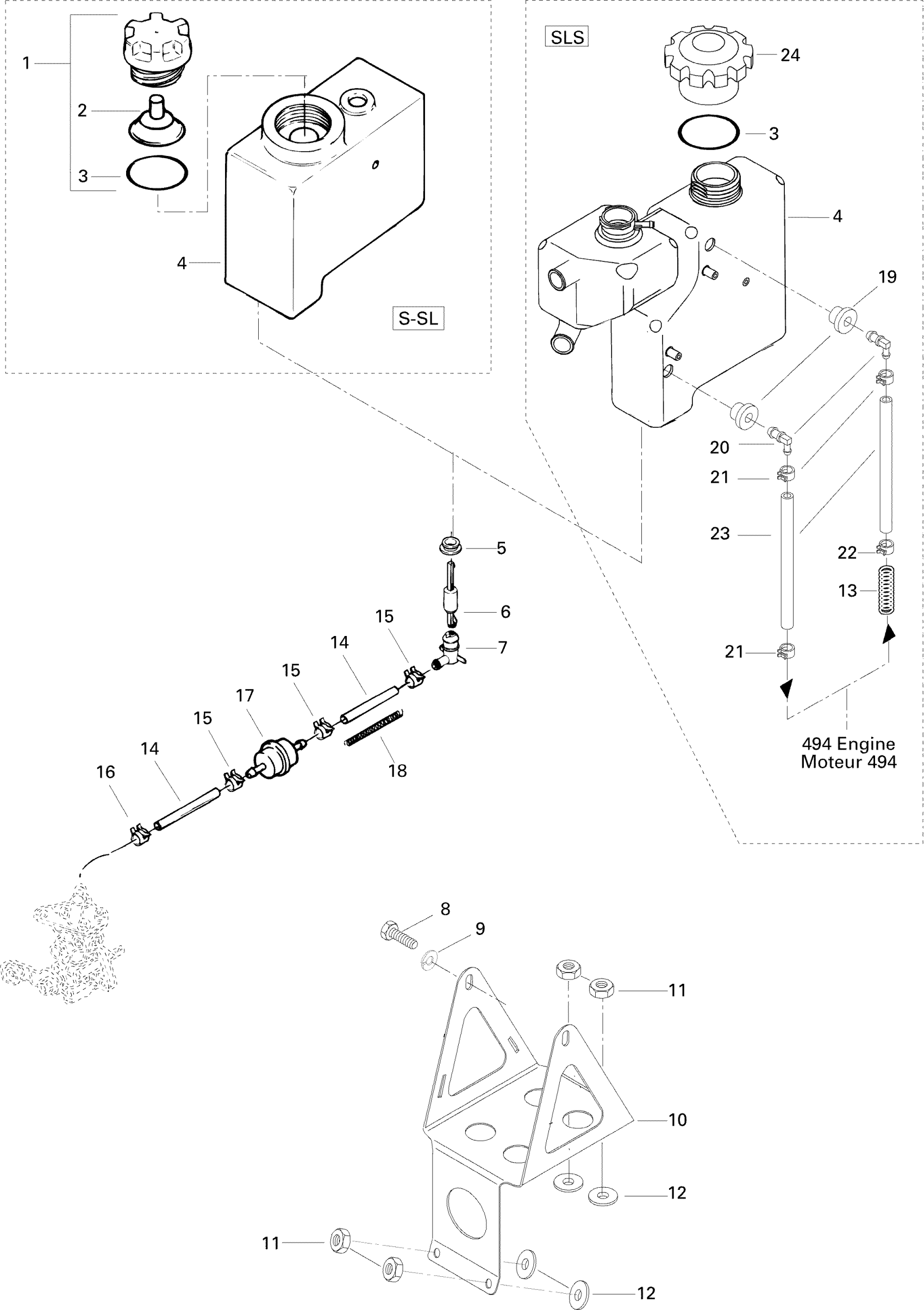

Ski-Doo Formula SLS, 1996 Oil Tank And Support Formula SLS Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Not Available As Spare Parts

XXX

Unavailable

3

O-Ring | Package-4X4

414536600

$2.06

4

Coolant Tank

572076900

Unavailable

5

Insulating Ring

570023000

Unavailable

6

Float

414681900

Unavailable

7

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

8

HEX. SCREW M6 X 12 - Call your local BRP dealership

207161244

Unavailable

9

Lock Washer M6, Black

234161471

$0.52

10

Oil Reservoir Support

517278900

Unavailable

11

Elastic Stop Nut M6

232561414

Unavailable

12

Rubber Spacer

414454400

$2.40

13

Spring

414287500

Unavailable

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

15

Spring Clamp

414415200

$0.83

16

Spring Clamp

414420700

Unavailable

17

Filter

414536500

$3.25

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Grommet | Europe

707800347

Unavailable

20

Elbow Fitting

414523600

$3.99

21

Spring Clamp

414655700

Unavailable

22

SPRING CLIP - Call your local BRP dealership

408801100

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

CAP - Call your local BRP dealership

519000044

Unavailable
