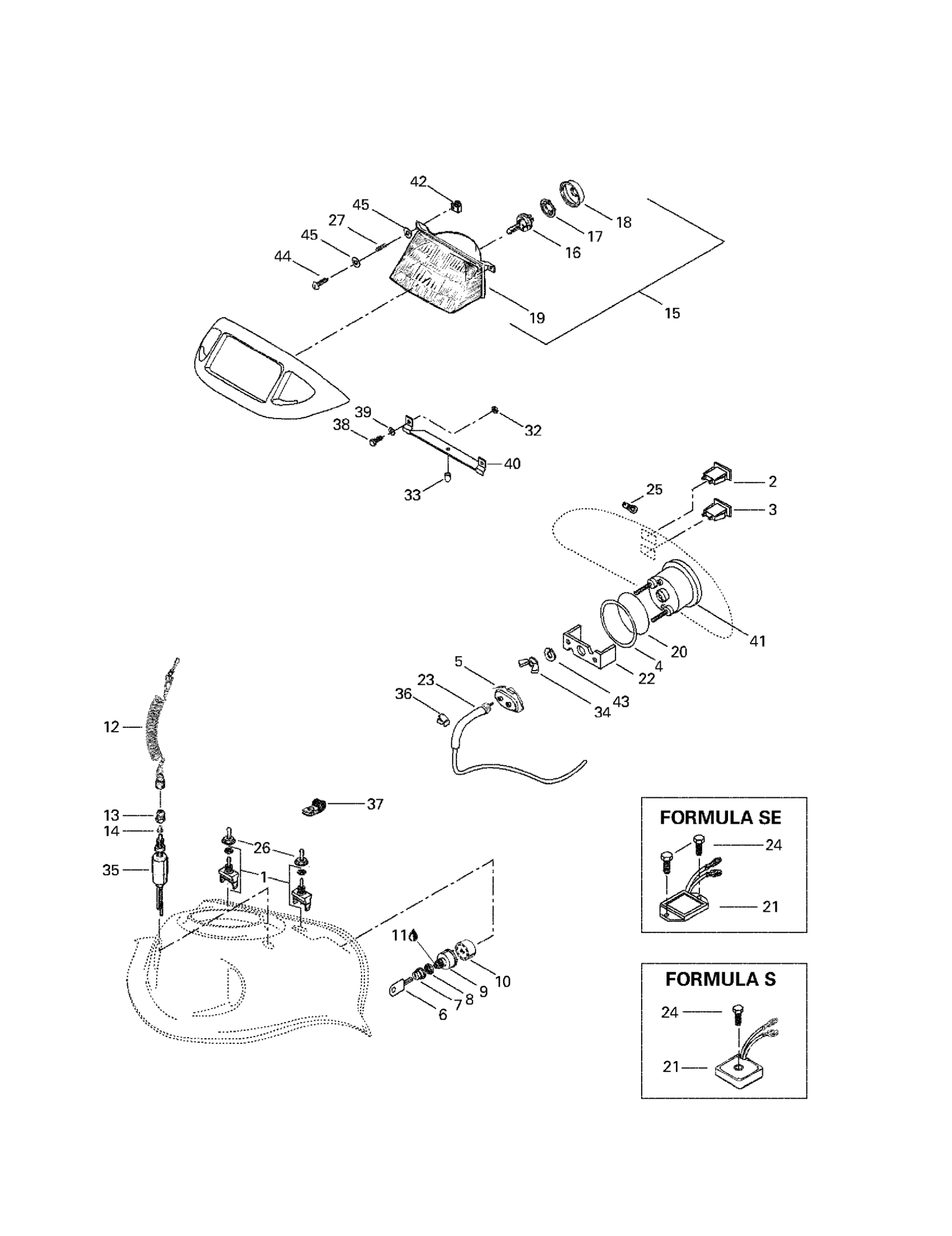

Ski-Doo Formula S Electric, 1998 10- Electrical System Diagram
#
Description
Price
2
Pilot Lamp (Red)
410109500
Unavailable
3
Pilot Lamp (Blue)
410109600
Unavailable
4
Plate | Formula S.
414187300
Unavailable
5
Drive Angle | Formula S.
572022300
Unavailable
8
FACE NUT - Call your local BRP dealership
410112100
Unavailable
9
IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.
410111200
Unavailable
IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.
410111300
Unavailable
10
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
11
Dielectric Grease, 150 g This part replaces 413701700.
293550004
Unavailable
15
Headlamp | Includes 42 to 45
410609100
Unavailable
17
BULB HOLDER - Call your local BRP dealership
410608300
Unavailable
18
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
19
Headlamp
410608900
Unavailable
20
O-Ring | Formula S.
414187200
Unavailable
21
VOLTAGE REGULATOR - Call your local BRP dealership
515163800
Unavailable
VOLTAGE REGULATOR - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).
515163900
Unavailable
22
Case Holder | Formula S.
414187400
Unavailable
23
Speedometer Cable
414761400
Unavailable
24
Hex. Screw M6 x 35
732600016
Unavailable
25
INSTRUMENTATION BULB - Call your local BRP dealership
410504200
Unavailable
29
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
30
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
31
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
33
RUBBER STOPPER - Call your local BRP dealership
410608200
Unavailable
34
Wing Nut M5
414070300
Unavailable
39
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
40
Headlamp Support
517218500
Unavailable
41
Speedometer (KMH) | Formula S.
415096900
Unavailable
42
Projector Nut
572078600
Unavailable
44
Screw M4 x 40
732603002
Unavailable
