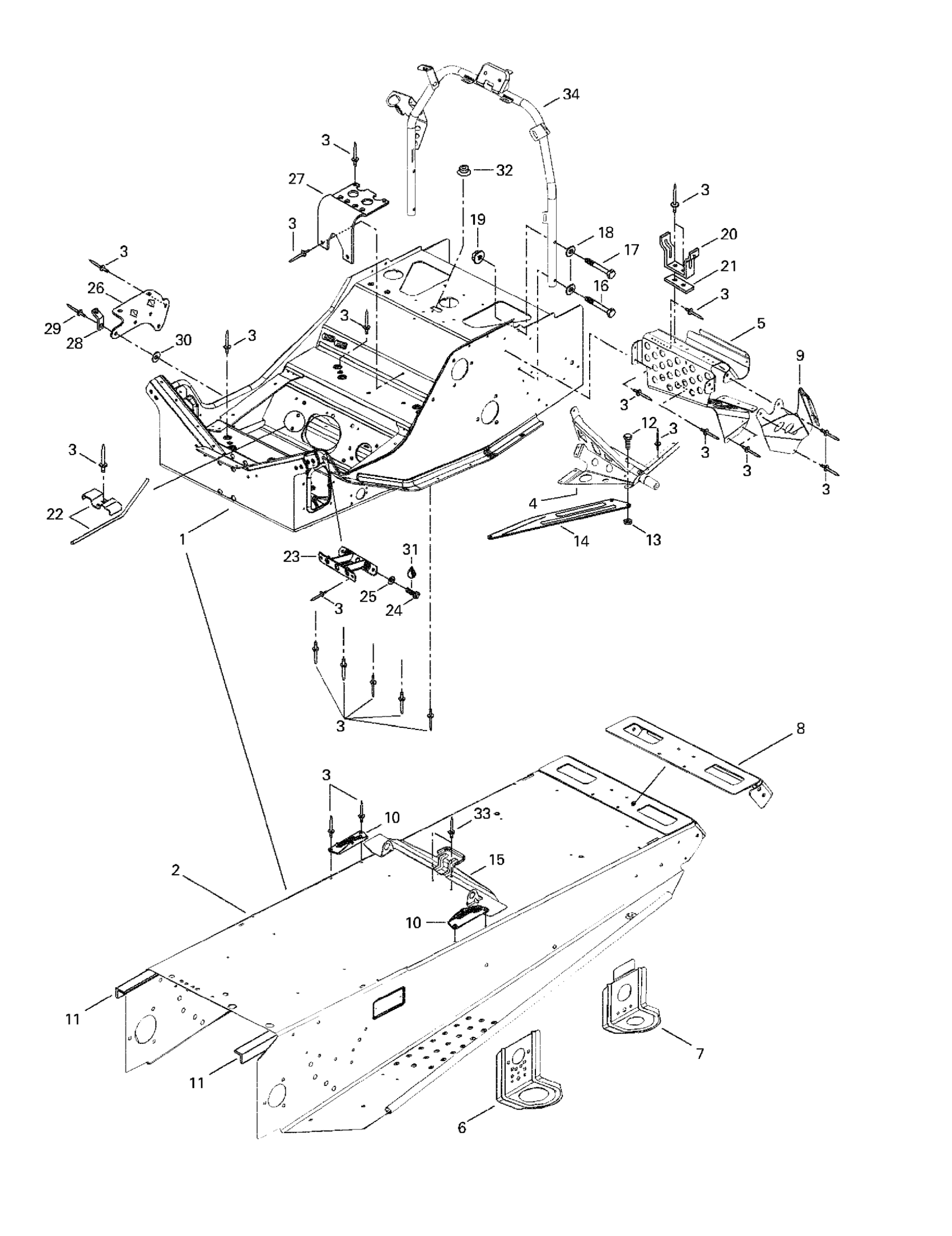

Ski-Doo Formula S Electric, 1998 09- Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 15.

518318742

Unavailable

2

Tunnel

518318845

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

RH Support

518320503

Unavailable

5

RH Front Footrest

518313804

Unavailable

LH Front Footrest

518313805

Unavailable

6

Front Bracket

518312910

Unavailable

7

Rear Bracket

518308704

Unavailable

8

Cap-End

518317541

Unavailable

9

Upper Plate L.H

518308714

Unavailable

Upper Plate R.H

518308715

Unavailable

10

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

11

LH Tunnel Reinforcement

518316713

Unavailable

RH Tunnel Reinforcement

518316714

Unavailable

12

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

RH Reinforcement Plate

518316709

Unavailable

LH Reinforcement. Plate

518316710

Unavailable

15

Seat Bracket

518317506

Unavailable

16

Hex. Screw M6 X 40

207064044

$1.48

17

Hex. Flange Screw M6 X 35

207063544

$1.37

18

Flat Washer 6 mm

234061410

$1.36

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Belt Guard Bracket

518202100

$17.49

21

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

22

Guide Rope

517276100

Unavailable

23

Reinf. Plate

518304741

Unavailable

24

Hex. Screw M8 X 20

207182044

$0.74

25

Lock Washer 8 mm

234181401

$0.92

26

Muffler Support

518316704

Unavailable

27

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

28

Spring Bracket

514054522

$8.45

29

Pop Rivet 3/16"

390402300

$0.75

30

Flat Washer

517225900

$0.18

31

Loctite 271, 10 ml

293800005

$26.99

32

CAP - Call your local BRP dealership

414859400

Unavailable

33

Pop Rivet 3/16"

390402400

$0.35

34

Handle Steering Support

518309200

Unavailable
