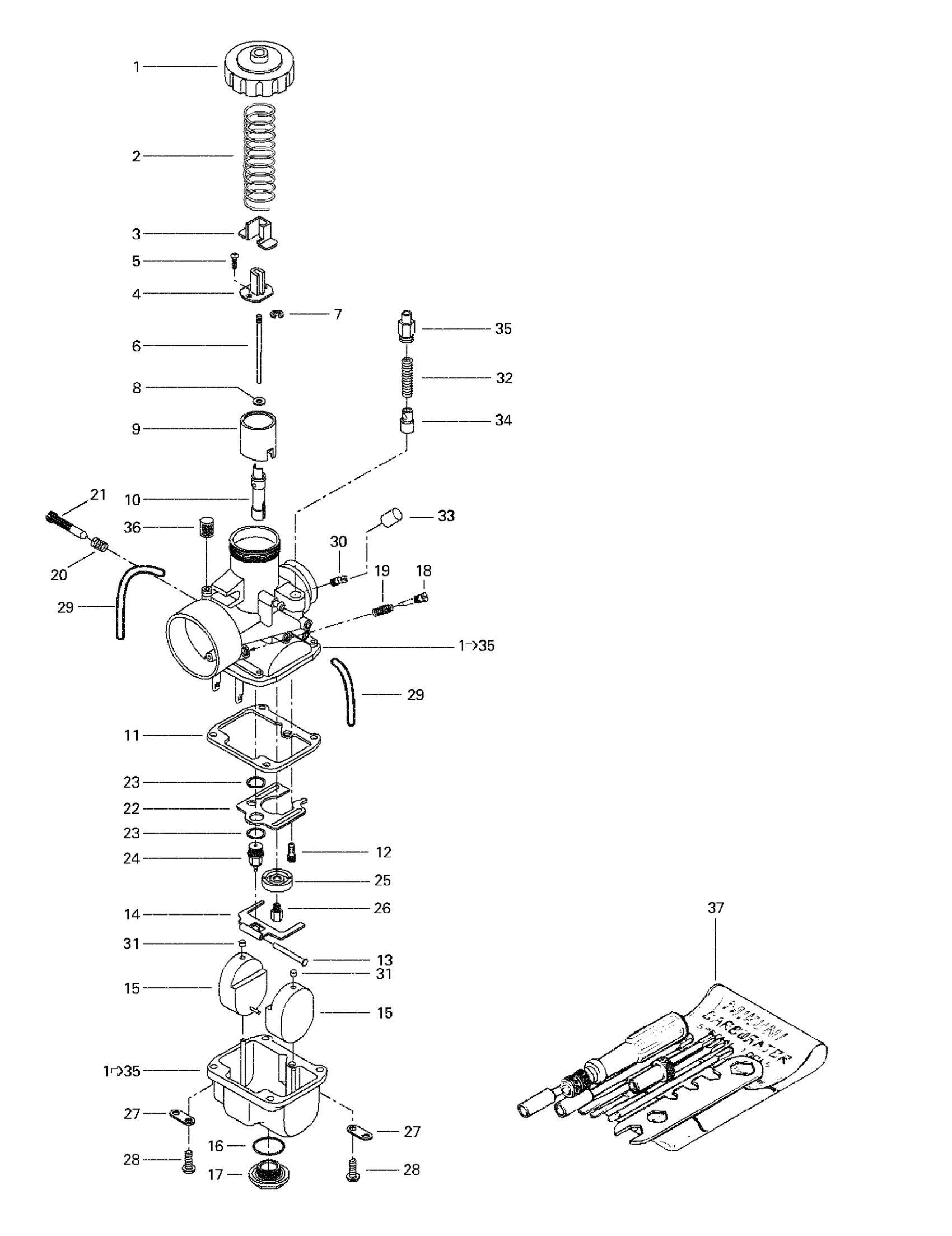

Ski-Doo Formula S Electric, 1998 02- Carburetors Diagram

Carburetor VM 30-193 | Includes 1 - 35.

403133900

Unavailable

Cover

404103700

$31.99

Spring

404154800

$23.99

Cover

404122100

$19.49

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

Screw With Washer

404121300

$4.14

Needle JN 6DP9-3

404152600

Unavailable

E-Ring

404152400

$7.27

Packing

404117000

$3.29

Piston Valve 2.5

404128400

$127.49

NEEDLE JET - Call your local BRP dealership

404107000

Unavailable

Gasket | Includes 1900a to 1900am

404104200

$6.38

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

Lever Pin

404103300

$6.27

Float Lever

404107600

$22.99

FLOAT - Call your local BRP dealership

404107100

Unavailable

O-Ring

404107300

$9.06

Drain Plug Screw

404107400

$22.99

Air Screw

404102300

$14.35

Spring

404101800

$4.25

Spring

404101700

$4.14

Idle Speed Screw

404109700

$19.49

BAFFLE - Call your local BRP dealership

404109600

Unavailable

Seat Washer

404101600

$3.29

Needle Valve 1.5

404103200

$31.99

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

Main Jet MJ 140

404126600

$8.36

PLATE - Call your local BRP dealership

404103000

Unavailable

Screw With Lock Washer

404102000

$3.18

Hose | Grand Touring SE.

404109800

Unavailable

Nipple

404153400

$12.16

Cap

404105800

$6.38

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

Cap

404156600

$17.08

Plunger Ass'y | Formula Deluxe 380.

404127500

Unavailable

Support Guide

404161200

Unavailable

Filter | Formula Deluxe 380.

404158900

Unavailable

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

High Altitude Kit (Not Shown)

861762000

Unavailable
