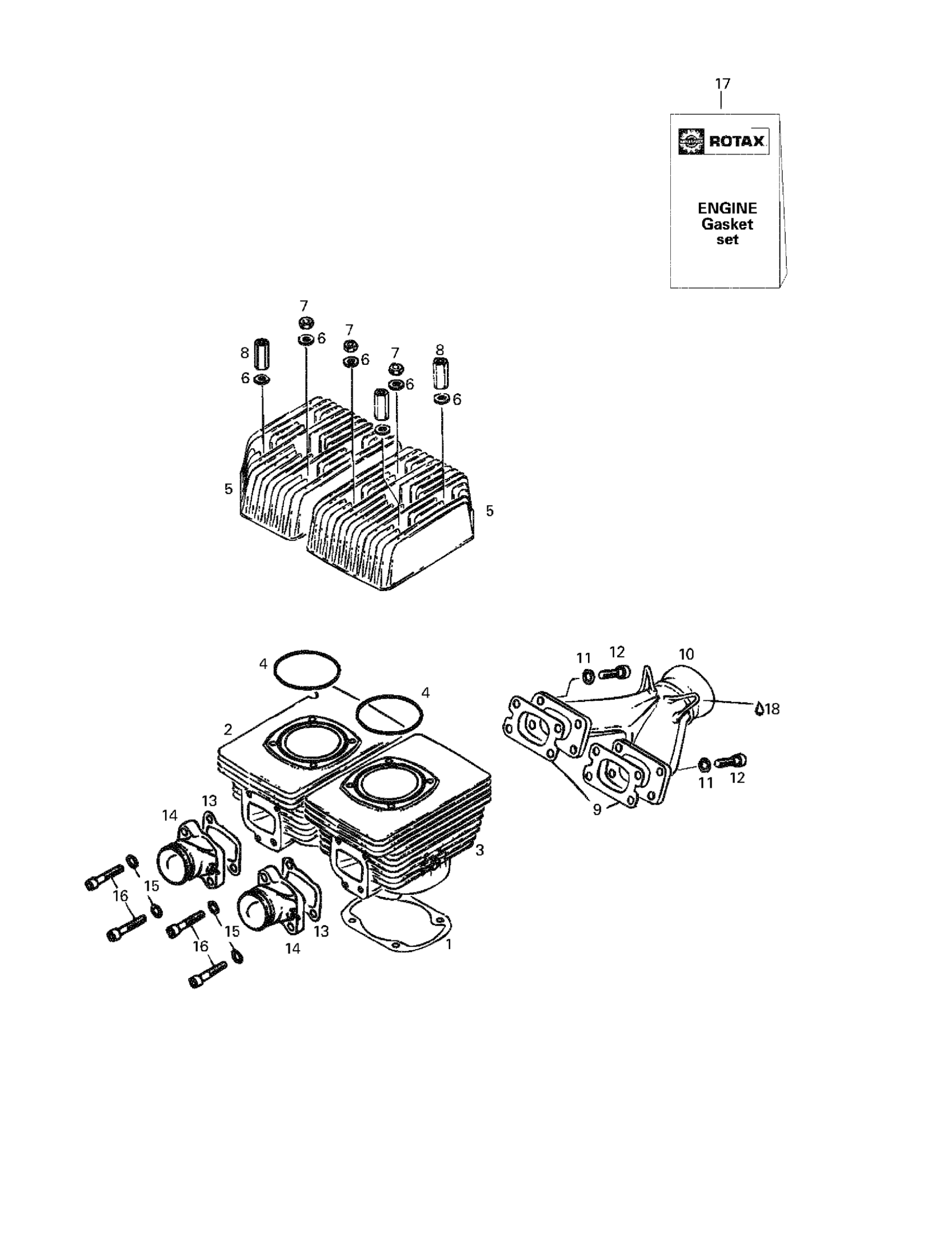

Ski-Doo Formula S Electric, 1998 01- Cylinder, Intake Exhaust Manifold Diagram

#

Description
Price

1

GASKET 0.4 - Call your local BRP dealership

420430351

Unavailable

2

Cylinder with Sleeve, PTO

420923400

Unavailable

3

Cylinder with Sleeve, MAG

420923405

Unavailable

4

O-Ring

420931380

$12.70

5

Cylinder Head

420823823

Unavailable

6

Flat Washer 8.4 mm

420250315

$1.15

7

Hex. Nut M8

232081414

$0.72

8

Distance Nut M8

420842385

Unavailable

9

GASKET - Call your local BRP dealership

420850114

Unavailable

10

Exhaust Manifold Ass'y

420978437

Unavailable

11

Lock Washer 8 mm

234181401

$0.92

12

Socket Head Screw M8 X 30

205083044

$1.15

13

INTAKE GASKET 1.0 MM - Call your local BRP dealership

420831867

Unavailable

14

INTAKE SOCKET ASS?Y - Call your local BRP dealership

420867408

Unavailable

15

Washer-Lock Din.128

420945832

$1.15

16

Screw M8 X 35

420841591

$2.96

17

GASKET SET, ENGINE - Call your local BRP dealership

420994232

Unavailable

O-Ring, 64 mm X 2 mm

293300022

$12.72

Oil Seal This part replaces 290831952.

420831952

$18.01

GASKET 0.4 - Call your local BRP dealership

420430351

Unavailable

GASKET - Call your local BRP dealership

420850114

Unavailable

O-Ring

420931380

$12.70

INTAKE GASKET 1.0 MM - Call your local BRP dealership

420831867

Unavailable

18

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99
