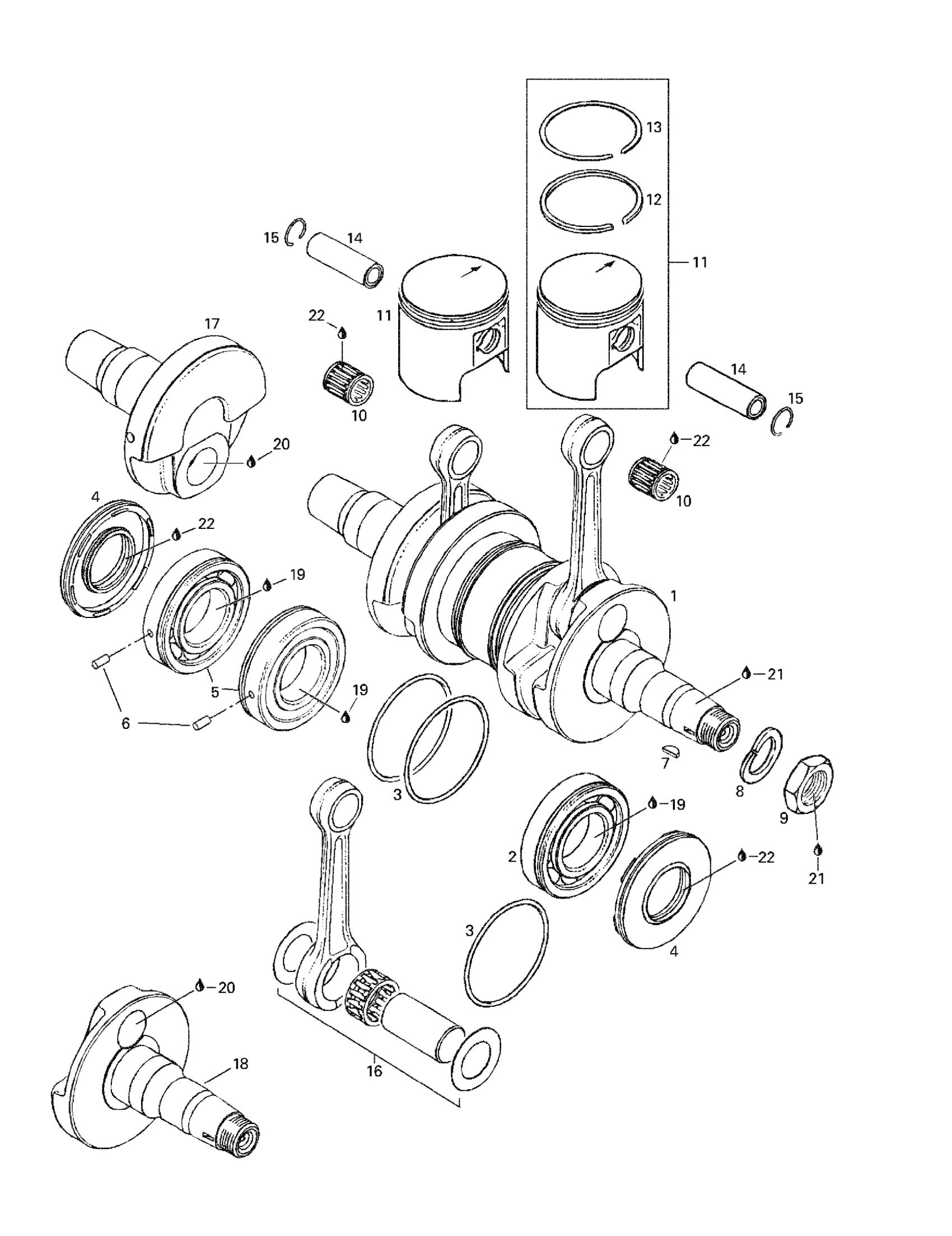

Ski-Doo Formula S Electric, 1998 01- Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 7.

420887247

Unavailable

2

Bearing_Ball This part replaces 290832231.

420832584

$41.49

3

O-Ring, 64 mm X 2 mm

293300022

$12.72

4

Oil Seal This part replaces 290831952.

420831952

$18.01

5

Ball Bearing

420832573

$44.49

6

Dowel Pin

420929972

Unavailable

7

Woodruff Key

420246055

$2.43

8

Lock Washer, 22 mm

420945759

$1.90

9

Hex. Nut, M22 X 1.5

420842239

$17.53

10

Needle Bearing

420932904

$15.89

11

Piston Ass'y 61.94 mm | Includes 11 - 13. Formula S.

420887470

Unavailable

Oversize Piston Ass'y 62.19 mm | Formula DLX 380.

420887471

Unavailable

Oversize Piston Ass'y 62.44 mm | Formula DLX 380.

420887472

Unavailable

12

Rectangular Ring 62.0 mm | Formula S.

420915890

Unavailable

Rectangular Ring 62.25 mm | Formula DLX 380.

420915891

Unavailable

Rectangular Ring 62.5 mm | Formula DLX 380.

420915892

Unavailable

13

Semi-Trapez Ring 62.0 mm | Formula S.

420215210

Unavailable

Semi-Trapez Ring 62.25 mm | Formula S.

420215211

Unavailable

Semi-Trapez Ring 62.5 mm | Formula DLX 380.

420215212

Unavailable

14

GUDGEON PIN - Call your local BRP dealership

420916260

Unavailable

15

Piston Circlip

420945735

$4.46

16

Rod repair kit

420996334

Unavailable

17

Crankshaft half PTO

420818203

Unavailable

18

MAG SIDE HALF-CRANK - Call your local BRP dealership

420819010

Unavailable

19

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

20

Sealant Loctite 648

219703000

$45.99

21

Loctite 243, 10 ml

293800060

$21.49

22

Dow Corning 111, 150 g

413707000

$59.99
