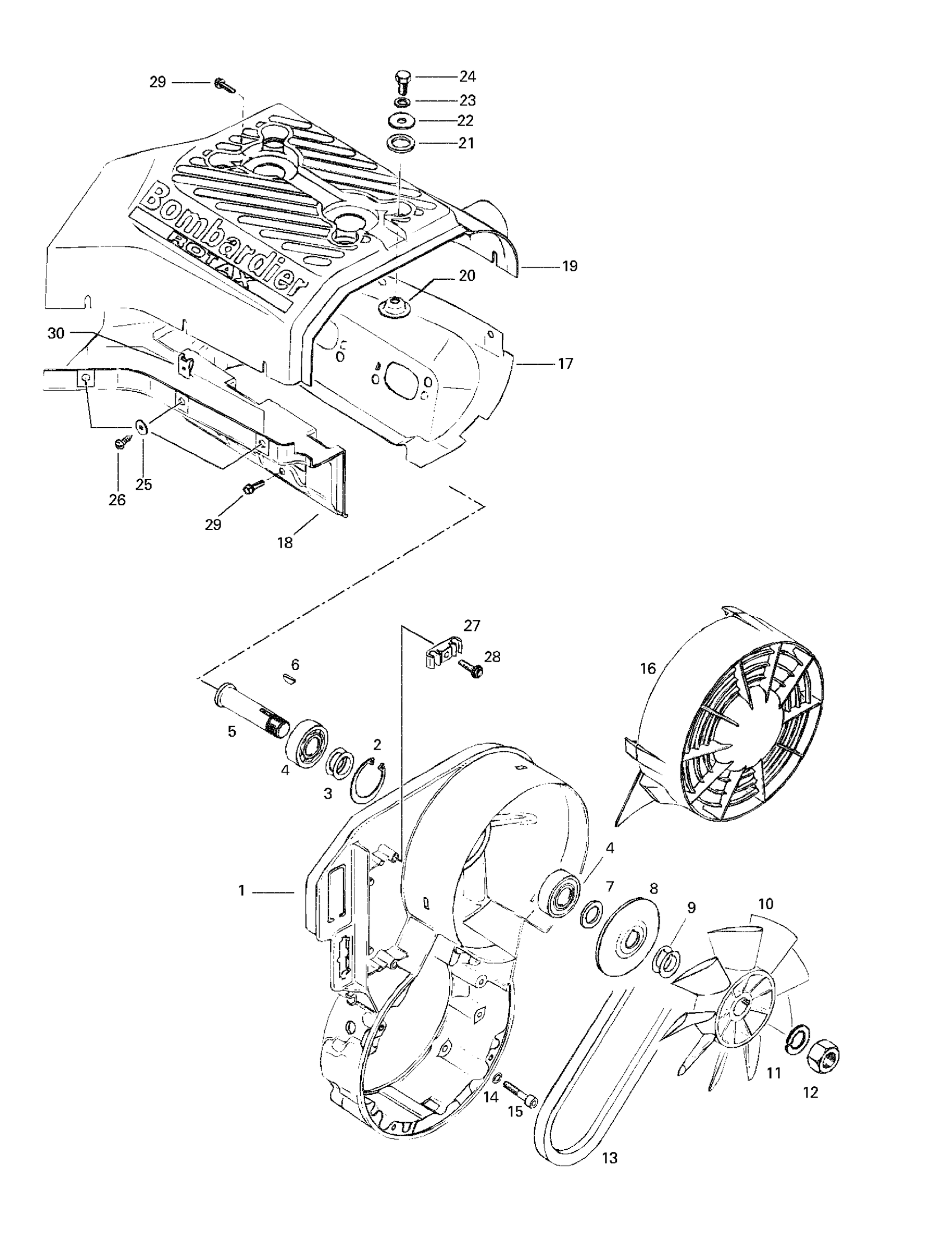

Ski-Doo Formula S Electric, 1998 01- Cooling System Fan Diagram

#

Description
Price

1

Fan Housing | Formula S.

420811260

Unavailable

2

Lock Ring

420945880

$4.44

3

Shim

420244585

$1.90

4

Ball Bearing

420832161

$35.99

5

Fan Axle This part replaces 420937940.

420937941

$14.28

6

Woodruff Key

420246015

$3.17

7

Spacer Bushing

420827650

$13.16

8

Flange

420980496

$14.28

9

Shim 0.5 mm

420827080

$2.11

Shim 0.2 mm

420827082

$3.17

10

Fan

420866295

Unavailable

11

Lock Washer

420945756

$3.17

12

Nut M16 This part replaces 420942285.

420942289

$10.33

13

V-Belt | 380 F.

414630700

$24.99

14

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

15

Socket Head Screw M6 X 30

205063044

$1.69

16

Fan Cover

420975740

Unavailable

17

Cylinder Cowl (Exhaust Side) | Formula Deluxe 380.

420810552

Unavailable

18

Cylinder Cowl (Carburator Side) | Formula Deluxe 380.

420810795

Unavailable

19

Cylinder Cowl Ass'y

420810607

Unavailable

20

Cup Washer

420827817

$14.28

21

Rubber Washer

420960865

$2.11

22

Washer This part replaces 420227935.

420227936

$3.38

23

Washer-Lock Din.128

420945832

$1.15

24

Hex. Screw M8 x 16

207181644

$1.15

25

FLAT WASHER - Call your local BRP dealership

420926180

Unavailable

26

Tapping Screw M4.8 X 16

417300006

$0.72

27

CLAMP - Call your local BRP dealership

420860940

Unavailable

28

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Spring Nut

420842390

$1.90
