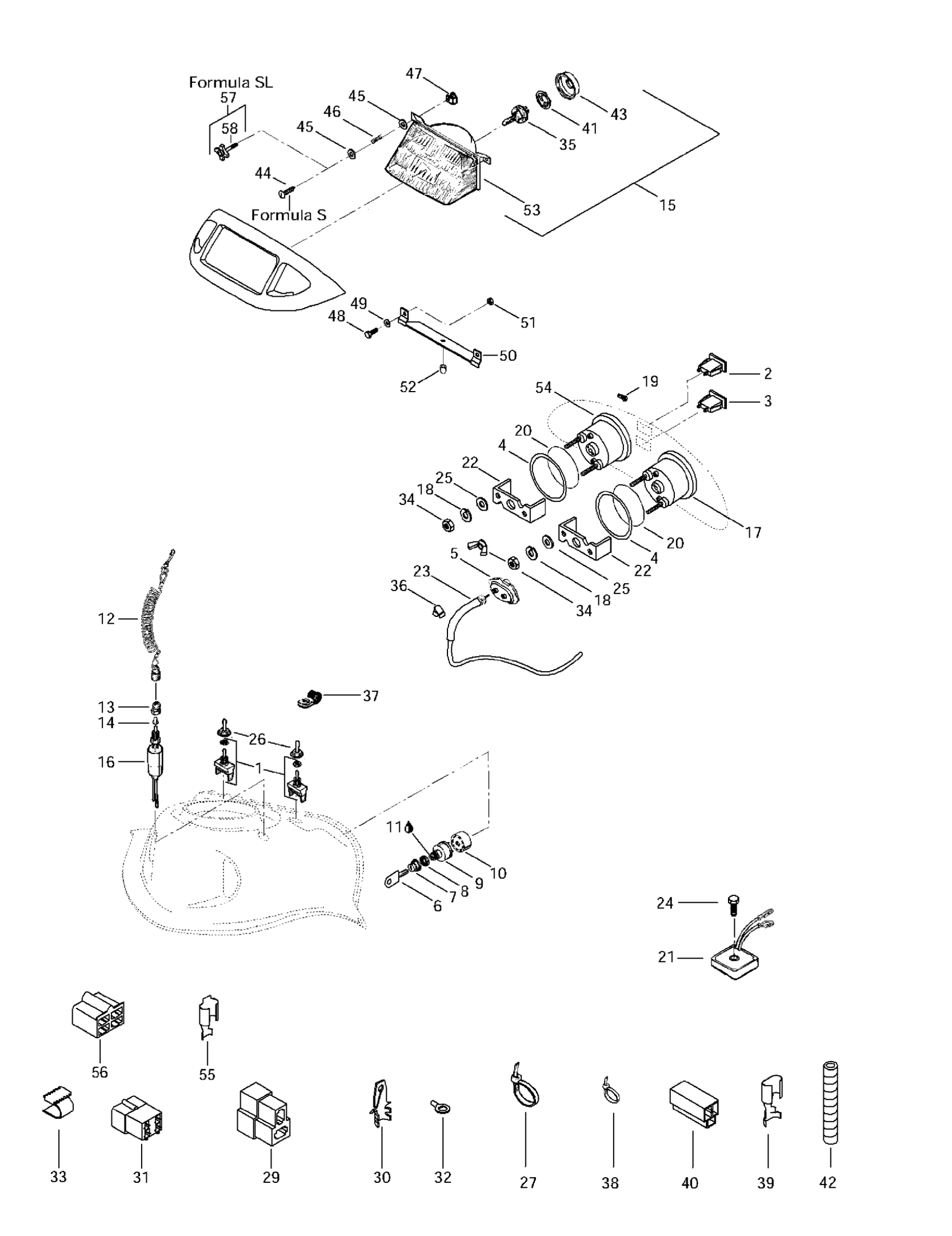

Ski-Doo Formula S, 1997 10- Electrical System Diagram

#

Description
Price

1

Switch (Heating Grip) | FREERIDE

410107300

$35.99

2

Pilot Lamp (Red)

410109500

Unavailable

3

Pilot Lamp (Blue)

410109600

Unavailable

4

Plate | Formula S.

414187300

Unavailable

Washer

517258500

Unavailable

5

Drive Angle | Formula S.

572022300

Unavailable

6

Blank Key

415129350

$26.49

7

Switch Boot

570013700

$11.49

8

FACE NUT - Call your local BRP dealership

410112100

Unavailable

9

IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.

410111200

Unavailable

10

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

11

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

12

Cap Ass'y

515178283

$38.99

13

Switch Nut

515145900

$12.12

14

Plunger Cap

570151100

$9.85

15

HEADLAMP ASS'Y - Call your local BRP dealership | Includes 1 - 1E.

410608800

Unavailable

16

Brake Switch

515175653

$19.49

17

Speedometer (Europe) | Tundra R.

414682000

Unavailable

Speedometer (KMH) | Formula 500. Formula 500 Deluxe. Formula 583.

414806200

Unavailable

Speedometer (MH) | Formula 500. Formula 500 Deluxe. Formula 583.

414806100

Unavailable

18

Lock Washer

414806700

Unavailable

Lock washer | Quest XT 650.

250200026

$1.90

19

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

20

O-Ring | Formula S.

414187200

Unavailable

O-Ring

414807100

Unavailable

21

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

22

Case Holder | Formula S.

414187400

Unavailable

Case Holder

414806500

Unavailable

23

Speedometer Cable

414761400

Unavailable

24

Hex. Screw M6 x 35

732600016

Unavailable

25

Flat Washer

517225900

$0.18

26

Switch Cover

515175281

$15.99

27

Tie-Rap 180 mm

414115200

$0.11

28

Resistance

515175241

$17.99

29

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

31

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

32

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

33

CLIP - Call your local BRP dealership | Europe Models

409205600

Unavailable

34

Nut

414806900

Unavailable

Wing Nut M5

414070300

Unavailable

35

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

36

Clip

414227300

$1.67

37

Open Clamp

414176000

$1.99

38

Tie Wrap 94 mm | 4X4

293750001

$1.03

39

Female Terminal

561503100

$2.41

40

Female Housing

409204300

Unavailable

41

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

42

Was 409901800 Tubing (13 mm)

219704400

$14.49

43

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

44

Screw M4 x 40

732603002

Unavailable

45

Flat Washer M5

234051410

$0.53

46

Spring

517168600

$7.39

47

Projector Nut

572078600

Unavailable

48

Hex. Screw M5 X 12

207151244

$0.90

49

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

50

Headlamp Support

517218500

Unavailable

51

Elastic Stop Nut M5

232551414

$0.87

52

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

53

Headlamp

410608900

Unavailable

54

Tachometer | Formula 500. Formula 500 Deluxe. Formula 583.

414807400

Unavailable

55

Female Terminal PACKARD

561503200

Unavailable

56

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

57

Adjuster Screw Ass'y | Includes 44 - 45.

415006100

Unavailable

58

Screw M4 x 40

732603004

Unavailable
