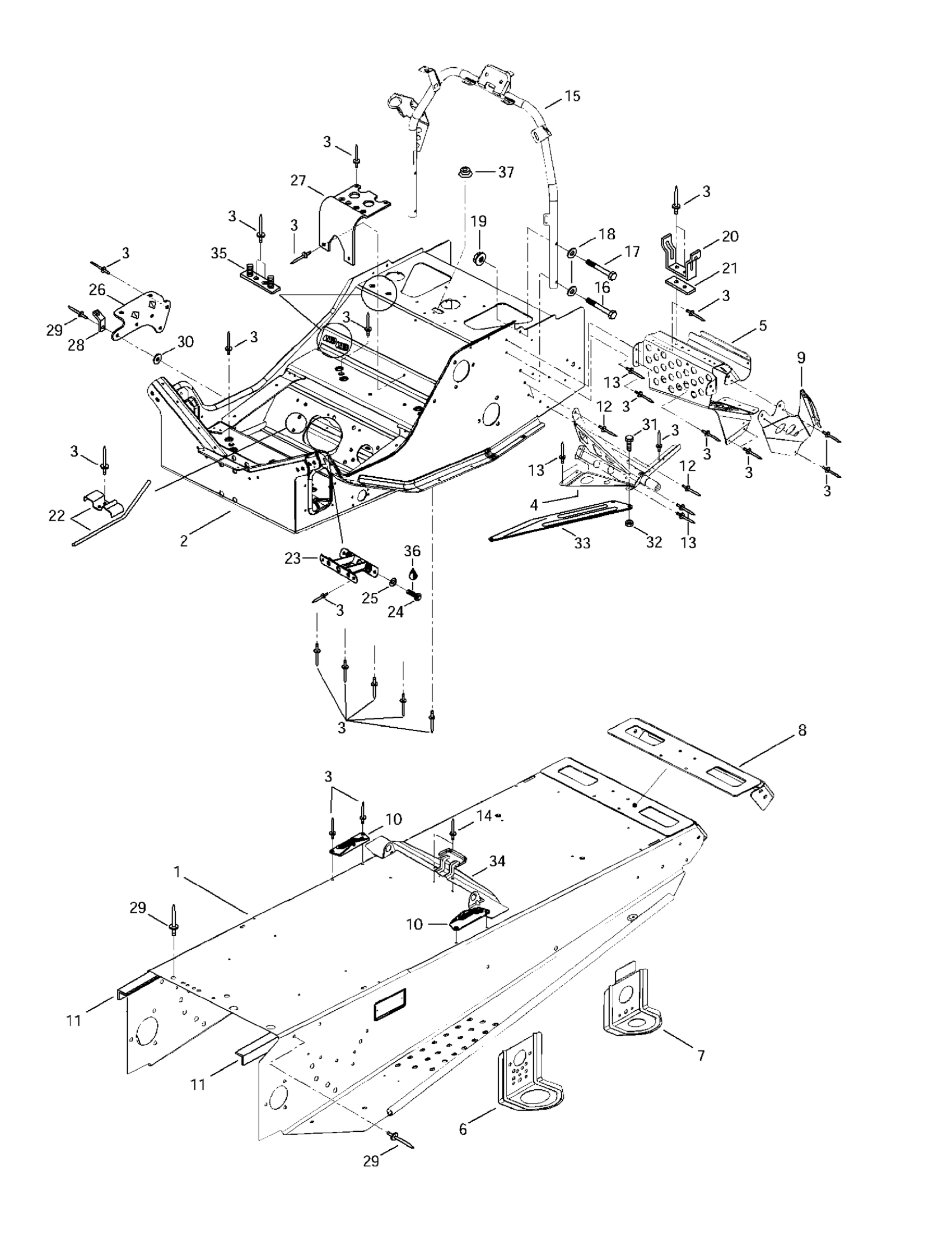

Ski-Doo Formula S, 1997 09- Frame And Accessories Diagram

Tunnel

518316843

Unavailable

Front Member

518316240

Unavailable

Pop Rivet 3/16"

390402200

$0.35

LH Support

518316702

Unavailable

RH Support

518316703

Unavailable

RH Front Footrest

518313804

Unavailable

LH Front Footrest

518313805

Unavailable

Front Bracket

518312910

Unavailable

Rear Bracket

518308704

Unavailable

Cap-End

518310211

Unavailable

Upper Plate L.H

518308714

Unavailable

Upper Plate R.H

518308715

Unavailable

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

LH Tunnel Reinforcement

518316713

Unavailable

RH Tunnel Reinforcement

518316714

Unavailable

Avex Rivet

390909200

$0.30

Avex Rivet

390909100

$0.30

Pop Rivet 3/16"

390402400

$0.35

Handle Steering Support

518309200

Unavailable

Hex. Screw M6 X 40

207064044

$1.48

Hex. Flange Screw M6 X 35

207063544

$1.37

Flat Washer 6 mm

234061410

$1.36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Belt Guard Bracket

518202100

$17.49

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

Guide Rope

517276100

Unavailable

Reinf. Plate

518304741

Unavailable

Hex. Screw M8 X 20

207182044

$0.74

Lock Washer 8 mm

234181401

$0.92

Muffler Support

518316704

Unavailable

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

Spring Bracket

514054522

$8.45

Pop Rivet 3/16"

390402300

$0.75

Flat Washer

517225900

$0.18

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

Hex. Flange Elastic Nut M5

233251414

$1.04

RH Reinforcement Plate

518316709

Unavailable

LH Reinforcement. Plate

518316710

Unavailable

Seat Bracket

518310208

Unavailable

Support Plate

518315300

Unavailable

Loctite 271, 10 ml

293800005

$26.99

CAP - Call your local BRP dealership

414859400

Unavailable
