1997 Ski-Doo Formula S Rear Suspension Diagram

← All diagrams

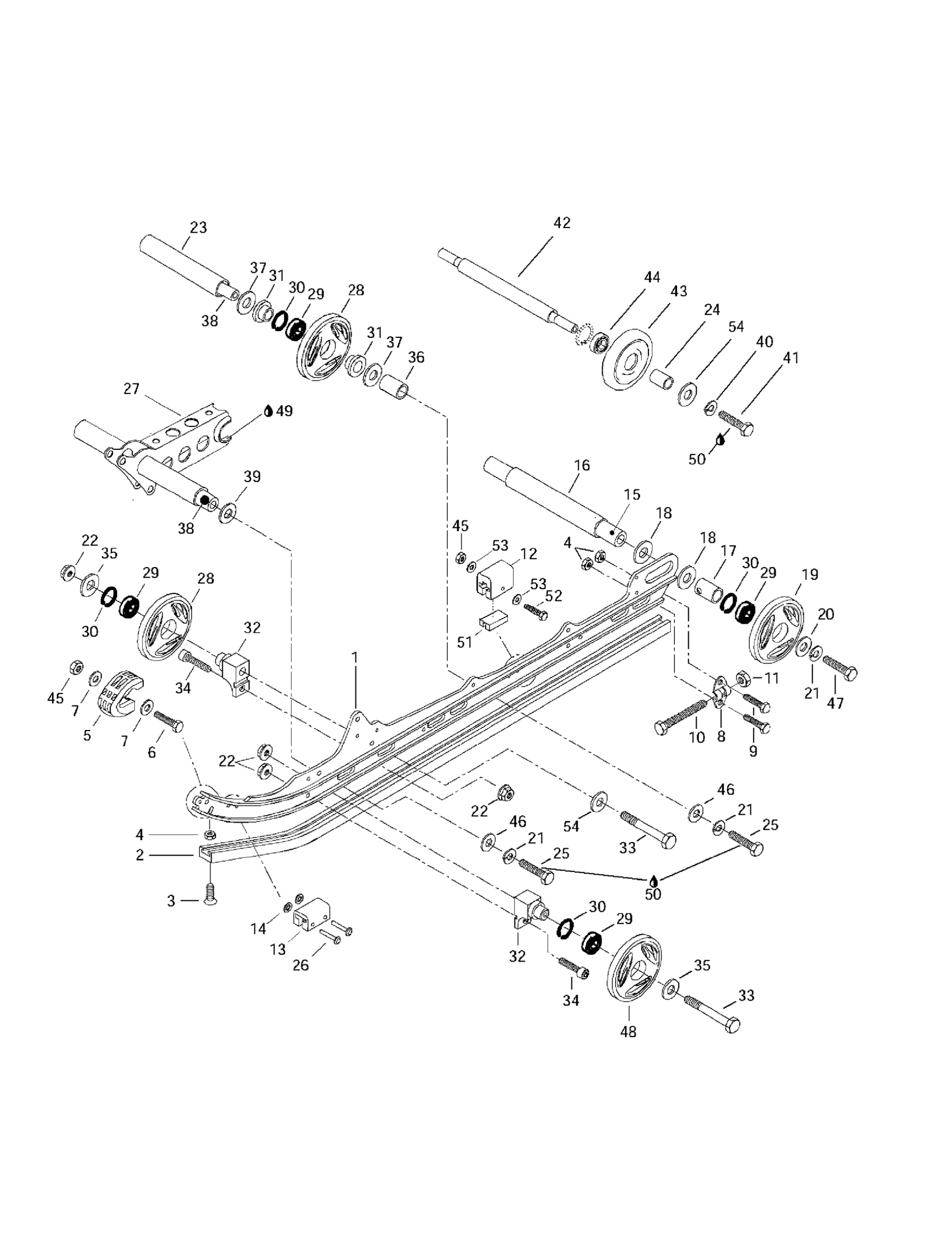

Find the part on the Rear Suspension diagram for your 1997 Ski-Doo Formula S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Ski-Doo Formula S Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Runner 121" | Formula 500. Formula 500 Deluxe. Formula 583.

503166600

—
Out of stock

2

Slide Shoe

605355362

2

$27.66

In stock

3

2

$1.92

In stock

4

Elastic Stop Nut M6

232561414

6
Out of stock

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

—
Out of stock

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

—
Out of stock

7

Washer | DS 650 X

391301600

4
Out of stock

8

Tensioner

503155300

—
Out of stock

9

Hex. Screw M6 X 20 | XT Models

207162044

4
Out of stock

10

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

—
Out of stock

11

Elastic Locking Nut M10 X 1.5

233601416

2
Out of stock

12

Rubber Stopper

570063000

—
Out of stock

13

Rubber Stopper

570048000

—
Out of stock

14

Push Nut

389804300

4
Out of stock

15

REAR AXLE - Call your local BRP dealership

503162400

—
Out of stock

16

Spacer

503155500

—
Out of stock

17

Outer Spacer

503189809

2
Out of stock

18

—

$3.85

In stock

19

Wheel 165 (Red) | Formula 500. Formula 500 Deluxe. Formula 583.

570045323

—
Out of stock

20

Washer

503183300

2
Out of stock

21

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

—
Out of stock

22

Hex. Flange Elastic Nut M8

233281414

8
Out of stock

23

Spacer

503153100

—
Out of stock

24

Spacer

572048300

—
Out of stock

25

4

$1.42

In stock

26

Rivet 3/16 x 1-3/8 | Formula 500. Formula 500 Deluxe. Formula 583.

390908700

—
Out of stock

27

Welded Shock Support

503167500

—
Out of stock

28

Wheel 135 | Includes 18 to 19

503190797

4
Out of stock

29

Ball Bearing

293350115

8
Out of stock

30

CIRCLIP - Call your local BRP dealership

371901700

—
Out of stock

31

Cushion

503189534

4
Out of stock

32

Support | Formula 500. Formula 500 Deluxe. Formula 583.

503163600

—
Out of stock

33

Hex. Screw M8 X 80

207088044

4

$1.58

In stock

34

Socket Head Screw M8 X 25

205082544

4
Out of stock

35

Washer

503183100

4
Out of stock

36

Spacer | Formula 500. Formula 500 Deluxe.

503151000

—
Out of stock

37

WASHER - Call your local BRP dealership

503154000

—
Out of stock

38

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

—
Out of stock

39

Hard Washer | Formula DLX 500 LC.

503007900

—
Out of stock

40

Lock Washer 8 mm

234181401

2
Out of stock

41

Hex. Screw M8 X 30

207183044

2

$0.92

In stock

42

Wheel Support Axle

503153600

—
Out of stock

43

2

$32.28

In stock

44

Ball Bearing

405404600

2

$24.58

In stock

45

Elastic Stop Nut M5

232551414

4
Out of stock

46

Flat Washer 10 mm

234001410

4

$0.98

In stock

47

Hex. Screw With Nylon

250000019

2
Out of stock

48

Idler Wheel 135 (Red) | Formula 500. Formula 500 Deluxe. Formula 583.

570045223

—
Out of stock

49

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

—
Out of stock

50

Loctite 271, 10 ml

293800005

1

$20.77

In stock

51

Reinforcement Stopper

572084800

2
Out of stock

53

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

—
Out of stock

54

Flat Washer 8 mm

234081410

4
Out of stock
