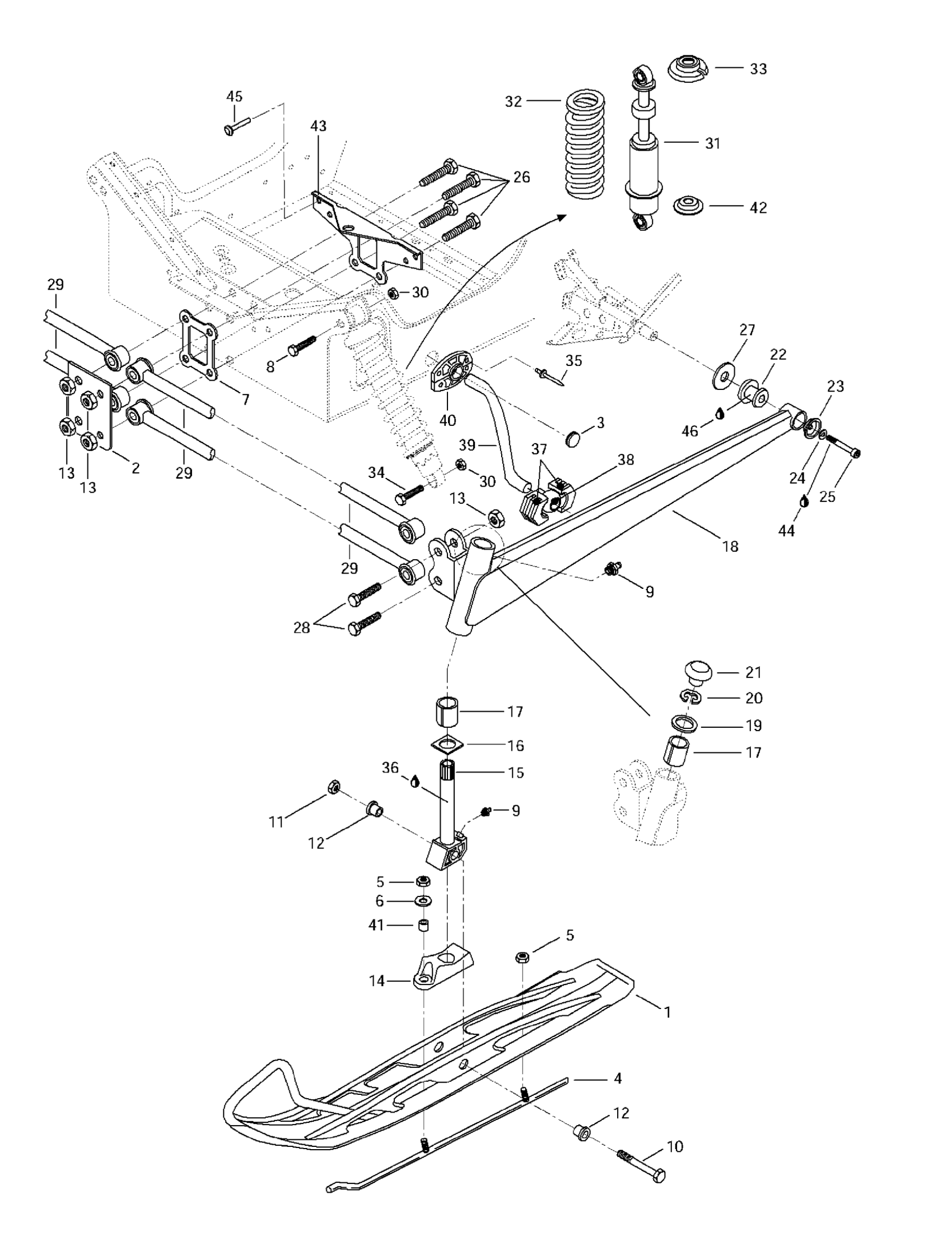

Ski-Doo Formula S, 1997 07- Front Suspension And Ski Diagram
#
1
Ski (Welded) | Formula 500.
505067810
Unavailable
2
Support
518306700
Unavailable
4
Runner | Formula Deluxe 380.
505066102
Unavailable
7
Link Plate
506113000
Unavailable
8
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
10
Hex. Screw M12
732601176
Unavailable
11
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
12
CUSHION - Call your local BRP dealership
414530600
Unavailable
13
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
14
Ski Stopper
570053500
Unavailable
15
Ski Leg
506139200
Unavailable
16
Wear Plate
506081200
Unavailable
17
Cushion
572069900
Unavailable
18
LH Swing Arm | Formula S.
506137610
Unavailable
LH Swing Arm | Formula SL.
506137910
Unavailable
RH Swing Arm | Formula S.
506137510
Unavailable
RH Swing Arm | Formula SL.
506137810
Unavailable
19
Thrust Washer
506080900
Unavailable
20
CIRCLIP - Call your local BRP dealership
371910400
Unavailable
22
DAMPER - Call your local BRP dealership
570062200
Unavailable
26
Hex. Screw M12 x 100
732601113
Unavailable
27
WASHER - Call your local BRP dealership
503146700
Unavailable
28
Hex. Screw M12 x 50
222025075
Unavailable
29
Arm Ass'y | Formula S.
580623100
Unavailable
Arm Ass'y | Formula SL.
580643800
Unavailable
31
Front Shock
415035400
Unavailable
32
Spring (Red)
414976100
Unavailable
36
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
37
Block Sliding
572069800
Unavailable
38
Ball Joint
506127300
Unavailable
39
Stabilisator
506134100
Unavailable
40
Half-Bushing | Formula Deluxe 500.
572077600
Unavailable
41
BUSHING - Call your local BRP dealership
506117300
Unavailable
42
GUIDE_SPRING - Call your local BRP dealership
503165100
Unavailable
43
Rear Link Plate
517254900
Unavailable
