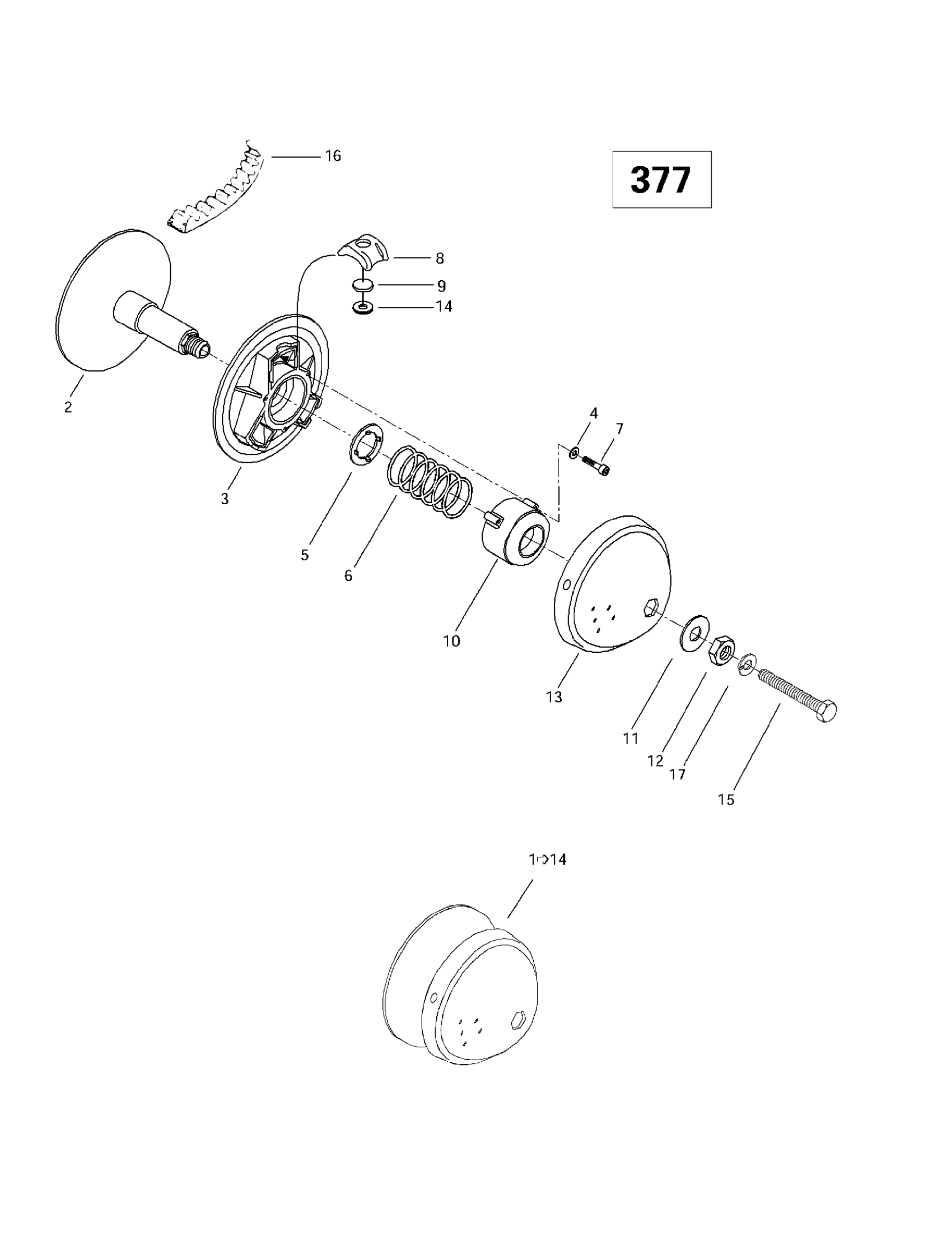

Ski-Doo Formula S, 1997 05- Pulleys (377) Diagram
#
Description
Price
1
Drive Pulley Ass'y | Includes 1 - 14. Formula S.
417215200
Unavailable
2
Inner Flange
417121200
Unavailable
3
Outer Sliding Flange | Formula S. Formula DLX 380.
417121300
Unavailable
4
WASHER - Call your local BRP dealership
420245370
Unavailable
5
Guide Washer | 380 F.
417116200
Unavailable
6
Spring (Red/Blue)
417118400
Unavailable
7
Allen Screw M6 x 40
222964066
Unavailable
8
CENTRIFUGE BLOCK - Call your local BRP dealership | CDN, USA
417118100
Unavailable
9
ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA
417120400
Unavailable
10
Spring Cover
417121400
Unavailable
11
Washer
417122400
Unavailable
12
NUT - Call your local BRP dealership
417118300
Unavailable
13
Cap | Formula S.
417121500
Unavailable
14
CAPSULE - Call your local BRP dealership | CDN, USA
417114500
Unavailable
15
BOLT - Call your local BRP dealership
417113800
Unavailable
17
WASHER-LOCK HELICAL SPRING - Call your local BRP dealership
392002800
Unavailable
18
High Altitude Kit(Not Shown) | Formula S.
861756700
Unavailable
