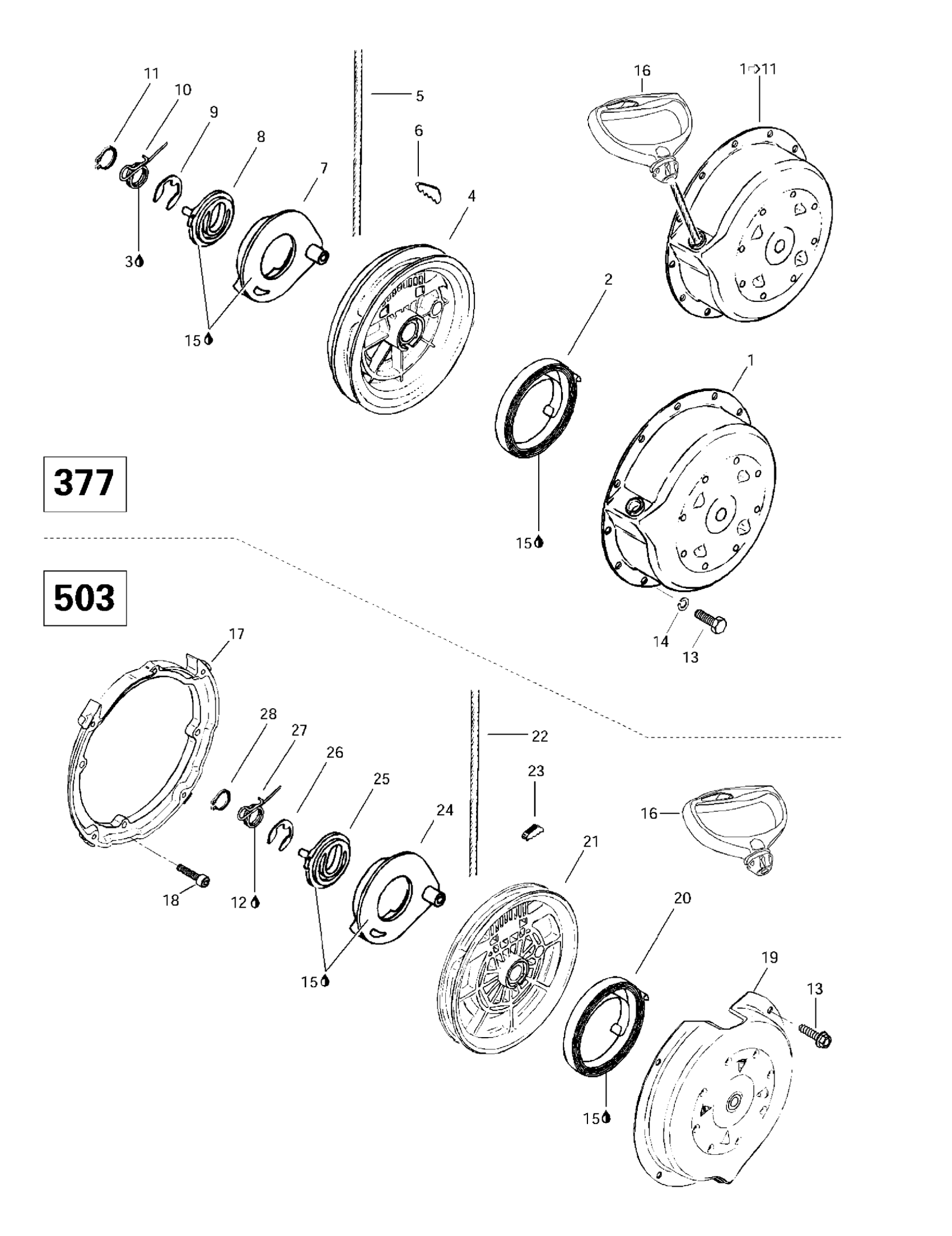

Ski-Doo Formula S, 1997 04- Rewind Starter Diagram

#

Description
Price

1

Rewind Starter Ass'y | Includes 1 - 11.

420996939

Unavailable

1

Starter Housing

420910068

Unavailable

2

Rewind Spring

420939115

$30.49

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Rope Sheave

420852283

$62.49

5

Was 412500100 Rope-Starter

219704403

$158.99

6

Key Clamp

420852070

$4.23

7

Pawl

420852296

$20.99

8

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

420852301

Unavailable

9

CIRCLIP - Call your local BRP dealership

420845300

Unavailable

10

Pawl Spring

420938986

$9.27

11

LOCK RING - Call your local BRP dealership

420945770

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Hex. Screw M6 X 16

207161644

$0.74

Not Available As Spare Part - Friction Washer

Unavailable

14

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

Starter Grip

572084400

$14.83

17

Rewind Starter Kit | Includes 1 - 15. Skandic 500.

420887691

Unavailable

17

Connecting Flange | Skandic 500.

420810950

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Rewind Starter | Includes 3 - 12. Skandic 500.

420887690

Unavailable

19

Starter Housing | Skandic 500.

420810995

Unavailable

20

Rewind Spring

420939115

$30.49

21

Rope Sheave

420852480

$63.99

22

Was 412500100 Rope-Starter

219704403

$158.99

23

Key Clamp

420852070

$4.23

24

Pawl

420852296

$20.99

25

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

420852301

Unavailable

26

CIRCLIP - Call your local BRP dealership

420845300

Unavailable

27

Pawl Spring

420938986

$9.27

28

LOCK RING - Call your local BRP dealership

420945770

Unavailable
