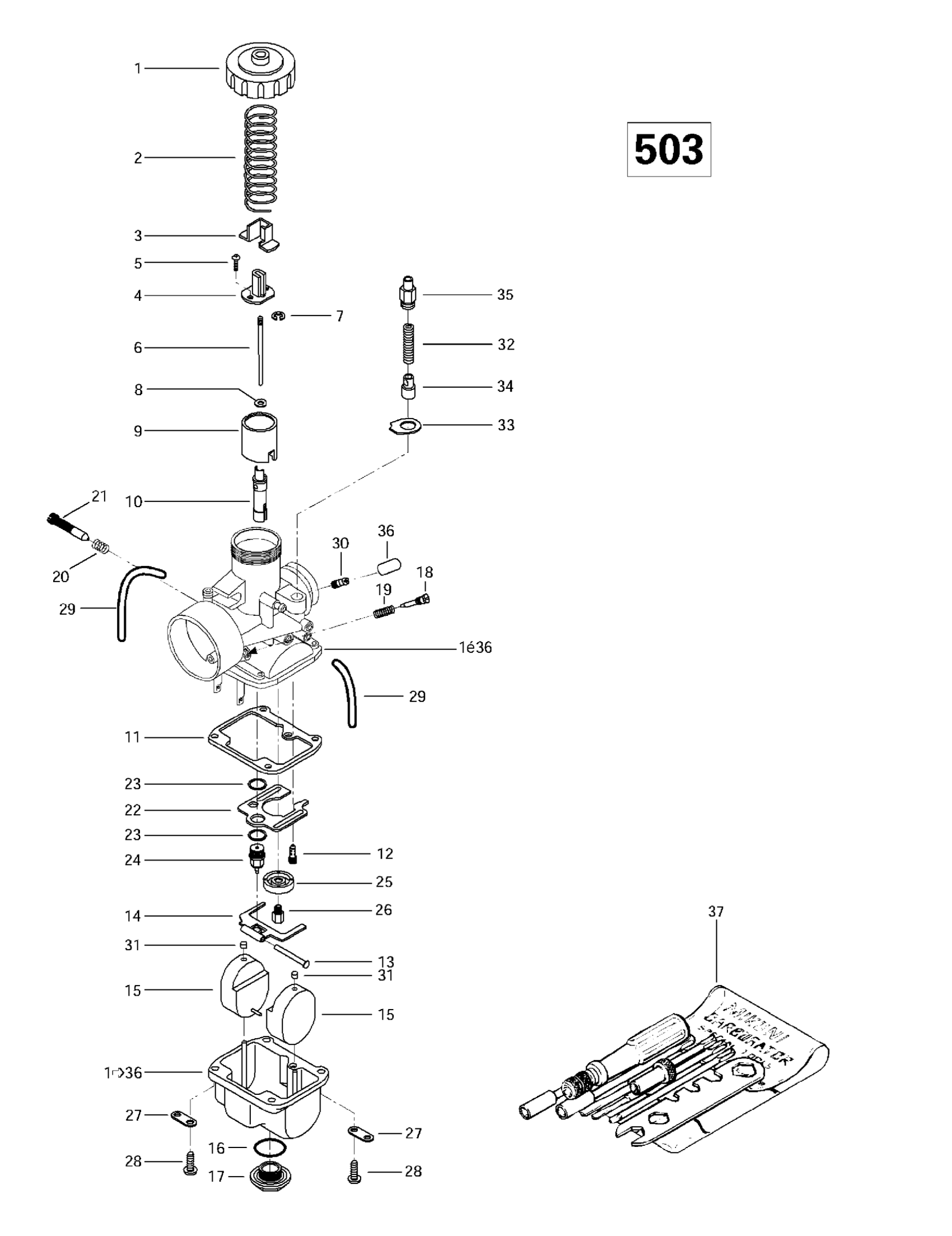

Ski-Doo Formula S, 1997 02- Carburetors (503) Diagram

#

Description
Price

1

Carburetor VM 34 481 (PTO) | Includes 1 - 36. Formula SL.

403127400

Unavailable

Carburetor VM 34 482 (MAG) | Formula SL.

403127500

Unavailable

1

Cover

404103700

$31.99

2

Spring

404154800

$23.99

3

Cover

404122100

$19.49

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.14

6

JET NEEDLE J8 6DH2 - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

404110400

Unavailable

7

E-Ring

404152400

$7.27

8

Packing

404117000

$3.29

9

Piston Valve 2.5

404128400

$127.49

10

NEEDLE JET - Call your local BRP dealership

404107000

Unavailable

11

Gasket | Includes 1900a to 1900am

404104200

$6.38

12

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

13

Lever Pin

404103300

$6.27

14

Float Lever

404107600

$22.99

15

FLOAT - Call your local BRP dealership

404107100

Unavailable

16

O-Ring

404107300

$9.06

17

Drain Plug Screw

404107400

$22.99

18

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

19

SPRING - Call your local BRP dealership

404139800

Unavailable

20

Spring

404101700

$4.14

21

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

22

BAFFLE - Call your local BRP dealership

404109600

Unavailable

23

Seat Washer

404101600

$3.29

24

Needle Valve 1.5

404103200

$31.99

25

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

26

Main Jet 180

404112200

$5.21

Main Jet MJ 170 (MAG) | MX Z 500 F. Formula DLX 500 F.

404123800

$5.21

27

PLATE - Call your local BRP dealership

404103000

Unavailable

28

Screw With Lock Washer

404102000

$3.18

29

Hose | Grand Touring SE.

404109800

Unavailable

30

NIPPLE - Call your local BRP dealership

404127600

Unavailable

31

Cap

404105800

$6.38

32

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

33

Plate | Formula S.

404156400

Unavailable

34

Plunger Ass'y | Formula Deluxe 380.

404127500

Unavailable

35

Guide Holder

404127200

Unavailable

36

Cap

404156600

$17.08

37

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

38

High Altitude Kit (Not Shown) | Formula SL.

861756600

Unavailable
