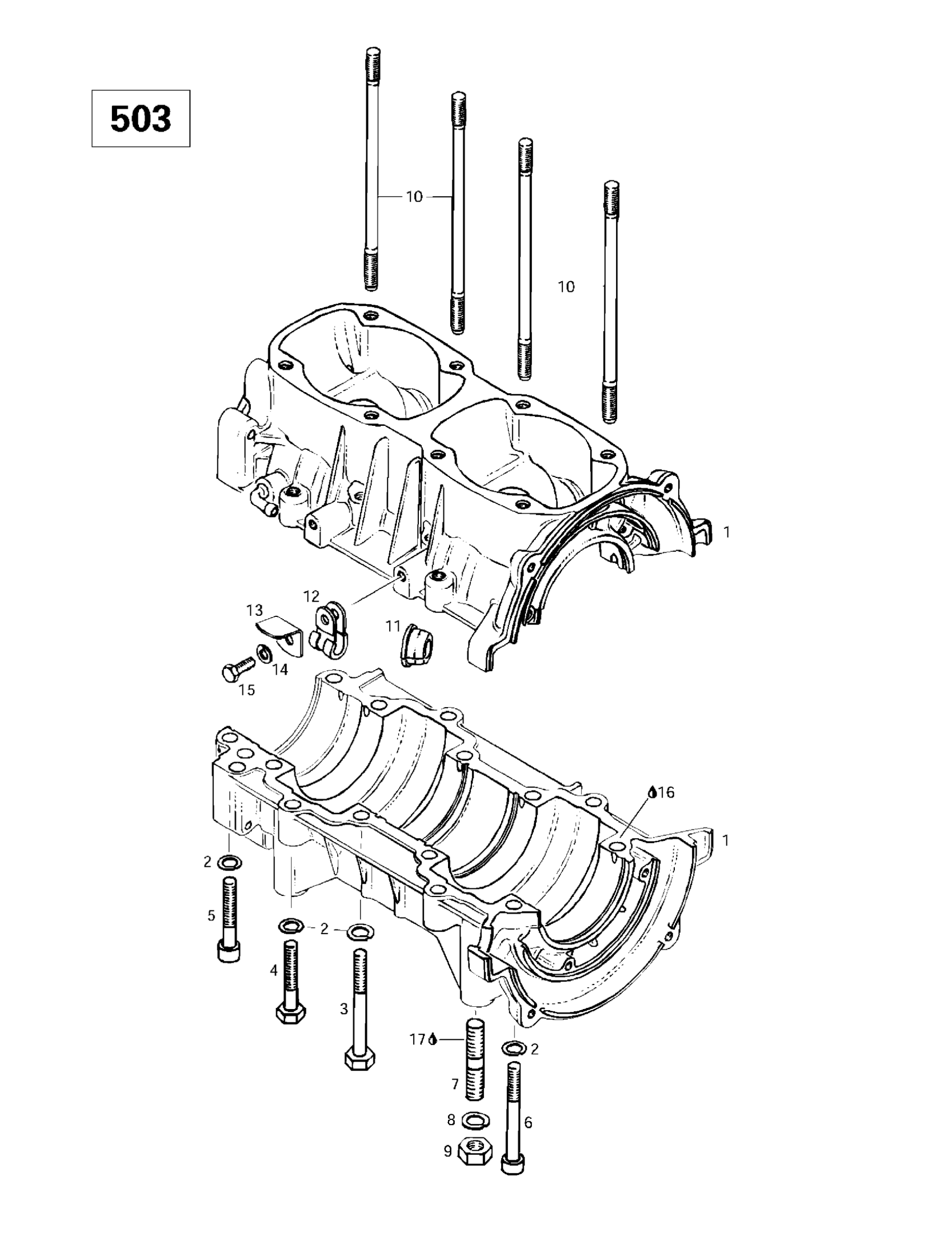

Ski-Doo Formula S, 1997 01- Crankcase (503) Diagram

#

Description
Price

1

CRANKCASE ASS?Y - Call your local BRP dealership | Includes 1 - 6.

420888493

$755.99

2

Washer-Lock Din.128

420945832

$1.15

3

Hex. Screw M8 X 70

420841201

$3.06

4

Hex. Screw M8 X 45

207084544

$1.48

5

ALLEN SCREW M8 X 50 - Call your local BRP dealership

420841566

Unavailable

6

SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership

420841841

Unavailable

7

Stud M10 X 29/20

420940190

Unavailable

8

Lock Washer | Touring E. Touring E LT (2). Touring LE.

420945753

Unavailable

9

Hex. Nut M10 X 1.5

232006414

$1.37

10

Stud M8 X 173.5

420840556

$15.89

11

Cable Crommet | Touring E. Touring E LT (2). Touring LE.

420960288

Unavailable

12

Open Clamp

414176000

$1.99

13

Wire Support | Touring E. Touring E LT (2). Touring LE.

420953310

Unavailable

14

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

15

Hex. Screw M6 X 16

207161644

$0.74

16

Sealant, 100 gr

413707100

Unavailable

17

Loctite 243, 10 ml

293800060

$21.49
