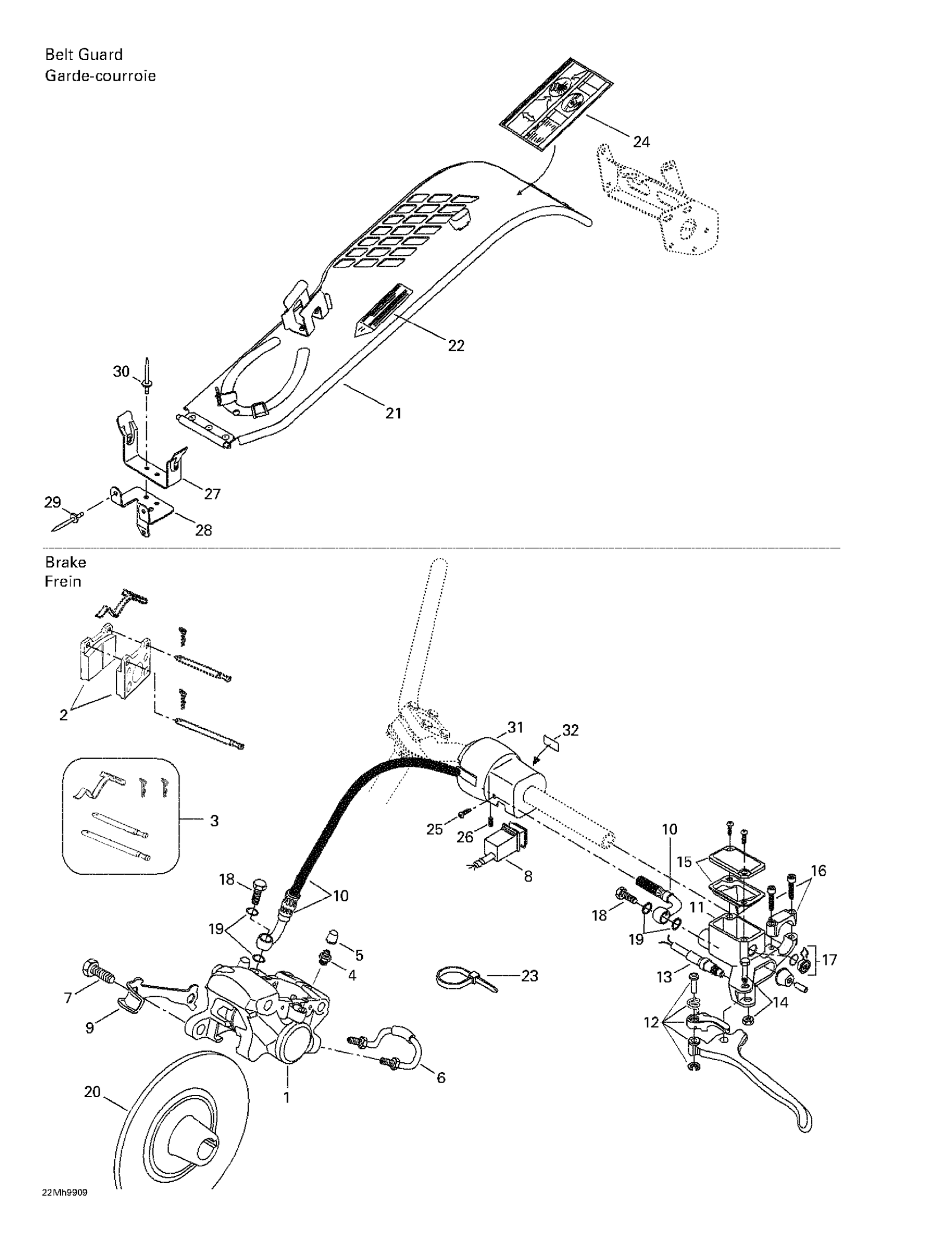

Ski-Doo Formula III 600/700/800, 1999 06- Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Caliper | Includes 10 - 15.

414920000

Unavailable

2

Brake Pad Kit

415084600

$79.49

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Hex. Screw M10 X 35

207103544

$1.58

8

Switch

515175294

Unavailable

9

Locking Tab

507031900

Unavailable

10

Hose

507032220

Unavailable

11

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$369.99

12

LEVER - Call your local BRP dealership

507032428

Unavailable

13

Microswitch

507032366

$98.99

14

Pin Ass'y

415030000

$19.99

15

Cap

415029900

$41.49

16

Clamp And Screw Kit

507032477

$23.99

17

WINDOW - Call your local BRP dealership

414990600

Unavailable

18

Banjo Bolt

414920500

$8.68

19

Washer

414920600

$1.90

20

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

21

Belt Guard Ass'y | Includes 4 - 7.

417300050

Unavailable

22

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

23

Tie-Rap 180 mm

414115200

$0.11

24

Suspension Adjustment Decal | Formula III 600.

418001713

Unavailable

Suspension Adjustment Decal

418001715

Unavailable

25

Screw

414473200

Unavailable

26

Socket Set Screw M8 X 10

414440800

$4.12

27

Belt Guard Bracket

518202100

$17.49

28

Pulley Guard Support

518317000

Unavailable

29

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

30

Pop Rivet 3/16"

390402200

$0.35

31

Brake Housing

515175307

Unavailable

32

Switch Decal

415025500

Unavailable
