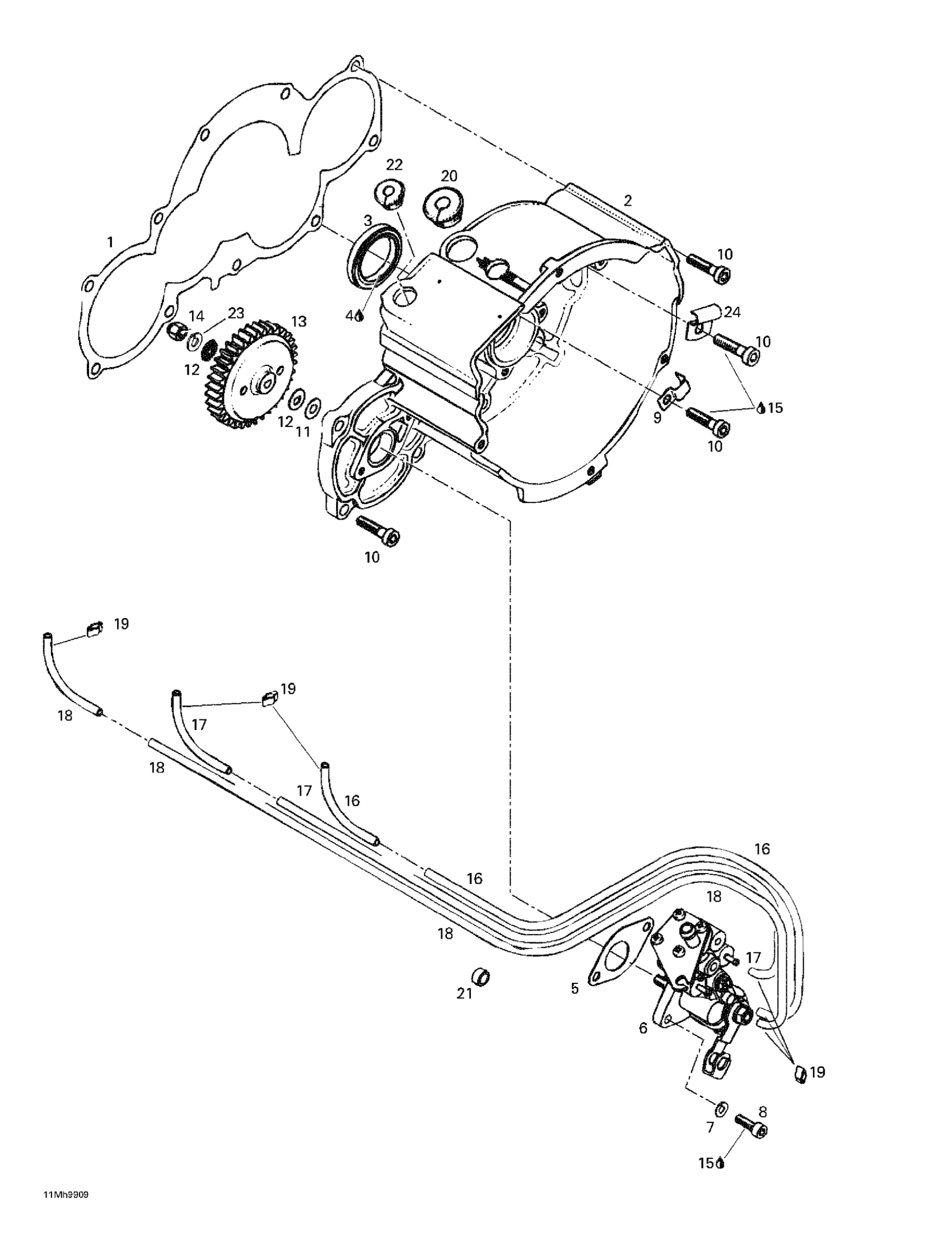

Ski-Doo Formula III 600/700/800, 1999 03- Ignition Housing Oil Pump Diagram

#

Description
Price

1

Gasket

420950282

$23.49

2

Ignition Housing

420811310

Unavailable

3

OIL SEAL - Call your local BRP dealership

420931290

Unavailable

4

Dow Corning 111, 150 g

413707000

$59.99

5

Gasket

420950460

Unavailable

6

Oil pump Ass'y | Formula III 700 R.

420887932

Unavailable

Oil Pump Ass'y

420887935

Unavailable

7

Lock Washer

420945750

Unavailable

8

Allen Screw M5 x 16

420640071

Unavailable

9

Cable Clamp

420953387

Unavailable

10

Allen Screw M6 x 25

420941691

Unavailable

11

Flat Washer

420244215

Unavailable

12

Washer

420227150

Unavailable

13

Oil Pump Gear (36 Tooth)

420834270

Unavailable

14

Elastic Stop Nut M6

232561414

$0.55

15

Loctite 243, 10 ml

293800060

$21.49

16

Oil Hose 1500Mm Long

219704404

$17.26

17

Oil Hose 1500Mm Long

219704404

$17.26

18

Oil Hose 1500Mm Long

219704404

$17.26

19

Clamp

420256408

Unavailable

20

Cable Grommet

420860965

$14.28

21

Rubber Ring

420960700

Unavailable

22

Cable Grommet

420860968

Unavailable

Cable Grommet

420860967

Unavailable

23

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

24

Clamp

420953382

Unavailable
