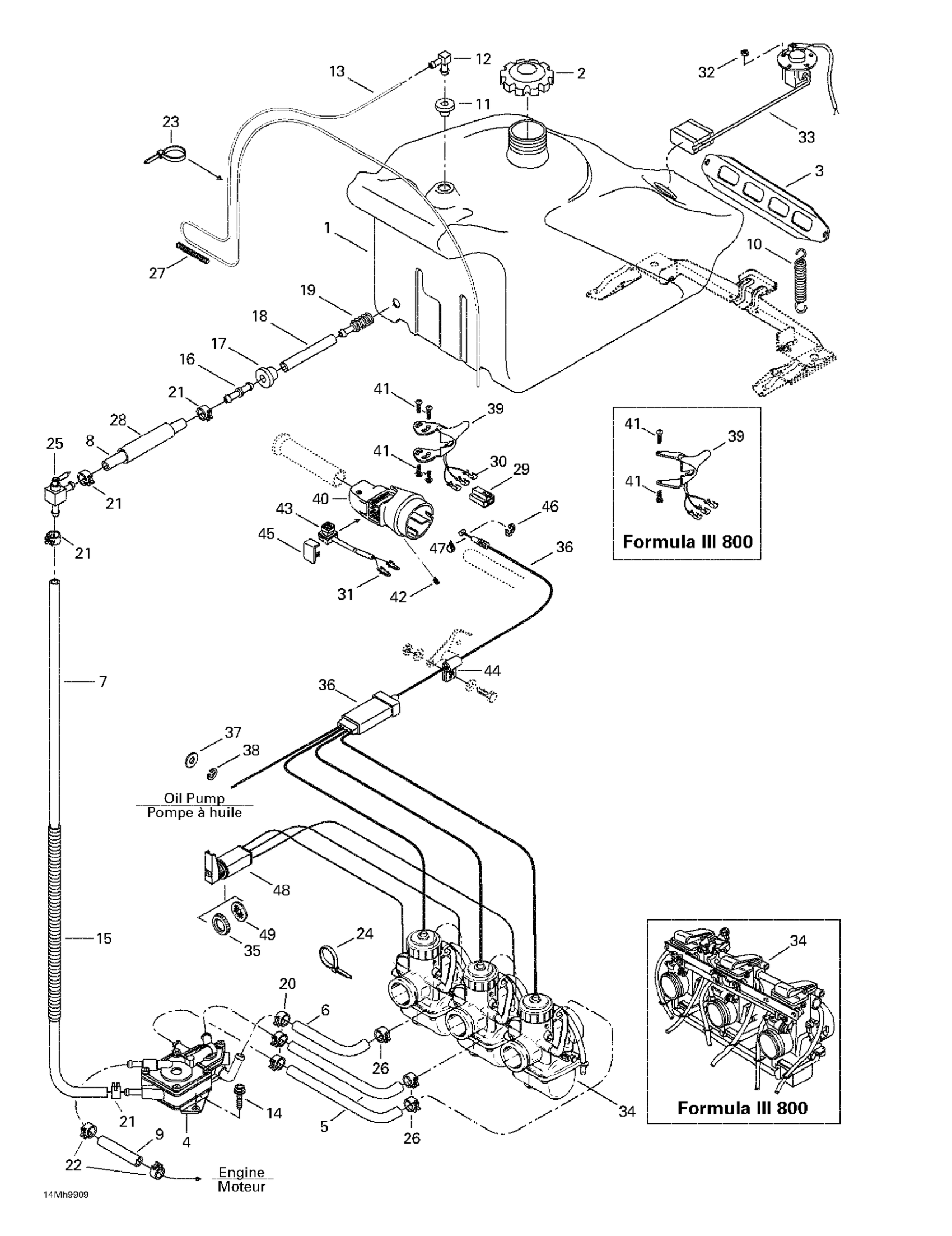

Ski-Doo Formula III 600/700/800, 1999 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513032925

Unavailable

2

Fuel Tank Cap 91 Octane

513033722

$22.49

3

Fuel Tank Bracket

517249200

Unavailable

4

FUEL PUMP - Call your local BRP dealership

513032929

$79.99

5

Tube

415117800

Unavailable

Polyurethane Hose 10000Mm Long

219704410

$56.99

6

Formed Tube | Formula III 700 R.

415117900

Unavailable

Formed Hose | Formula III 800.

415120800

Unavailable

7

FORMED HOSE - Call your local BRP dealership

513032949

Unavailable

8

HOSE - Call your local BRP dealership

513032965

Unavailable

9

Hose

219704549

$50.99

10

Spring

415107100

$6.35

11

Grommet

513032908

$10.49

12

Male Connector

414814100

$2.22

13

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

14

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

15

Tubing 16 Mm 1000Mm Long

219704408

$7.49

16

Male Connector

414872700

$1.90

17

Grommet | Europe

707800347

$10.49

18

POLYURETHANE HOSE 7.6MM - Call your local BRP dealership

415097800

Unavailable

19

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

20

Spring Clamp

414420700

$0.72

21

Spring Clamp

414655700

$0.72

22

Spring Clamp

414415200

$0.88

23

Tie-Rap 180 mm

414115200

$0.11

24

Tie-Rap 180 mm

414115200

$0.11

25

Shut-Off Valve

415112200

Unavailable

26

Spring Clamp

414420700

$0.72

Spring Clamp

414554800

$0.88

27

Spring

513032961

Unavailable

28

Hose (Rubber)

513032941

Unavailable

29

Female Terminal Housing (3 circuits)

409008500

Unavailable

30

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

31

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

32

Elastic Stop Nut M5

232551414

$0.87

33

Fuel Sensor Ass'y | Includes 46 - 49.

415080800

Unavailable

34

VM 36-190 Carburetor | Includes 1 - 37. Formula III 600.

403138550

Unavailable

VM 38 Central Carburetor | Formula III 700 R.

403138551

Unavailable

Carburetors Ass'y TM38-C228 | Includes 1 - 76. Formula III 800.

403138558

Unavailable

35

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

36

Throttle Cable | Formula III 700 R.

512059020

Unavailable

Throttle Cable | Formula III 800.

512059021

Unavailable

37

Flat Washer 8 mm, Nylon

234081100

$1.39

38

Circlip

414753500

$0.71

39

Handle Ass'y

512059348

$93.99

Heat Throttle Handle (26 mm) | Formula III 800.

572073300

Unavailable

40

Throttle Handle Housing | GT 700.

572098801

Unavailable

Throttle Handle Housing

572098800

Unavailable

41

Flange Screw

732601143

$4.12

42

Socket Set Screw M8 X 10

414440800

$4.12

43

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

44

Open Clamp

414176000

$1.99

45

Switch Cover

572100901

$14.83

46

Circlip

414274500

$0.90

47

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

48

Choke Cable | Formula III 700 R.

415077700

Unavailable

Choke Cable Ass'y | Includes 13 - 14.

561205500

Unavailable

49

Lock Washer, Interior Teeth

394103300

Unavailable
