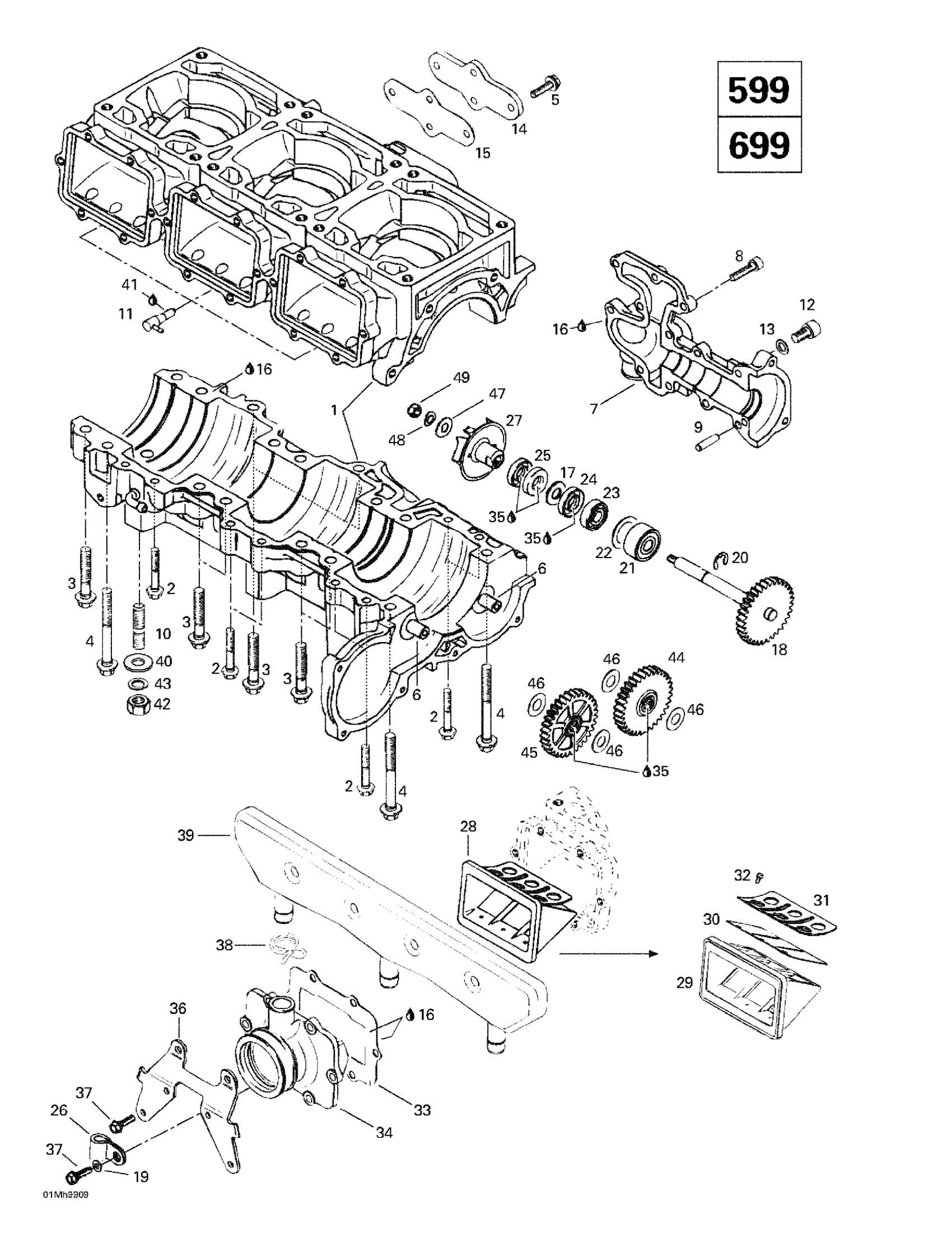

Ski-Doo Formula III 600/700/800, 1999 01- Crankcase, Reed Valve, Water Pump (599, 699) Diagram

#

Description
Price

1

Crankcase Water Pump Cover Ass'y | Includes 1 - 15. Formula III 600.

420888511

Unavailable

Crankcase Water Pump Cover Ass'y | Includes 1 - 15. Formula III 700 R.

420888515

Unavailable

2

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

3

Hex. Collar Screw M8 x 45

420640432

$8.57

4

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

5

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

6

INTERMEDIATE GEAR SHAFT - Call your local BRP dealership

420929935

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Socket Head Screw M6 X 25

205062544

$1.15

9

Dowel Pin

420429230

Unavailable

10

Stud M10 x 25

420940400

Unavailable

11

Check Valve

420956511

$35.99

12

Socket Head Screw M8 x 16

420440191

Unavailable

13

Sealing Ring

420950141

$2.00

14

Water Duct Cover | Formula III 700 R.

420810470

Unavailable

15

Water Duct Gasket | Formula III 700 R.

420931300

Unavailable

16

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

17

Flat Washer M10 This part replaces 420927410.

420927411

$2.11

18

Waterpump - Shaft/Pinion Ass'y

420837327

Unavailable

Waterpump - Shaft/Gear Ass'y | Formula III 700 R.

420837437

Unavailable

19

WASHER - Call your local BRP dealership

420827800

Unavailable

20

RETAINING RING - Call your local BRP dealership

420845390

Unavailable

21

Bearing_Ball - Call your local BRP dealership

420832490

Unavailable

22

SHIM 1 MM - Call your local BRP dealership

420944466

Unavailable

23

Ball Bearing

420232100

$20.99

24

Oil Seal

420230195

$15.36

25

OIL SEAL - Call your local BRP dealership

420950400

Unavailable

26

Open Clamp

414176000

$1.99

27

Water Impeller | Formula III 600.

420922440

Unavailable

Impeller Water

420922445

Unavailable

28

Reed Valve Ass'y

420924519

$54.99

Reed Valve Ass'y

420924519

$54.99

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Reed Pedal

420924532

$42.49

31

Reed Pedal Stop

420924635

Unavailable

Reed Pedal Stop

420924539

$13.16

32

Phillips Screw M3 X 5

420941215

$1.69

33

GASKET 1 MM - Call your local BRP dealership

420950292

Unavailable

34

INTAKE SOCKET - Call your local BRP dealership | Formula III 700 R.

420867841

Unavailable

35

Dow Corning 111, 150 g

413707000

$59.99

36

CARRIER - Call your local BRP dealership

420851351

Unavailable

37

Hex. Tapping Screw M5 X 20

420841555

$1.69

38

Clamp

420851360

Unavailable

39

Intake Resonator | Formula III 700 R.

420867792

Unavailable

40

Flat Washer 10 mm

234001410

$1.26

41

Sealant Loctite 648

219703000

$45.99

42

Hex. Nut M10 X 1.5

232006414

$1.37

43

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

44

Sprocket 32 T | Formula III 700 R.

420834266

Unavailable

45

SPROCKET, 32 TEETH - Call your local BRP dealership

420834267

Unavailable

46

THRUST WASHER - Call your local BRP dealership

420927952

Unavailable

47

Washer

420227155

Unavailable

48

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

49

Locking Nut M6

420842042

Unavailable
