Partiron

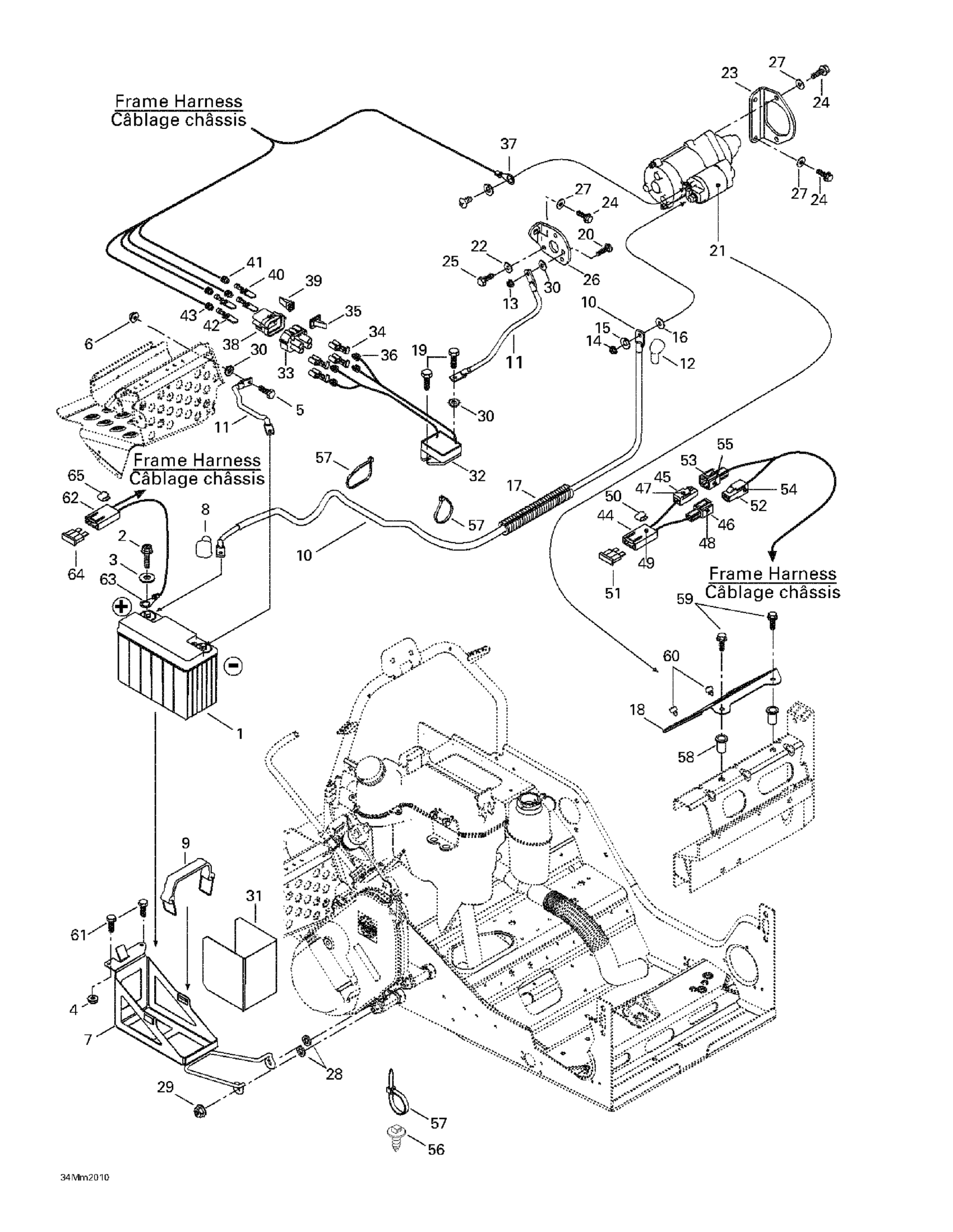

Ski-Doo Formula Deluxe 600/700, 2000 Battery And Starter Diagram

#

Description
Price

1

BATTERY - Call your local BRP dealership | Includes 51 - 53. Formula Deluxe 500. Formula Deluxe 600.

515175481

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Hex. Flange Elastic Nut M5

233251414

$1.04

5

Hex. Screw M6 X 16

207161644

$0.74

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Battery Support | Formula Deluxe 500. Formula Deluxe 600.

515175472

Unavailable

8

Protection Cap

570151000

$21.99

9

Battery Strap

515176044

$18.49

10

Battery Wire

515175482

Unavailable

11

GROUND WIRE - Call your local BRP dealership

515175483

Unavailable

12

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Hex. Nut M8

232081414

$0.72

15

Lock Washer 8 mm

234181401

$0.92

16

Flat Washer 8 mm

234081410

$0.83

17

Was 409901700 Tubing (9 mm)

219704399

$84.99

18

Protector

515175536

Unavailable

19

Hex. Flange Screw M6 X 16

210261650

$1.67

20

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

21

Starter | Includes 1 - 18.

515175438

Unavailable

22

Flat Washer 6 mm

234061410

$1.36

23

Starter Bracket (PTO) | Skandic 600.

515175142

Unavailable

24

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

25

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

26

Starter Bracket (MAG) | Skandic 600.

515175441

Unavailable

27

Flat Washer With Teflon 8 mm

250200008

$3.80

28

Washer

503175800

$3.28

29

Hex. Flange Elastic Nut M10

233201414

$1.58

30

Lock Washer Serrated M6

250200041

$1.15

31

Deflector | Formula Deluxe 500. Formula Deluxe 600.

515175363

Unavailable

32

Voltage Regulator | Includes 1 - 5.

515175217

Unavailable

33

Female Terminal Housing (4 circuits)

409208000

Unavailable

34

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

35

Female Lock

409013400

Unavailable

36

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

37

Ring Terminal

515175504

$9.12

38

Male Terminal Housing (4 circuits)

409207700

Unavailable

39

Male Lock

409013100

Unavailable

40

Male Terminal

409010900

Unavailable

41

Seal

409208300

Unavailable

42

Male Terminal

409013000

Unavailable

43

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

44

Fuse Holder

409004000

$8.09

45

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

46

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

47

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

48

Female Terminal

515175282

$7.86

49

Female Terminal

409011600

$5.39

50

CLIP - Call your local BRP dealership

409014200

Unavailable

51

Fuse, 20 Amperes

409003900

$3.28

52

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

53

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

54

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

55

Female Terminal

515175282

$7.86

56

Mount Dart

293730040

$1.04

57

Tie-Rap 180 mm

414115200

$0.11

58

Insert

293450275

$12.99

59

Hex. Flange Screw M6 X 16

207661644

$0.74

60

Rubber Bumper

293830005

$8.09

61

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

62

Not Available As Spare Part - Friction Washer

Unavailable

62

Fuse Holder

409004000

$8.09

63

Open Barrel

278000992

$2.21

64

Fuse, 30 Amperes

410917200

$3.28

65

CLIP - Call your local BRP dealership

409014200

Unavailable
