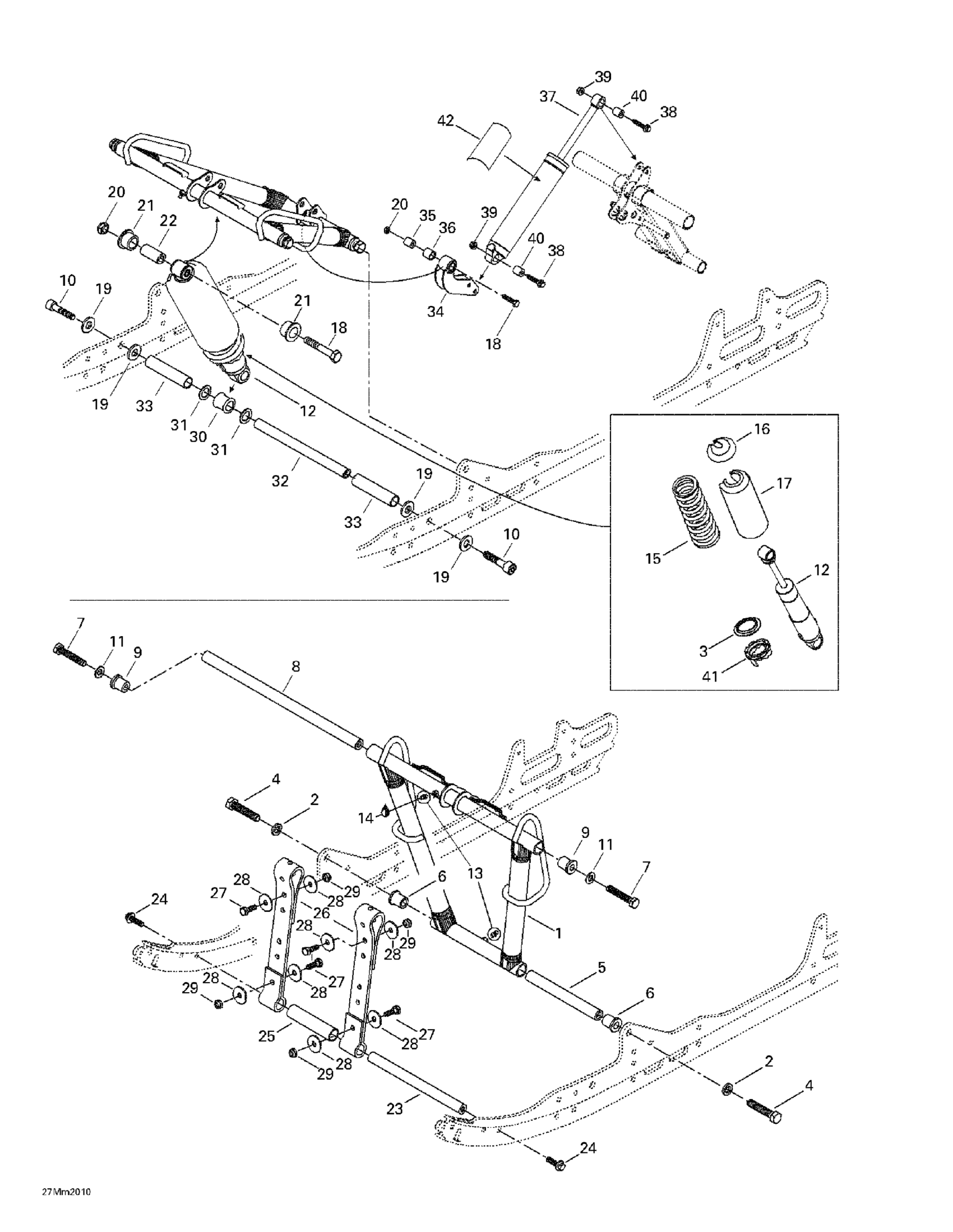

Ski-Doo Formula Deluxe 600/700, 2000 08- Front Arm Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Washer

503189276

$3.28

3

Spring Guide

503187500

$10.49

4

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

5

SHAFT - Call your local BRP dealership

503189313

Unavailable

6

CUSHION - Call your local BRP dealership

503189323

Unavailable

7

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Bushing

503189324

$14.15

10

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

11

Washer

732900049

$0.58

12

Center Shock (Europe) | (Summit 600 R (Sport)) (Europe) Summit 600.

503189178

Unavailable

13

Grease Fitting

408200700

$3.49

14

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

15

SPRING - Call your local BRP dealership

503189325

Unavailable

16

Spring Stopper

706200881

$12.99

17

Protector

503193663

$37.99

18

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

19

Washer

503189276

$3.28

20

Elastic Locking Nut M10 X 1.5

233601416

$1.69

21

Urethane Bushing

503189117

$8.19

22

Bushing | Includes 240d to 240d1

503189282

$4.34

23

Axle

503151600

$18.49

24

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

25

Spacer

503189265

$4.99

26

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

27

Hex. Screw M8 X 25

207182544

$0.90

28

Flat Washer

224081301

$0.88

29

Hex. Elastic Stop Nut M8

232581414

$0.56

30

Bushing

503189271

$13.99

31

Washer

503189273

$3.28

32

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

33

SPACER - Call your local BRP dealership

503189274

Unavailable

34

Rocker

503189303

Unavailable

35

Rocker Axle

503189388

Unavailable

36

Cushion

503189410

Unavailable

37

Rear Shock

503191582

$164.49

Rear Shock (Europe) | Formula Deluxe 700.

503189497

Unavailable

38

Hex. Flange Screw M8 X 40

207684044

$1.48

39

Hex. Flange Elastic Nut M8

233281414

$1.47

40

Bushing

414936000

$13.99

41

Adjustment Cam

505073625

$12.99

42

Shock Decal

516000183

Unavailable
