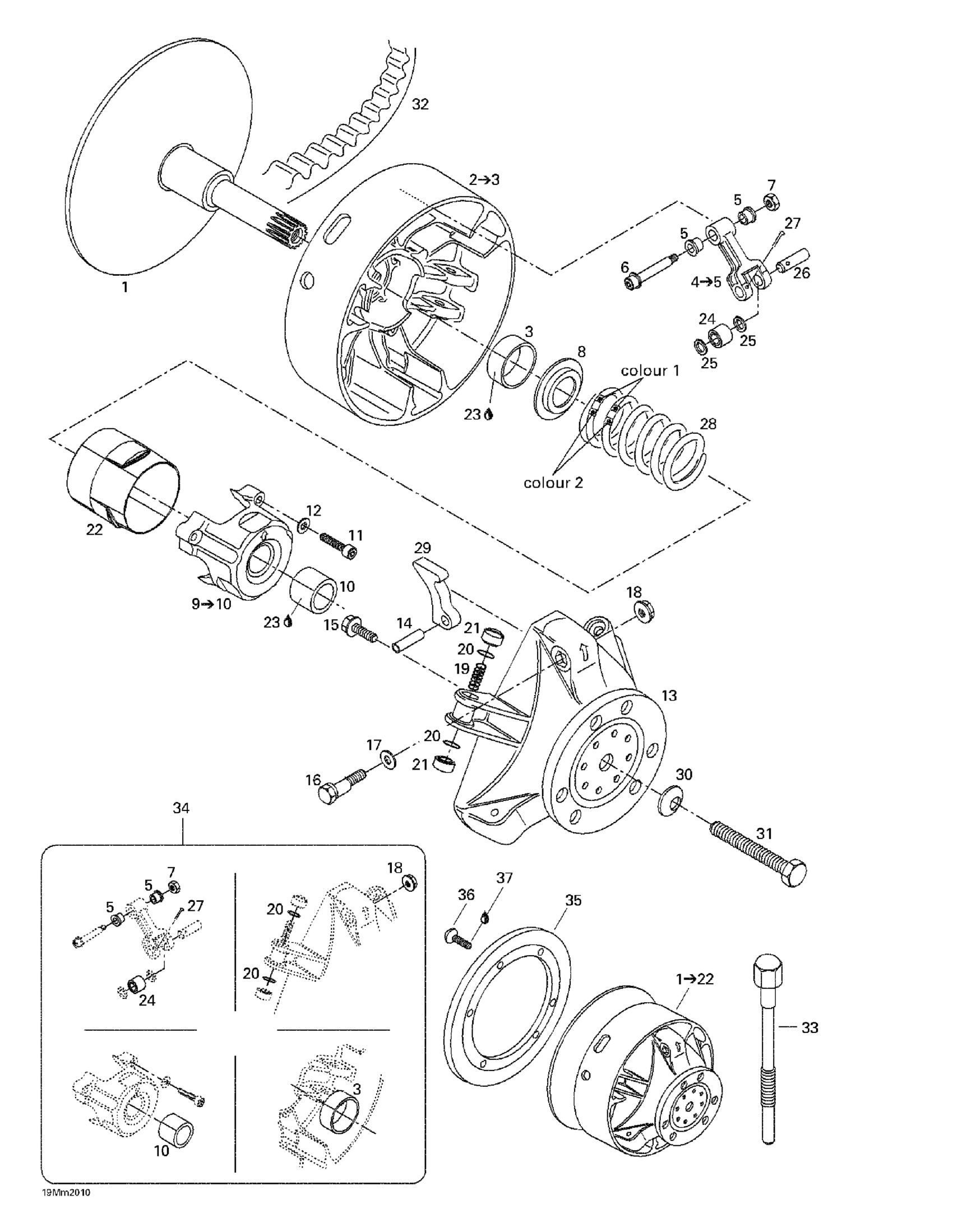

Ski-Doo Formula Deluxe 600/700, 2000 05- Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 23.

417222283

Unavailable

1

Fixed Flange

417222411

$539.99

2

OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.

417222049

Unavailable

3

Bushing

417004201

$25.99

4

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

Unavailable

5

Bushing

417004305

$11.52

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

Elastic Stop Nut M6

232561414

$0.55

8

Spring Seat

417222044

Unavailable

9

Spring Cover Ass'y | Includes 9 - 10.

417222298

Unavailable

10

Bushing

417004501

$24.99

11

Socket Head Screw M6 X 40

250000038

$7.59

12

WASHER - Call your local BRP dealership

420245370

Unavailable

13

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

14

Pin M8 X 24

732804009

Unavailable

15

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

16

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

17

Washer

417005600

$4.09

18

Hex. Flange Nut M6

233061414

$1.68

19

Spring

417005700

$4.76

20

O-Ring

732401030

$0.98

21

Slider Shoe This part replaces 420460045.

417223021

$5.90

22

Guard

417222176

Unavailable

23

Loctite 609, 10 ml

413703100

$26.99

24

Roller

417222947

$21.99

25

Stopper Washer

417004302

$15.90

26

Pin

417004308

$13.99

27

Cotter Pin

250400060

$2.00

28

Spring, Violet/yellow This part replaces 415128608.

415015300

$43.49

Spring, Violet/Violet

414817900

$39.99

29

Ramp 281 | Formula Deluxe 500. Formula Deluxe 600.

417005281

Unavailable

Ramp 298 | Formula Deluxe 700.

417222271

Unavailable

30

Spring Washer 14 mm

250200006

$6.99

31

Drive Pulley Bolt

417120000

$65.49

32

Drive Belt

414860700

$104.99

Drive Belt | Formula Deluxe 700.

417300067

$134.99

33

Puller This part replaces 529022400.

529000064

$71.99

34

Clutch Repair Kit

417006100

$189.99

35

Ring Gear

417300057

Unavailable

36

Hex. Screw M8 X 16

236281684

$4.12

37

Loctite 271, 10 ml

293800005

$26.99
