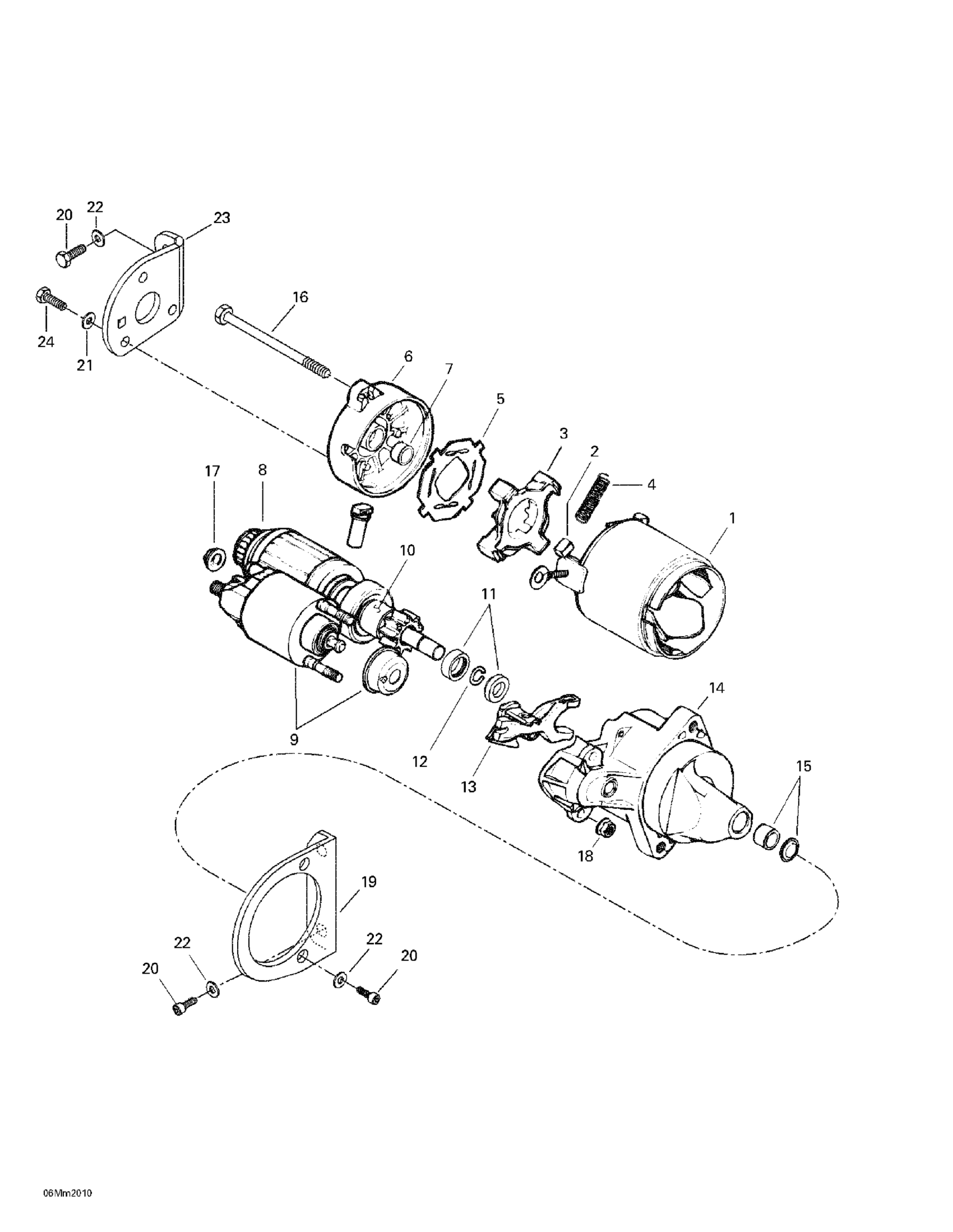

Ski-Doo Formula Deluxe 600/700, 2000 04- Electric Starter Diagram
#
Description
Price
1
Starter | Includes 1 - 18.
515175438
Unavailable
1
Starter Housing
410213106
Unavailable
2
BRUSH KIT - Call your local BRP dealership
410213107
Unavailable
3
BRUSH HOLDER - Call your local BRP dealership
410209700
Unavailable
4
BRUSH SPRING - Call your local BRP dealership
410209800
Unavailable
5
INSULATOR - Call your local BRP dealership
410209900
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
BRASS BUSHING - Call your local BRP dealership
410210100
Unavailable
8
Armature Assy.
410210200
Unavailable
9
SWITCH ASSY. - Call your local BRP dealership
410210300
Unavailable
10
STARTER CLUTCH - Call your local BRP dealership
410210400
Unavailable
11
NUT - Call your local BRP dealership
410212500
Unavailable
12
CIRCLIP - Call your local BRP dealership
410212600
Unavailable
13
Lever
410213109
Unavailable
14
Housing
410213110
Unavailable
15
BRASS BUSHING - Call your local BRP dealership
410210900
Unavailable
16
Bolt | Skandic 600.
410213112
Unavailable
17
NUT - Call your local BRP dealership
410211100
Unavailable
18
NUT - Call your local BRP dealership
410211200
Unavailable
19
Starter Bracket (PTO) | Skandic 600.
515175142
Unavailable
23
Starter Bracket (MAG) | Skandic 600.
515175441
Unavailable
