Description

Price

1

Fuel Tank | SE

513032988

Unavailable

2

Fuel Tank Cap

513033025

$24.49

3

Grommet

513032908

$10.49

4

Male Connector

414814100

$2.22

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

6

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

8

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

9

Hose

415005700

$11.58

10

Male Connector

414872700

$1.90

11

Grommet | Europe

707800347

$10.49

12

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

13

Formed Hose

513032903

$30.99

14

CLIP - Call your local BRP dealership

415018200

Unavailable

15

Pop Rivet 3/16"

390406500

$0.88

16

PUMP-FUEL - Call your local BRP dealership | Formula Deluxe 500. This part replaces 403901803.

403901807

Unavailable

17

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

18

Hose

219704549

$50.99

19

Spring Clamp

414415200

$0.88

20

Tube

415117800

Unavailable

21

Spring Clamp

414420700

$0.72

22

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

23

Flat Washer 8 mm

234082410

$1.47

24

Hex. Elastic Stop Nut M8

232581414

$0.56

25

Handle Ass'y 40 mm

512059204

Unavailable

26

THROTTLE HOUSING - Call your local BRP dealership

512059243

Unavailable

27

Flange Screw

732601143

$4.12

28

Circlip

414753500

$0.71

29

Elastic Stop Nut M5

232551414

$0.87

30

Socket Set Screw M8 X 10

414440800

$4.12

31

Kill Switch

515175410

Unavailable

32

THROTTLE CABLE - Call your local BRP dealership

512059188

Unavailable

33

Circlip

414274500

$0.90

34

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

35

Switch Cover

572100901

$14.83

36

Flat Washer 8 mm, Nylon

234081100

$1.39

37

Choke Cable | Includes 12 - 13. Formula Deluxe 500.

512059203

Unavailable

38

Lock Washer, Interior Teeth

394103300

Unavailable

39

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

40

Female Terminal

561503100

$2.41

41

Tie Wrap 94 mm | 4X4

293750001

$1.03

42

Tubing 16 Mm 1000Mm Long

219704408

$7.49

43

Fuel Sensor Ass’Y | SE / INCLUDES ITEMS 14 TO 17

515175170

Unavailable

44

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

45

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

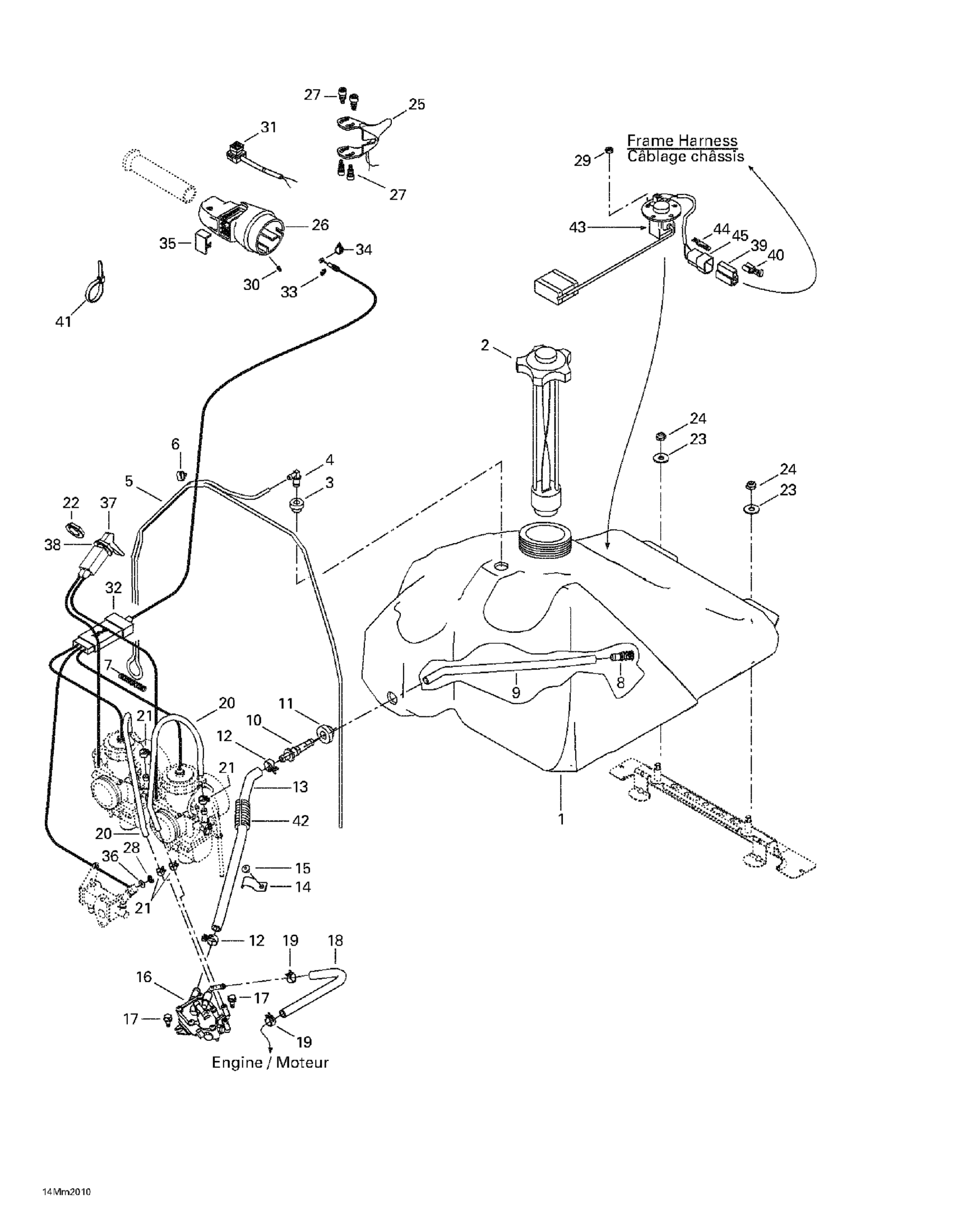

Ski-Doo Formula Deluxe 600/700, 2000 02- Fuel System Diagram

Fuel Tank | SE

Fuel Tank Cap

Grommet

Male Connector

Was 415080100 Fuel Line Primer 3,2mm

TUBE CLAMP - Call your local BRP dealership

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

Hose

Male Connector

Grommet | Europe

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

Formed Hose

CLIP - Call your local BRP dealership

Pop Rivet 3/16"

PUMP-FUEL - Call your local BRP dealership | Formula Deluxe 500. This part replaces 403901803.

HEX. SCREW M6 X 12 - Call your local BRP dealership

Hose

Spring Clamp

Tube

Spring Clamp

PLASTIC NUT - Call your local BRP dealership

Flat Washer 8 mm

Hex. Elastic Stop Nut M8

Handle Ass'y 40 mm

THROTTLE HOUSING - Call your local BRP dealership

Flange Screw

Circlip

Elastic Stop Nut M5

Socket Set Screw M8 X 10

Kill Switch

THROTTLE CABLE - Call your local BRP dealership

Circlip

Was 293550004 Dielectric Grease, 150 g

Switch Cover

Flat Washer 8 mm, Nylon

Choke Cable | Includes 12 - 13. Formula Deluxe 500.

Lock Washer, Interior Teeth

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

Female Terminal

Tie Wrap 94 mm | 4X4

Tubing 16 Mm 1000Mm Long

Fuel Sensor Ass’Y | SE / INCLUDES ITEMS 14 TO 17

MALE HOUSING - Call your local BRP dealership

MALE TERMINAL - Call your local BRP dealership
