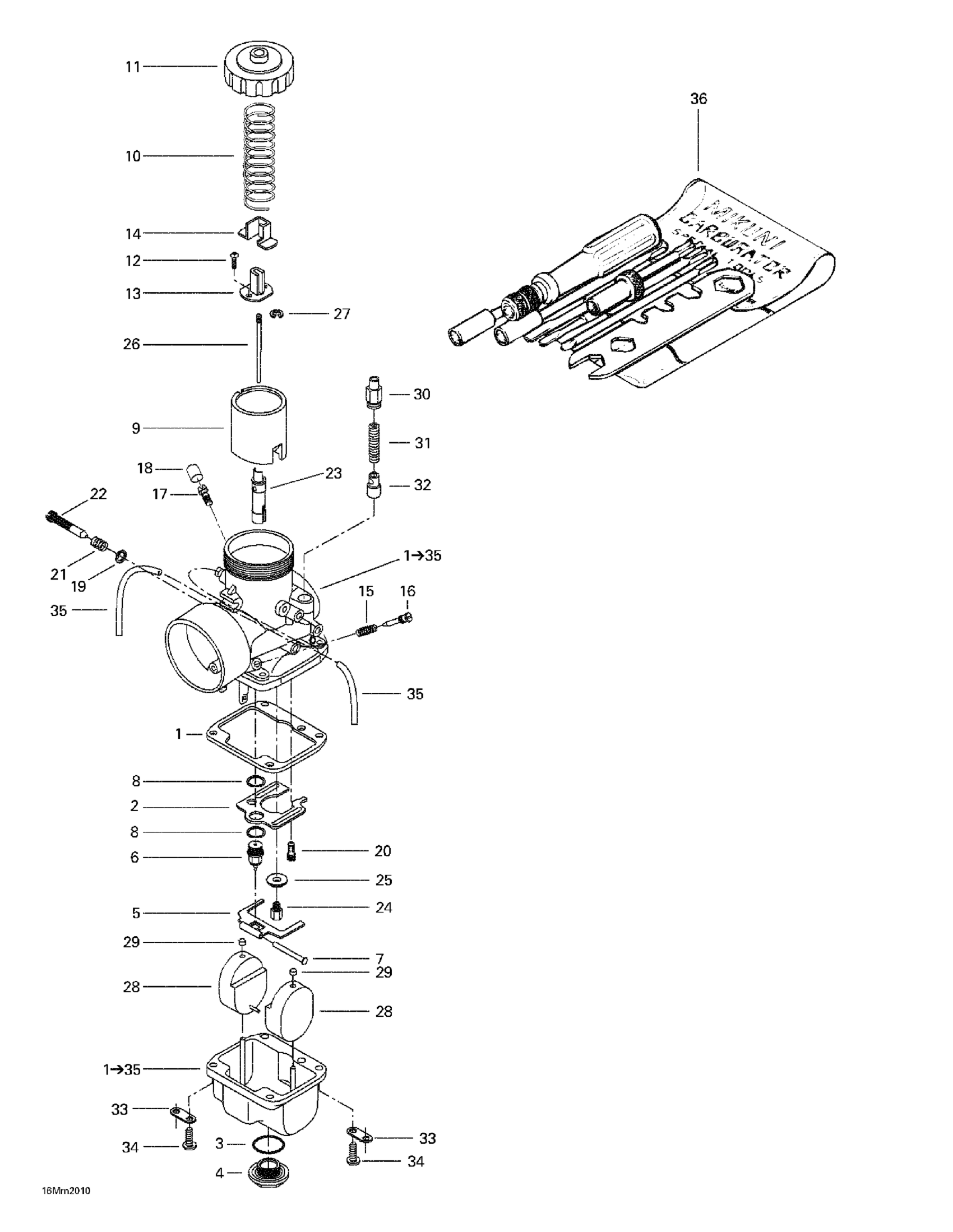

Ski-Doo Formula Deluxe 600/700, 2000 02- Carburetors Diagram

#

Description
Price

1

VM 40-122 Carburetor | Formula Deluxe 600.

403138614

Unavailable

VM 40-128 Carburetor | Formula Deluxe 700.

403138622

Unavailable

1

GASKET - Call your local BRP dealership

404104700

Unavailable

2

Baffle

404112700

Unavailable

3

Washer | Formula Deluxe 500.

404112800

Unavailable

4

Drain Plug Screw | Formula Deluxe 500.

404112900

Unavailable

5

Float Lever | Formula Deluxe 500.

404161823

Unavailable

6

Needle Valve 1.5

404147400

$42.49

7

Lever Pin

404103300

$6.27

8

Seat Washer

404101600

$3.29

9

Piston Valve CA 2.5

404132300

Unavailable

10

Spring

404156500

Unavailable

11

Cover

404126800

Unavailable

12

Screw With Washer

404121300

$4.14

13

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

14

Cover

404128100

Unavailable

15

SPRING - Call your local BRP dealership

404139800

Unavailable

16

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

17

Nipple

404153400

$12.16

18

CAP - Call your local BRP dealership

404154900

Unavailable

19

Washer

270500018

Unavailable

20

Pilot Jet PJ 37.5 | Formula Deluxe 600.

404161846

Unavailable

Pilot Jet 45

404109400

$5.21

21

Spring

404101700

$4.14

22

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

23

Needle Jet 224-Z-9 | Formula Deluxe 600.

404153800

Unavailable

Needle Jet 224-Z-7 | Formula Deluxe 700.

404161875

Unavailable

24

Main Jet MJ 280

404100500

$9.06

25

Washer

404116700

Unavailable

26

Needle J8-7DFY01 | Formula Deluxe 600.

404161847

Unavailable

Needle J8-7DHY06 | Formula Deluxe 700.

404161840

Unavailable

27

E-Ring

404152200

$4.14

28

FLOAT - Call your local BRP dealership

404105400

Unavailable

29

Cap

404105800

$6.38

30

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

31

Spring | Formula Deluxe 500.

404161844

Unavailable

32

Plunger Ass'y | Formula Deluxe 500.

404161845

$22.99

33

PLATE - Call your local BRP dealership

404103000

Unavailable

34

Screw With Lock Washer

404102000

$3.18

35

Air Vent Tube

404161802

Unavailable

36

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
