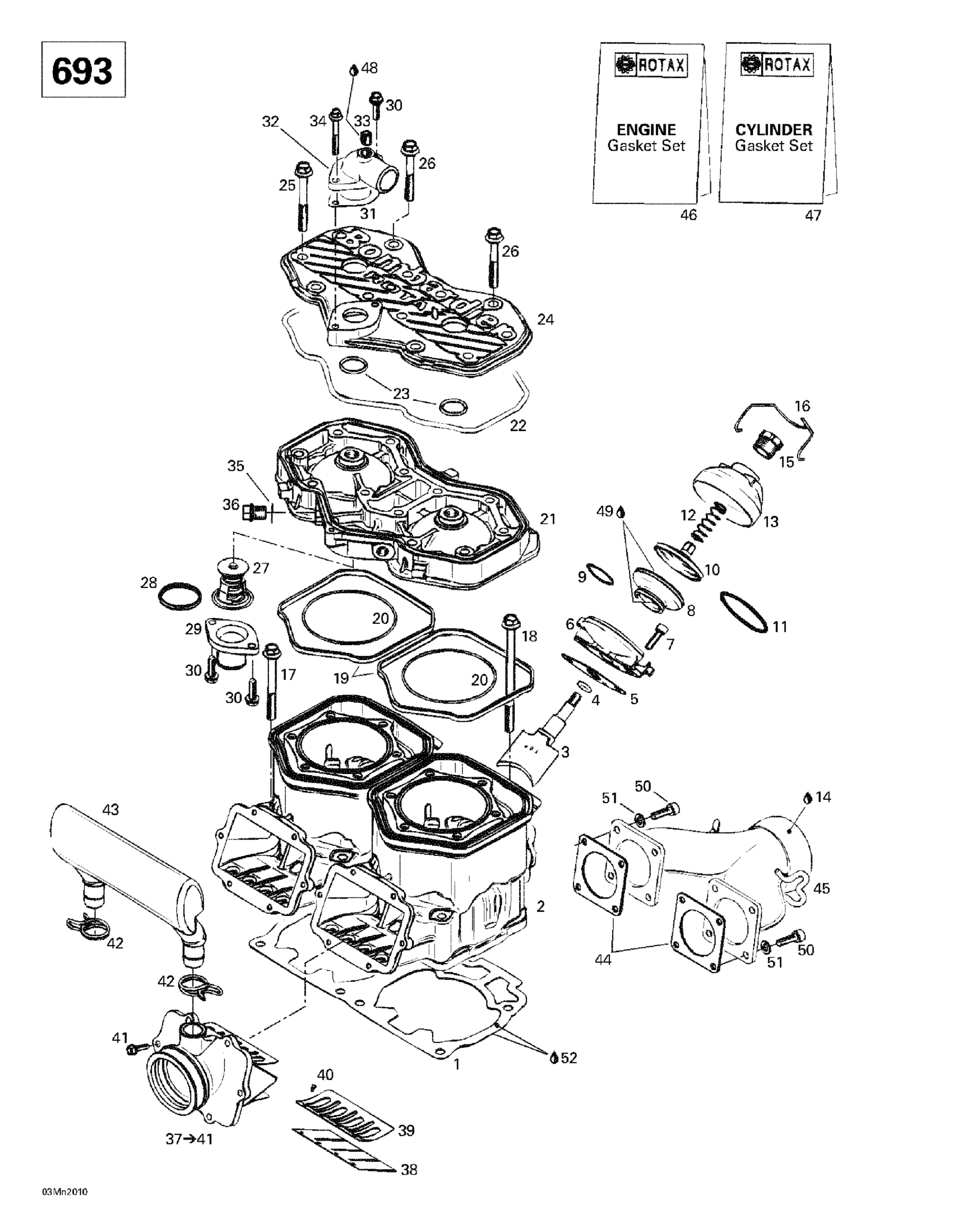

Ski-Doo Formula Deluxe 600/700, 2000 Cylinder, Exhaust Manifold, Reed Valve 2 Diagram

#

Description
Price

1

Double Gasket 0.8 mm

420431163

$23.05

Gasket 0.7 mm

420431162

$23.05

Gasket 0.5 mm

420431160

$16.89

2

Nicasil Cylinder | Formula Deluxe 700.

420923692

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership | Formula Deluxe 700.

420854330

Unavailable

4

O-Ring

420430110

$3.61

5

Gasket

420250239

$6.62

6

Valve Housing | Grand Touring 600.

420854265

Unavailable

7

Socket Head Screw M6 X 20

205062044

$1.07

8

Exhaust Bellows

420260723

$35.07

9

Hose Spring This part replaces 420838253.

420838255

$6.11

10

Exhaust Valve This part replaces 290253257.

420854449

$29.87

11

Hose Spring This part replaces 420239048.

420939281

$5.99

12

Spring This part replaces 420239944.

420239954

$7.31

13

Valve Cover

420911552

$37.66

14

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

15

Adjuster Screw

420241221

$12.52

16

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

17

Hex. Collar Screw

420640524

$11.52

18

Hex. Collar Screw

420640534

$13.58

19

Rubber Ring

420931590

$5.69

20

O-RING - Call your local BRP dealership

420931840

$12.11

21

Cylinder Head (Silver) | Formula Deluxe 700.

420923455

Unavailable

22

O-Ring This part replaces 290950320.

420950320

$11.48

23

O-Ring

420430782

$4.41

24

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

25

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.34

26

Hex. Screw M8 X 56.5

420941627

$8.34

27

Thermostat This part replaces 414834100.

420922519

$59.20

28

SEALING RING - Call your local BRP dealership

420931270

Unavailable

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

30

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65

31

Gasket

420850338

$10.28

32

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

33

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

34

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

35

Aluminum Sealing Ring

420250016

$4.41

36

Plug screw

420841924

$13.58

37

INTAKE SOCKET ASS'Y - Call your local BRP dealership | Includes 37 - 41. Formula Deluxe 700.

420867852

Unavailable

38

Reed Pedal

420924680

$37.66

39

Reed Pedal Stop

420924695

$13.58

40

Phillips Screw M3 X 5

420941215

$1.42

41

Taptite Screw M5 X 16

420941928

Unavailable

42

CLAMP - Call your local BRP dealership

420851440

Unavailable

43

Intake Resonator

420867815

Unavailable

44

Gasket

420850552

$7.92

45

Exhaust Manifold | Grand Touring 700.

420973591

Unavailable

46

Engine Gasket Set | Formula Deluxe 700.

420888601

Unavailable

47

Cylinder Gasket Set | Formula Deluxe 700.

420888606

Unavailable

48

Loctite 243, 10 ml

293800060

$20.77

49

Dow Corning 111, 150 g

413707000

$57.82

50

Socket Head Screw M6 X 25

205062544

$0.88

51

Lock Washer M6, Black

234161471

$0.52

52

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97
