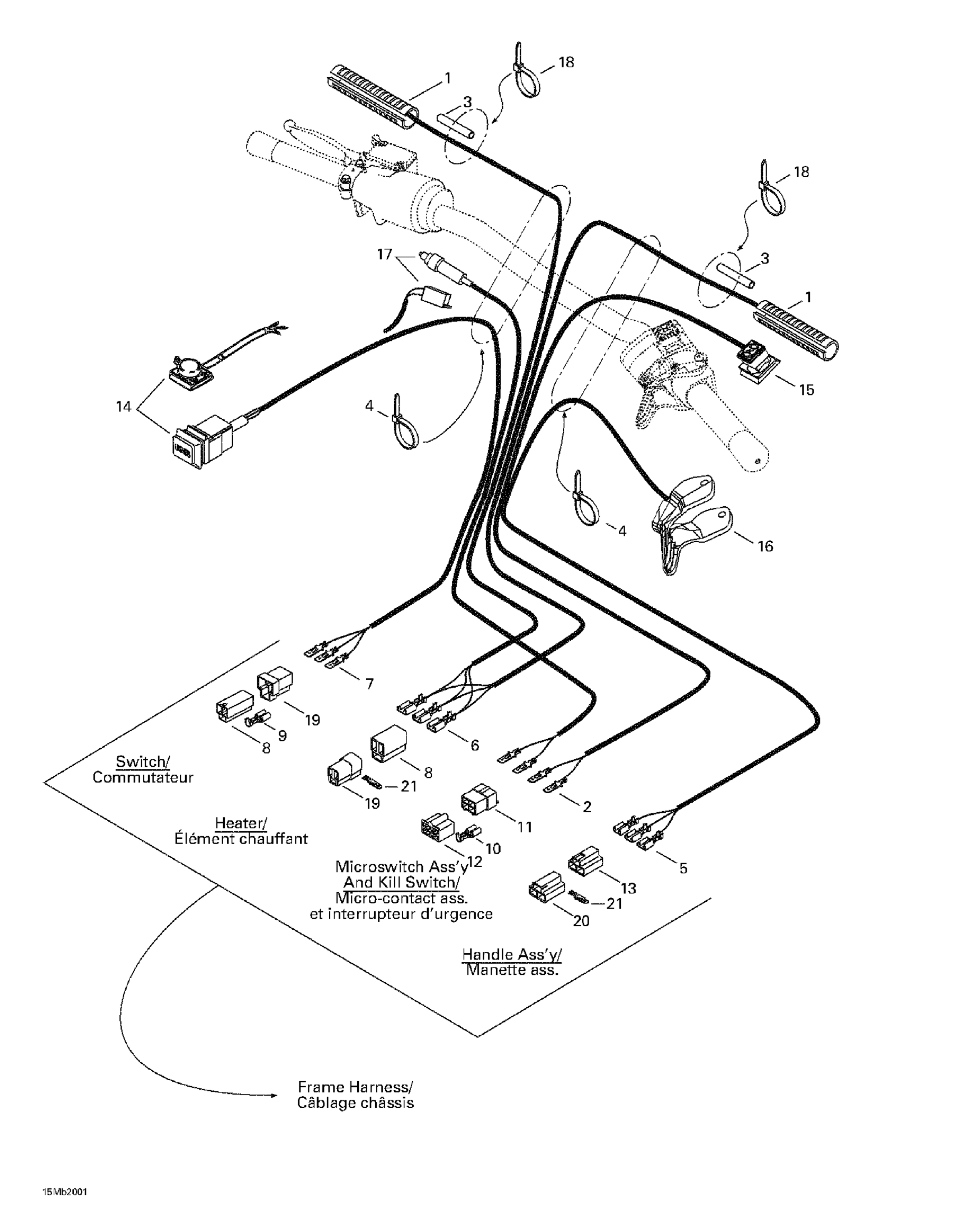

Ski-Doo Formula Deluxe 380/500, 2000 Steering System Diagram

#

Description
Price

1

Heating Grip

515175573

$59.20

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

4

Tie-Rap 180 mm

414115200

$0.09

5

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

6

Female Terminal

561503100

Unavailable

7

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

8

Female Housing

409204300

Unavailable

9

Female Terminal

561503100

Unavailable

10

Female Terminal PACKARD

561503200

Unavailable

11

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

12

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

13

Female Terminal Housing (3 circuits)

409008500

Unavailable

14

Dimmer Switch

415085800

Unavailable

Dimmer Switch

515175371

Unavailable

15

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

16

Handle Ass’Y

512059624

$88.43

Handle Ass'y

512060214

$117.66

17

Brake Switch

415085700

Unavailable

Microswitch

507032366

$104.58

18

Tie Wrap 94 mm | 4X4

293750001

$0.83

19

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

20

Male Terminal Housing (3 circuits)

409008600

Unavailable

21

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable
