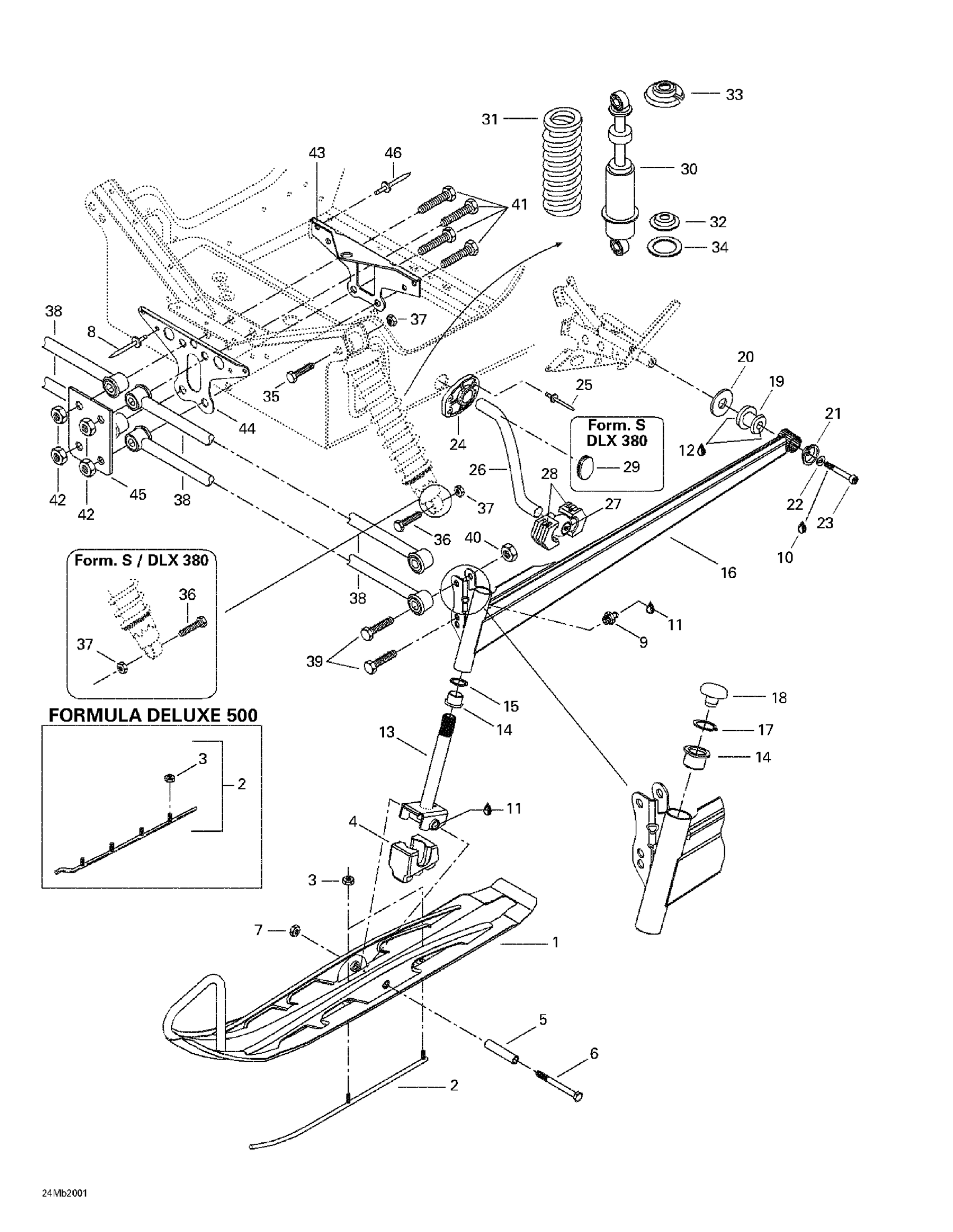

Ski-Doo Formula Deluxe 380/500, 2000 Front Suspension And Ski Diagram

#

Description
Price

1

Ski

505070325

Unavailable

2

Ski Runner | All US/CAN Model and MXZ Europe

505070424

Unavailable

2

Carbide Runner Kit | Includes 5 to 6, US/CAN

860502300

Unavailable

3

Hex. Elastic Stop Nut M8

232581414

Unavailable

4

Ski Stopper

505070324

Unavailable

5

Spacer

505070323

Unavailable

6

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

7

Elastic Locking Nut M10 X 1.5

233601416

$1.68

8

Rivet pop 1/4"

390404900

Unavailable

9

Grease Fitting

408200700

Unavailable

10

Loctite 243, 10 ml

293800060

$20.77

11

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

12

Grease, Super Lube

293550030

Unavailable

13

Ski Leg

505070321

Unavailable

14

Cushion

505070003

Unavailable

15

WASHER - Call your local BRP dealership

505070004

Unavailable

16

RH Swing Arm | Formula S. Formula DLX 380.

505070376

Unavailable

LH Swing Arm | Formula S. Formula DLX 380.

505070377

Unavailable

RH Swing Arm (Silver)

505070380

Unavailable

LH Swing Arm (Silver)

505070381

Unavailable

17

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

18

Cap

572091300

$8.97

19

DAMPER - Call your local BRP dealership

570062200

Unavailable

20

WASHER - Call your local BRP dealership

503146700

$4.42

21

Cup | Package Hunter

705007171

Unavailable

22

Lock Washer 8 mm

234181401

Unavailable

23

Socket Head Screw M8 X 25

205082544

Unavailable

24

Bushing | 550F

505070191

Unavailable

25

Pop Rivet 3/16"

390402300

Unavailable

26

Stabilisator

506134100

Unavailable

27

Ball Joint

506127300

Unavailable

28

Block Sliding

572069800

Unavailable

29

Black, Nylon Cap

414916600

$4.32

30

Shock

505070016

Unavailable

Shock

505070396

Unavailable

31

Spring (Yellow)

415075900

Unavailable

Shock Spring (Black) | Formula DLX 500 LC.

415035900

Unavailable

32

GUIDE_SPRING - Call your local BRP dealership

503165100

$1.91

Spring Guide

503187500

Unavailable

33

Spring Stopper

706200881

$10.30

34

WASHER - Call your local BRP dealership

503184400

$2.75

WASHER - Call your local BRP dealership

505070401

Unavailable

35

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

36

Hex. Screw M10 X 55

207005544

$1.85

37

Elastic Locking Nut M10 X 1.5

233601416

$1.68

38

Arm Ass'y (40") | Formula S. Formula DLX 380.

580649600

Unavailable

Arm Ass'y (42")

580649700

Unavailable

39

Hex. Screw M12 x 50

207025044

Unavailable

40

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

41

Hex. Screw M12 x 100

230020044

Unavailable

42

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

43

Rear Link Plate

517254900

Unavailable

44

Front Link Plate

517254800

Unavailable

45

Support

518306700

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable
