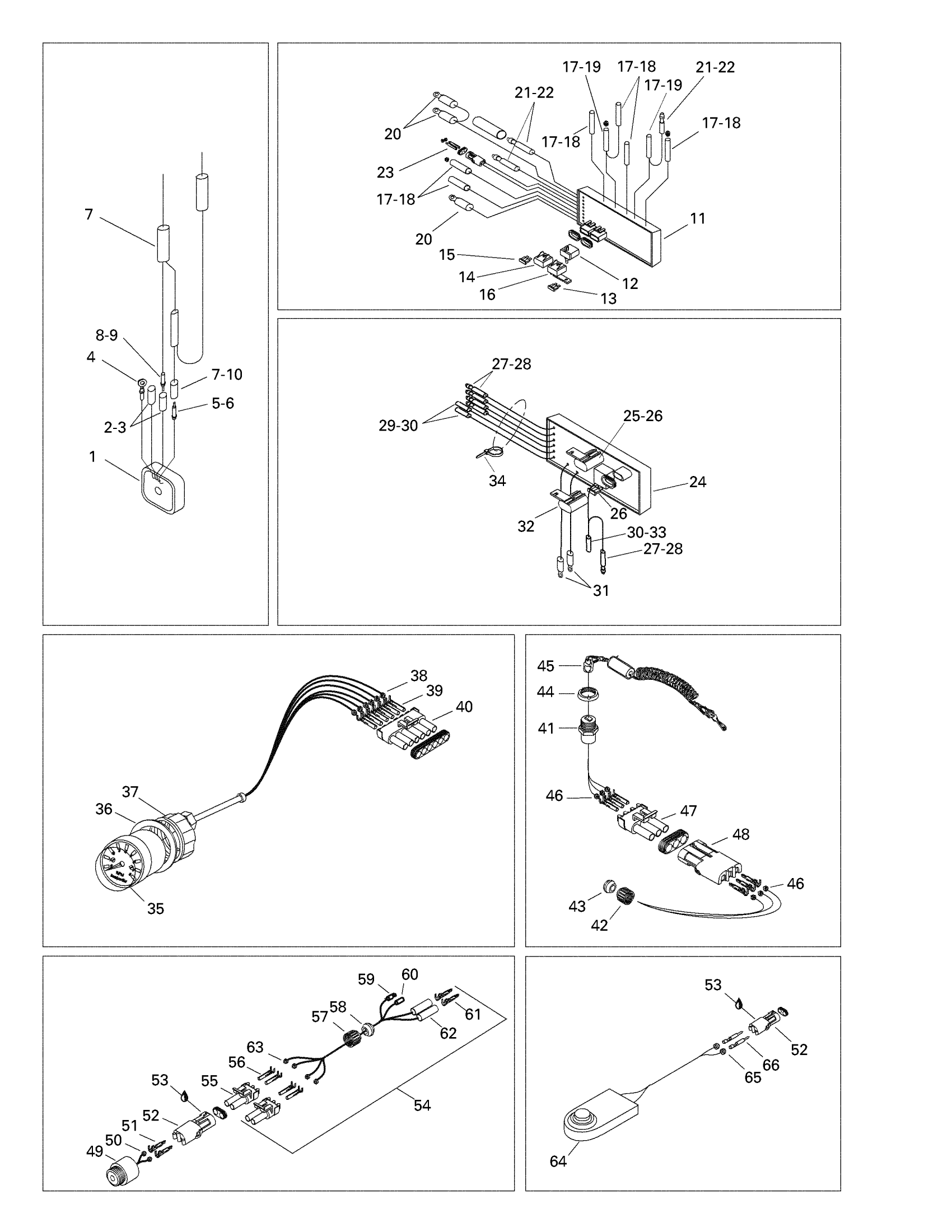

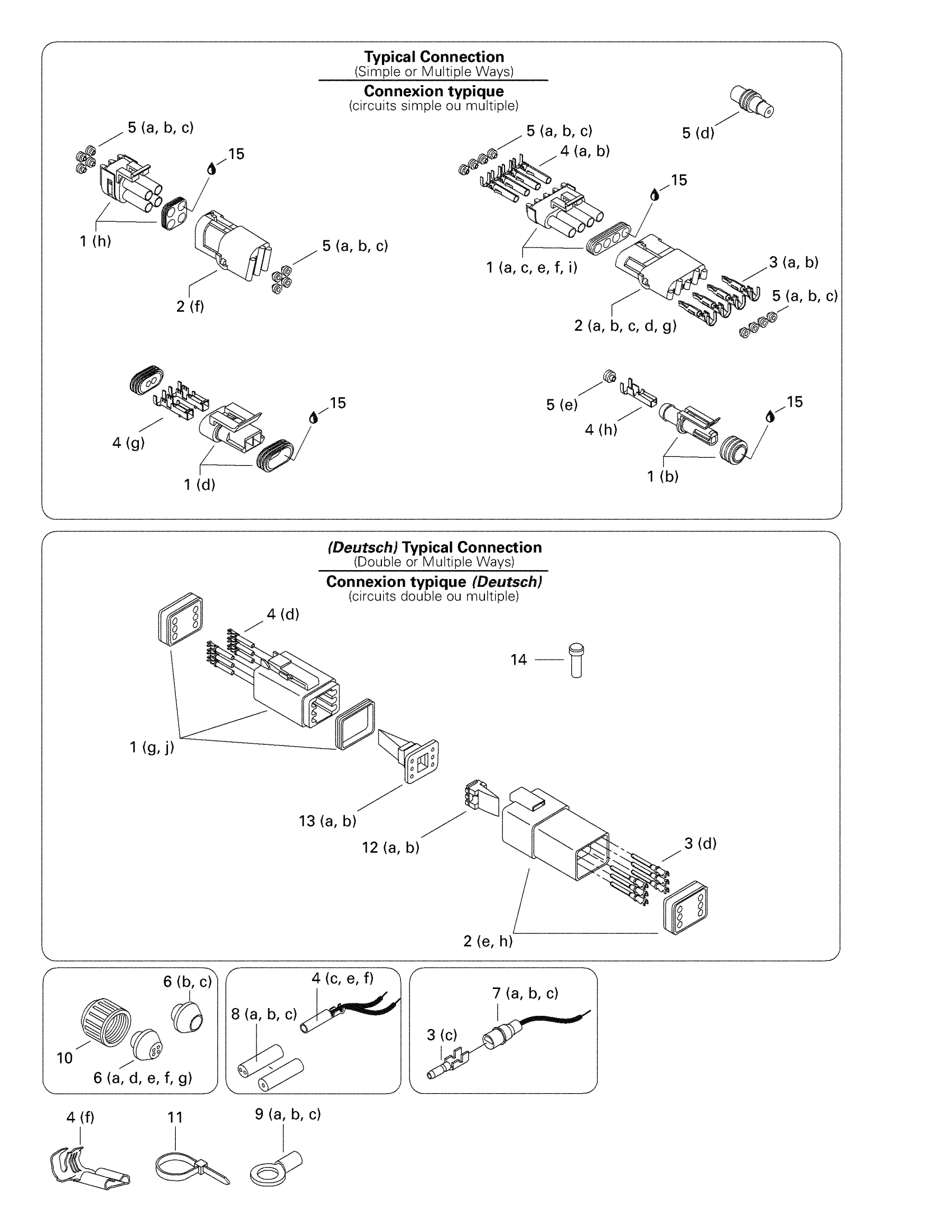

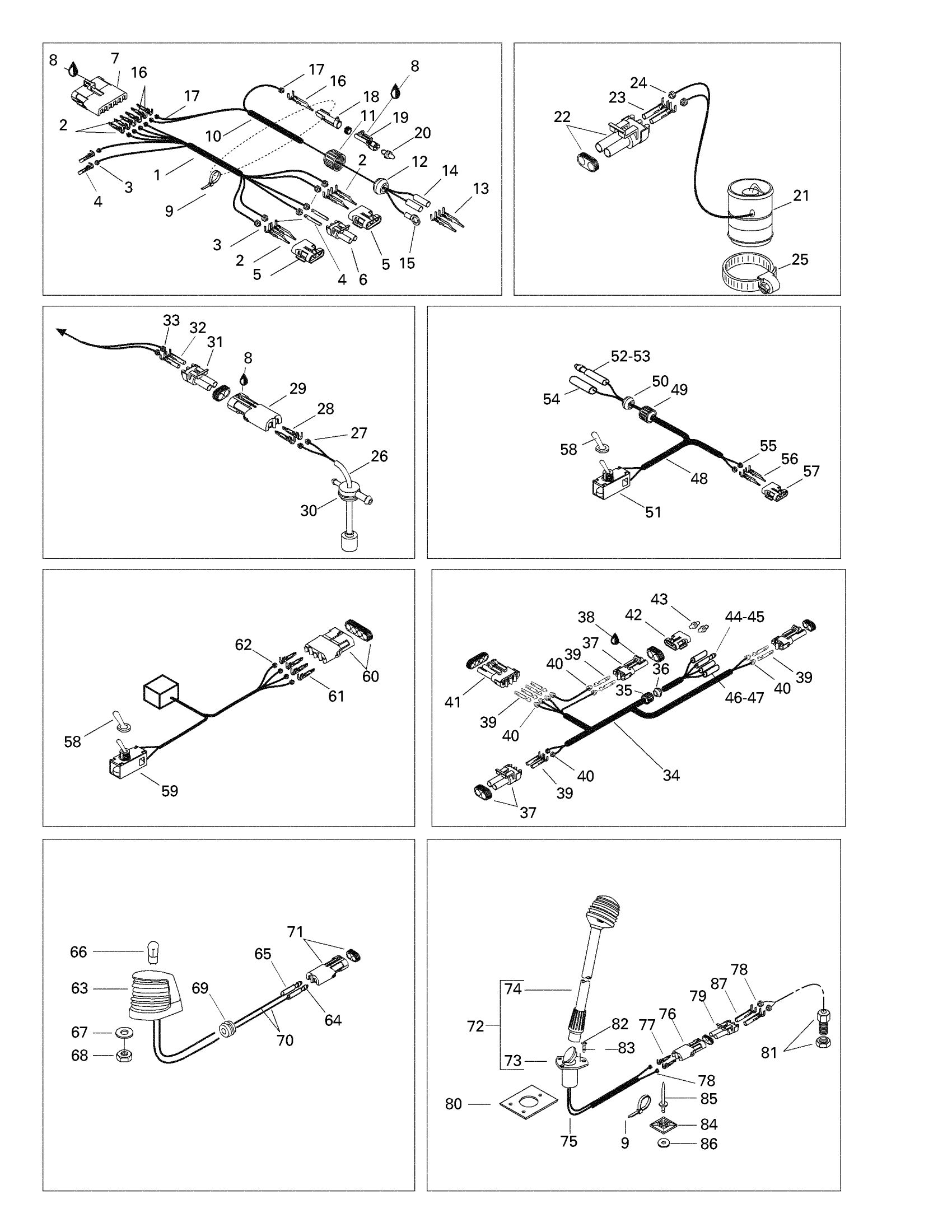

Sea-doo Explorer, 5824, 1997 Electrical Accessories Diagram

#

Description
Price

1

6 Ways Harness (Gauge) | Includes 1 - 6.

278000589

Unavailable

2

Male Terminal | XT Models

278000222

$3.19

3

Wire Seal

278000218

$4.39

4

Female Terminal

278000223

$3.19

5

Female Housing, 2 Circuits

278000217

$9.59

6

Male Connector, 2 Circuits

278000220

$15.49

7

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

8

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

9

Tie Wrap 142 mm

293750002

$1.25

10

3 Ways Harness | Includes 10 - 17.

278000607

Unavailable

11

Electric Wire Cap

278000100

Unavailable

12

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

13

Male Terminal

278000230

$4.39

14

Insulation Sheath

278000231

$5.08

15

Ring Terminal

278000300

Unavailable

16

Male Terminal | XT Models

278000222

$3.19

17

Wire Seal

278000218

$4.39

18

Female Housing, 1 Circuit

278000161

$9.59

19

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

20

Wire Seal

278000216

$3.19

21

Fan Ass'y | Includes 44 to 47

204470108

$144.99

22

Male Connector, 2 Circuits

278000220

$15.49

23

Female Terminal

278000223

$3.19

24

Wire Seal

278000218

$4.39

25

Tridon Clamp

293650054

$9.49

26

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

27

Wire Seal

278000218

$4.39

28

Male Terminal | XT Models

278000222

$3.19

29

Female Housing, 2 Circuits

278000217

$9.59

30

Grommet

278470104

Unavailable

31

Male Connector, 2 Circuits

278000220

$15.49

32

Female Terminal

278000223

$3.19

33

Wire Seal

278000218

$4.39

34

Light Harness | Includes 34 - 47.

278000564

Unavailable

35

Electric Wire Cap

278000100

Unavailable

36

Grommet, 4 Circuit, Red

570026800

Unavailable

37

Male Connector, 2 Circuits

278000220

$15.49

38

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

39

Female Terminal

278000223

$3.19

40

Wire Seal

278000218

$4.39

41

Male Housing, 4 Circuits

278000395

$15.99

42

Female Housing, 2 Circuits

278000217

$9.59

43

Wire Seal

278000216

$3.19

44

Insulated Sheath

278001008

$3.28

45

Male Terminal

278000230

$4.39

46

Insulated Sheath

278001007

$3.58

47

Female Terminal | DS 650 X

278001009

$3.19

48

Ventilation Harness | Includes 48 - 57.

278000390

Unavailable

49

Electric Wire Cap

278000100

Unavailable

50

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

51

Toggle Switch

278000349

Unavailable

52

Insulated Sheath

278001008

$3.28

53

Male Terminal

278000230

$4.39

54

Insulated Sheath

278001007

$3.58

55

Wire Seal

278000218

$4.39

56

Male Terminal | XT Models

278000222

$3.19

57

Female Housing, 2 Circuits

278000217

$9.59

58

Cap-Fan Switch/Lights

204000011

Unavailable

59

Light Switch Ass'y (Incl. It. 2 4)

278000605

Unavailable

60

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

61

Male Terminal | XT Models

278000222

$3.19

62

Wire Seal

278000218

$4.39

63

Front Lamp Ass'y | Includes 63 - 66.

278000604

Unavailable

64

Male Terminal

278000230

$4.39

65

Insulation Sheath

278000231

$5.08

66

Bulb Front Lamp

278000765

Unavailable

67

Flat Washer 4 mm, Stainless

234041600

$1.15

68

Elastic Stop Nut M4

232541600

$1.15

69

GROMMET - Call your local BRP dealership

293720015

Unavailable

70

2 Ways Harness Front Lamp | (Incl. It. 56, 62)

278000634

Unavailable

71

Female Housing, 2 Circuits

278000217

$9.59

72

Rear Lamp Ass'y (Incl. It. 2,3)

278000603

Unavailable

73

Rear Lamp Base

278000677

Unavailable

74

Rear Lamp Pole

278000678

Unavailable

75

2 Ways Harness (Rear Light) | Includes 75 - 78.

278000691

Unavailable

76

Female Housing, 2 Circuits

278000217

$9.59

77

Male Terminal | XT Models

278000222

$3.19

78

Wire Seal

278000218

$4.39

79

Male Connector, 2 Circuits

278000220

$15.49

80

Retainer Plate

278000652

Unavailable

81

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

82

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

83

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

84

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

85

Rivet 1/8"

293150016

$0.40

86

Flat Washer M3, Stainless

234032600

$0.55

87

Female Terminal

278000223

$3.19

88

Harness (3 Wires) | (Speed Sensor)

278000581

Unavailable
