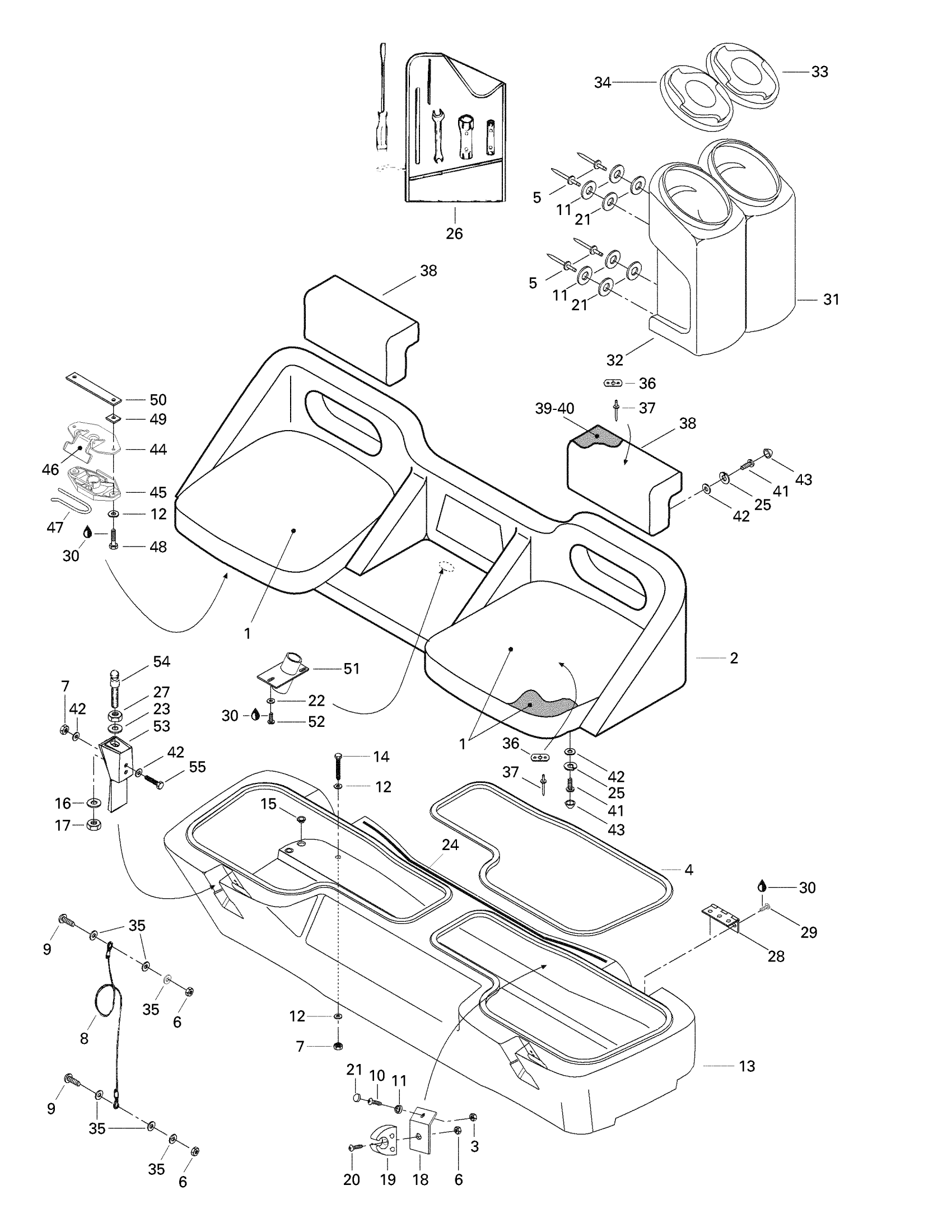

Sea-doo Explorer, 5824, 1997 Rear Seat And Storage Compartment Diagram

#

Description
Price

1

Seat Ass'y (Incl. It. 39,40)

269000179

Unavailable

Seat Cover

269000196

Unavailable

Rear Seat Foam

269000214

Unavailable

Staple

293730005

Unavailable

2

Seat Base / coffre (incl. it 4)

269000203

Unavailable

3

Elastic Stop Nut M4

232541600

$1.15

4

Seal Tray 1000Mm Long

219704368

$13.99

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Hex. Elastic Nut M5 | X

232551600

$1.15

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

RETAINER CABLE - Call your local BRP dealership

204000117

Unavailable

9

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

10

SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership

216142060

Unavailable

11

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.77

13

Rear Tray

291001115

Unavailable

14

Hex. Screw M6 X 35

207163560

$1.49

15

Black Plug

291000279

$7.69

16

Flat Washer 10 mm, Stainless

234002600

$2.22

17

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

18

Base Support

269500200

Unavailable

19

Pole Support

291000642

Unavailable

20

Screw M5 x 25

216152560

Unavailable

21

Snap Cap (White)

414576500

Unavailable

22

Flat Washer M5, Stainless

234051600

$0.77

23

Flat Washer 10 mm, Stainless

234001600

$1.15

24

Was 293200017 Neoprene Seal

219704365

$149.99

25

Lock Washer Helical M6

234161601

$1.15

26

Tool Kit

295000066

Unavailable

27

Hex. Jam Nut M10

232100600

$2.22

28

Seat Hinge

269000125

Unavailable

29

Screw M5 x 12

216151260

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

32

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

33

Storage Housing Cap

269500237

Unavailable

34

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

35

Flat Washer 5 mm, Stainless

234052600

$0.77

36

Spring Nut M5

204000065

Unavailable

37

Rivet 3/32"

204000080

Unavailable

38

Backrest Ass'y | (Incl. It. 36,37,39,40)

269000197

Unavailable

39

Backrest Cover

269000198

Unavailable

40

Backrest Foam

269000199

Unavailable

41

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

216662560

Unavailable

42

Stainless Flat Washer M6

234061600

$0.33

43

Cap (1/2")

269000252

Unavailable

44

Latch Ass'y

269700109

$24.99

45

Latch Ass'y

269700109

$24.99

46

Latch Ass'y

269700109

$24.99

47

Latch Spring

269700017

$9.19

48

HEX. SCREW M6 X 45 - Call your local BRP dealership

207064560

Unavailable

49

Shim-Spacer

269000254

Unavailable

50

Retainer Plate

269000243

Unavailable

51

Base-Rear Lamp

269000244

Unavailable

52

Screw M5 x 10

215851068

Unavailable

53

Stud Support

204610206

Unavailable

54

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

55

Hex. Forming Screw M6 X 20

207162060

$1.29
