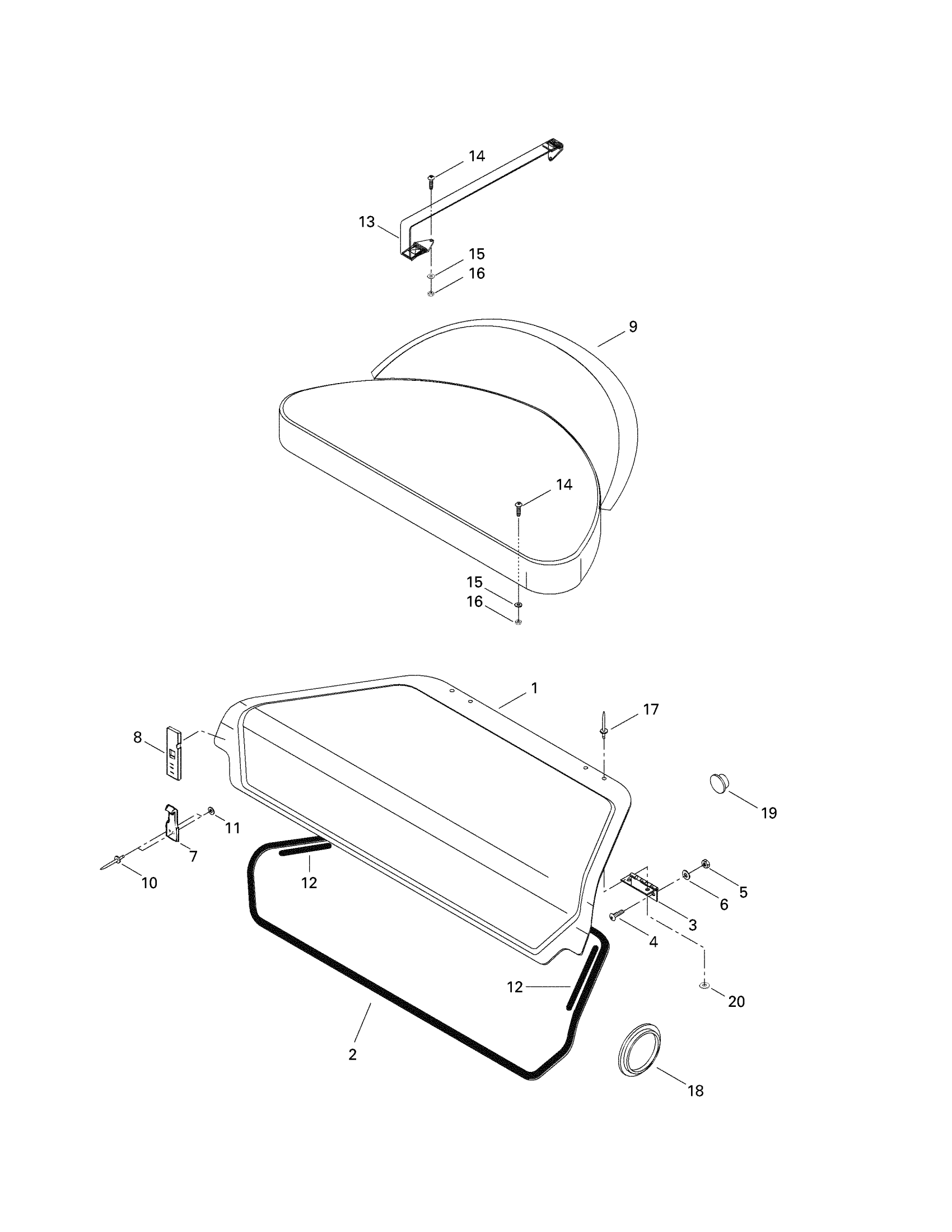

Sea-doo Explorer, 5824, 1997 Front Seat And Storage Compartment Diagram

#

Description
Price

1

Front Storage Cover

269500189

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$149.99

3

HINGE - Call your local BRP dealership

204072601

Unavailable

4

Screw M4 x 16

216141660

Unavailable

5

Elastic Stop Nut M4

232541600

$1.15

6

Flat Washer 4 mm

234040600

$0.55

7

LATCH SUPPORT - Call your local BRP dealership

291000166

Unavailable

8

Latch (Female)

291000165

$20.99

9

Front Seat Assembly (Incl. It. 13)

269000182

Unavailable

Seat Cover

269000200

Unavailable

Front Seat Foam

269000107

Unavailable

Front Backrest Foam

269000108

Unavailable

Staple

293730005

Unavailable

10

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

11

Flat Washer M3, Stainless

234032600

$0.55

12

Neoprene 1/4 x 3/8 (Meter)

204000094

Unavailable

13

Strap

269000201

Unavailable

14

Screw M5 x 16

216151660

Unavailable

15

Flat Washer 5 mm, Stainless

234052600

$0.77

16

Hex. Elastic Nut M5 | X

232551600

$1.15

17

Pop Rivet 3/16"

204000081

$1.49

18

Bottom Pan Cap

570277400

Unavailable

19

Hunky Cap

293000030

Unavailable

20

Washer 5 mm

213000004

Unavailable
