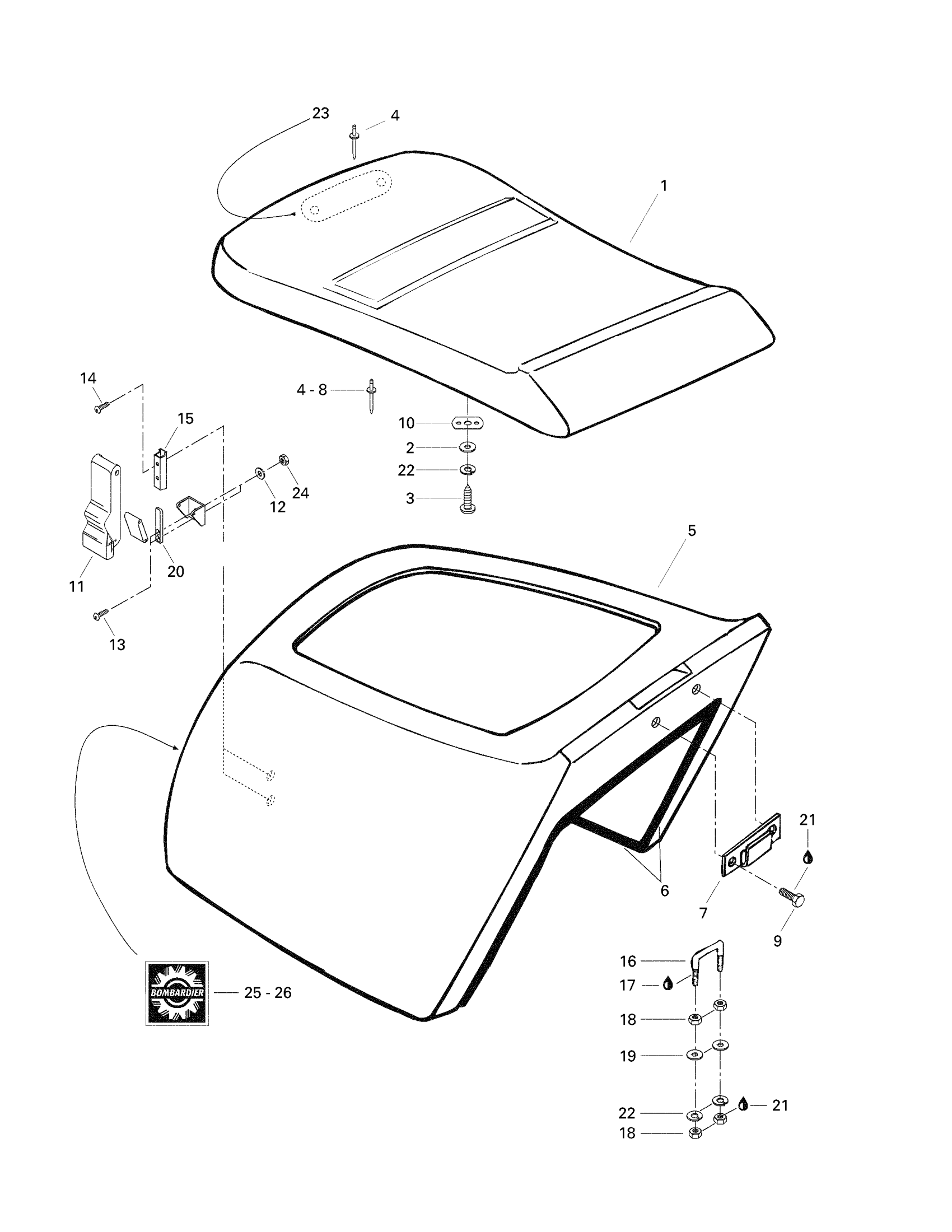

Sea-doo Explorer, 5824, 1997 Engine Cover And Seat Diagram

#

Description
Price

1

Seat Driver(Incl. It. 4,8,10,23)

269000177

Unavailable

Seat Cover

269000195

Unavailable

Seat Foam

269000103

Unavailable

Staple

293730005

Unavailable

2

Flat Washer M6, Stainless

234062600

$0.77

3

Screw 6.3 x 32

216663260

Unavailable

4

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

5

Seat Base / Engine Cover

269000202

Unavailable

6

Seal Tray 1000Mm Long

219704368

$13.99

7

Base Keeper

291000174

$19.99

8

Rivet 3/32"

204000080

Unavailable

9

Hex. Forming Screw M6 X 20

207162060

$1.29

10

Spring Nut M5

204000065

Unavailable

11

Seat Latch

269000124

Unavailable

12

Flat Washer M5, Stainless

234051600

$0.77

13

Screw M5 x 25

216152560

Unavailable

14

Screw M5 x 10

215851068

Unavailable

15

Support

269000146

Unavailable

16

Hook

291000545

Unavailable

17

Loctite 271, 10 ml

293800005

$26.99

18

Hex. Nut M6

232061600

$1.15

19

Stainless Flat Washer M6

234061600

$0.33

20

Guide

269000145

Unavailable

21

Loctite 243, 10 ml

293800060

$21.49

22

Lock Washer Helical M6

234161601

$1.15

23

Handle

269000249

Unavailable

24

Hex. Elastic Nut M5 | X

232551600

$1.15

25

Logo Bombardier

219900361

Unavailable

26

Primer

293530036

Unavailable
