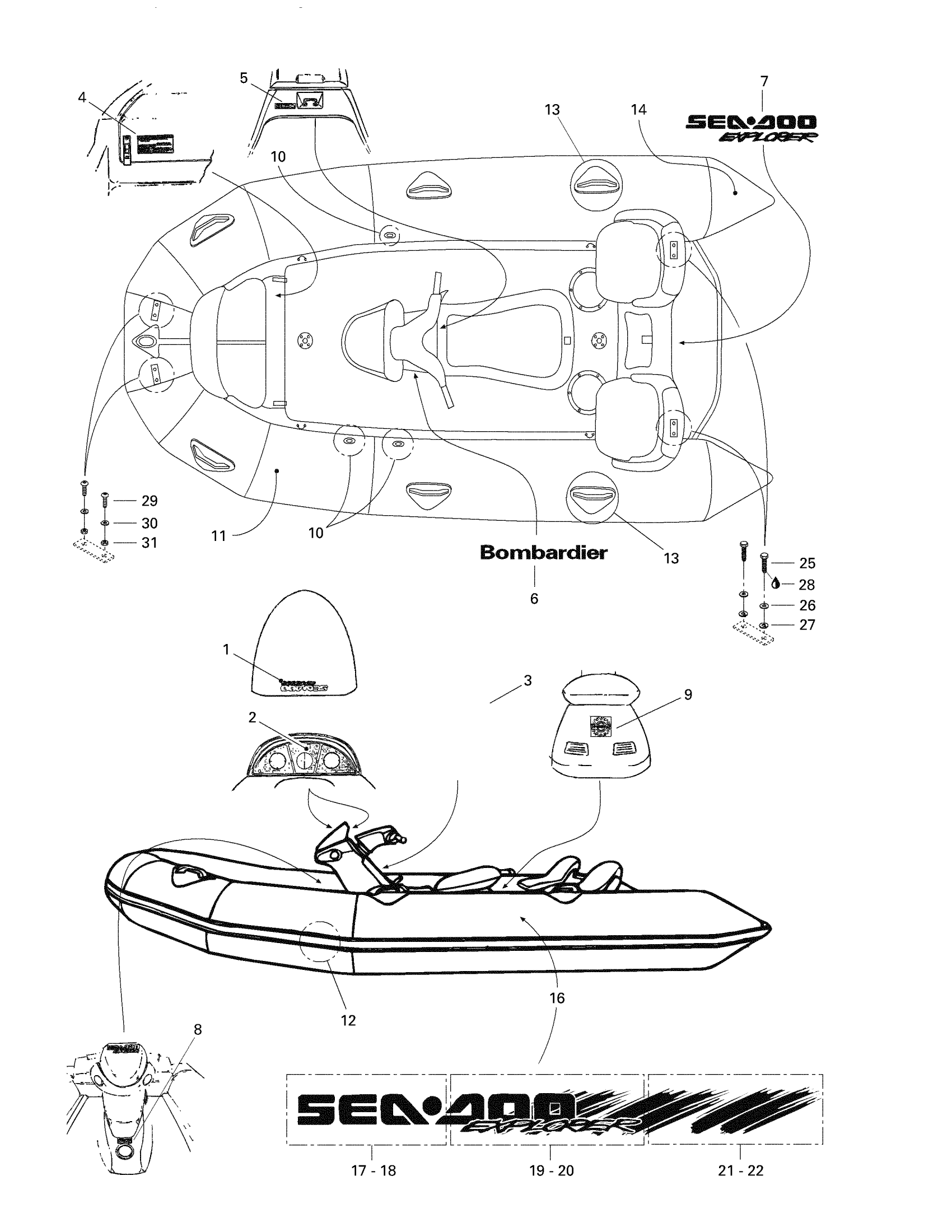

Sea-doo Explorer, 5824, 1997 09- Decals And Hypalon Tube Diagram
#
Description
Price
1
Sea-Doo Explorer Decal
219900478
Unavailable
2
Dash Decal
219900477
Unavailable
3
Console Decal
204900129
Unavailable
4
Exemption Decal
219900924
Unavailable
5
Warning Decal, Battery
219900270
Unavailable
6
Bombardier Decal
219900334
Unavailable
7
Sea-Doo Decal (Storage Cover)
219900481
Unavailable
8
<> Decal
219900177
Unavailable
9
Logo Bombardier
219900361
Unavailable
10
Valve
204000041
Unavailable
11
Hypalon Tube Ass'y | Includes 11 - 16.
292000201
Unavailable
12
Strip Protector
204000038
Unavailable
13
Handle Grip
292000202
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Fabric Strip (Not Shown)
204000128
Unavailable
16
Explorer Decal Kit | Includes 16 - 23.
295500203
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Glue-Decal (Not Shown)
204000036
Unavailable
24
Primer
293530036
Unavailable
25
Hex. Screw M6 X 30
207163060
$1.48
26
Flat Washer M6, Stainless
234062600
$0.77
27
Lock Washer Helical M6
234161601
$1.15
28
Loctite 243, 10 ml
293800060
$21.49
29
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
30
Stainless Flat Washer M6
234061600
$0.33
31
Hex. Elastic Stop Nut M6
232561600
$1.15
32
Glue-P.V.C (Not Shown)
204000044
Unavailable
33
Glue-Air Tube (Hypalon) (Not Shown)
204000045
Unavailable
34
Zeppelin Repair Kit (Not Shown)
204000046
Unavailable
