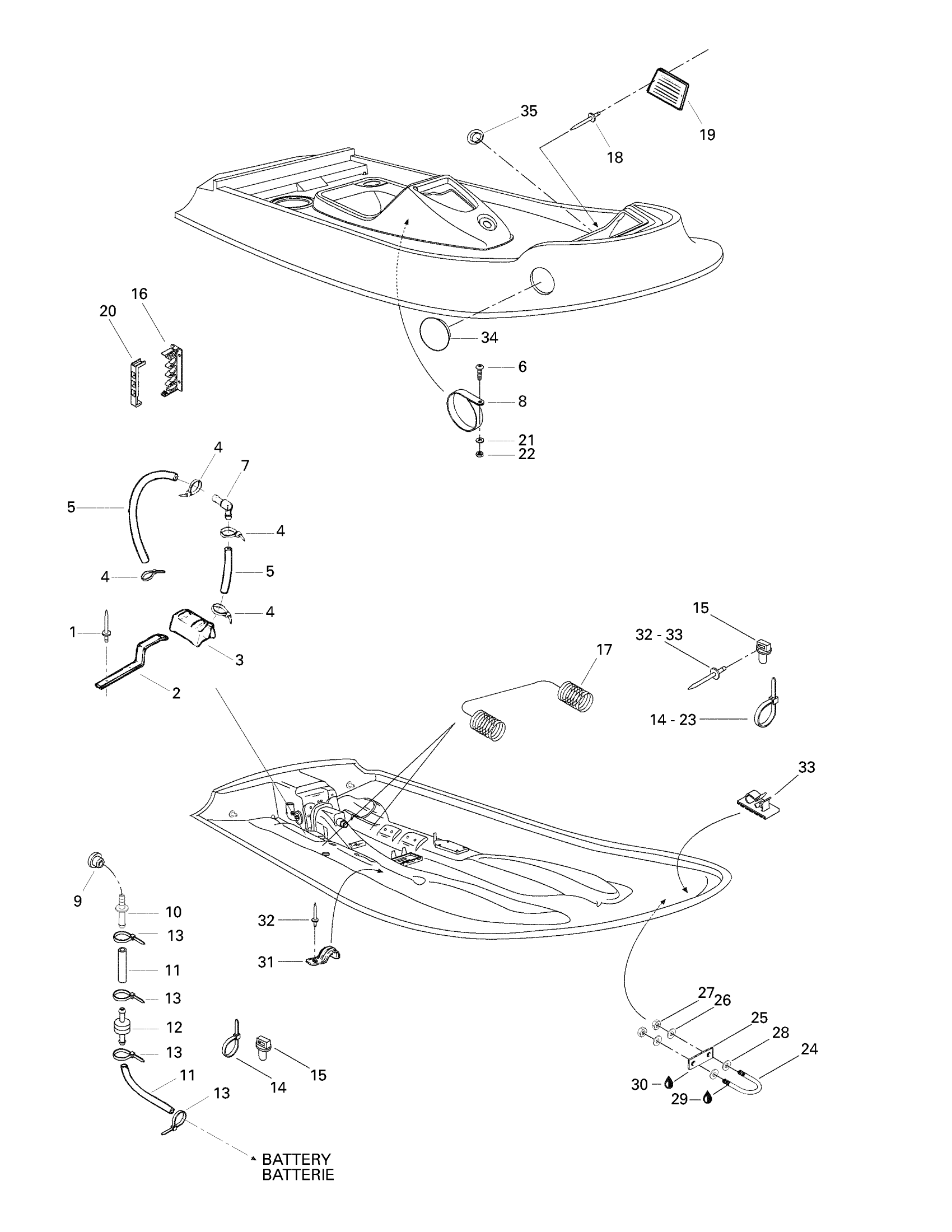

Sea-doo Explorer, 5824, 1997 Body And Accessories Diagram

#

Description
Price

1

Avdel Rivet 3/16"

293150037

$0.56

2

Spring Clip

292000045

Unavailable

3

Screen Bailer

292000079

Unavailable

4

Tie Wrap 94 mm | 4X4

293750001

$1.03

5

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

6

Screw M5 x 25

216152560

Unavailable

7

Elbow 90 Deg

293710028

Unavailable

8

Clamp-Cable

204000064

Unavailable

9

Grommet

709200285

$9.69

10

Straight Fitting

293710036

Unavailable

11

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

12

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

13

Tie Wrap 94 mm | 4X4

293750001

$1.03

14

Tie Wrap 142 mm

293750002

$1.25

15

Mount Dart

293730040

$1.04

16

Tie Mount Top

293750012

Unavailable

17

Flexible Hose 3" (Meter)

204000063

Unavailable

18

RIVET_PLASTIC - Call your local BRP dealership

204130080

Unavailable

19

Rear Intake Grill (Violet)

291000528

Unavailable

20

Tie Mount

293750013

Unavailable

21

Flat Washer M5, Stainless

234051600

$0.77

22

Hex. Elastic Nut M5 | X

232551600

$1.15

23

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

24

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

25

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

26

Lock Washer 8 mm, Stainless

234181601

$0.55

27

Hex. Nut M8

232081600

$1.47

28

Flat Washer M8.5 x 18

293050001

$3.07

29

Loctite 271, 10 ml

293800005

$26.99

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

Clip Cable

293750011

Unavailable

32

Rivet 1/8"

293150016

$0.40

33

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

34

Bottom Pan Cap

570277400

Unavailable

35

Hunky Cap

293000030

Unavailable
