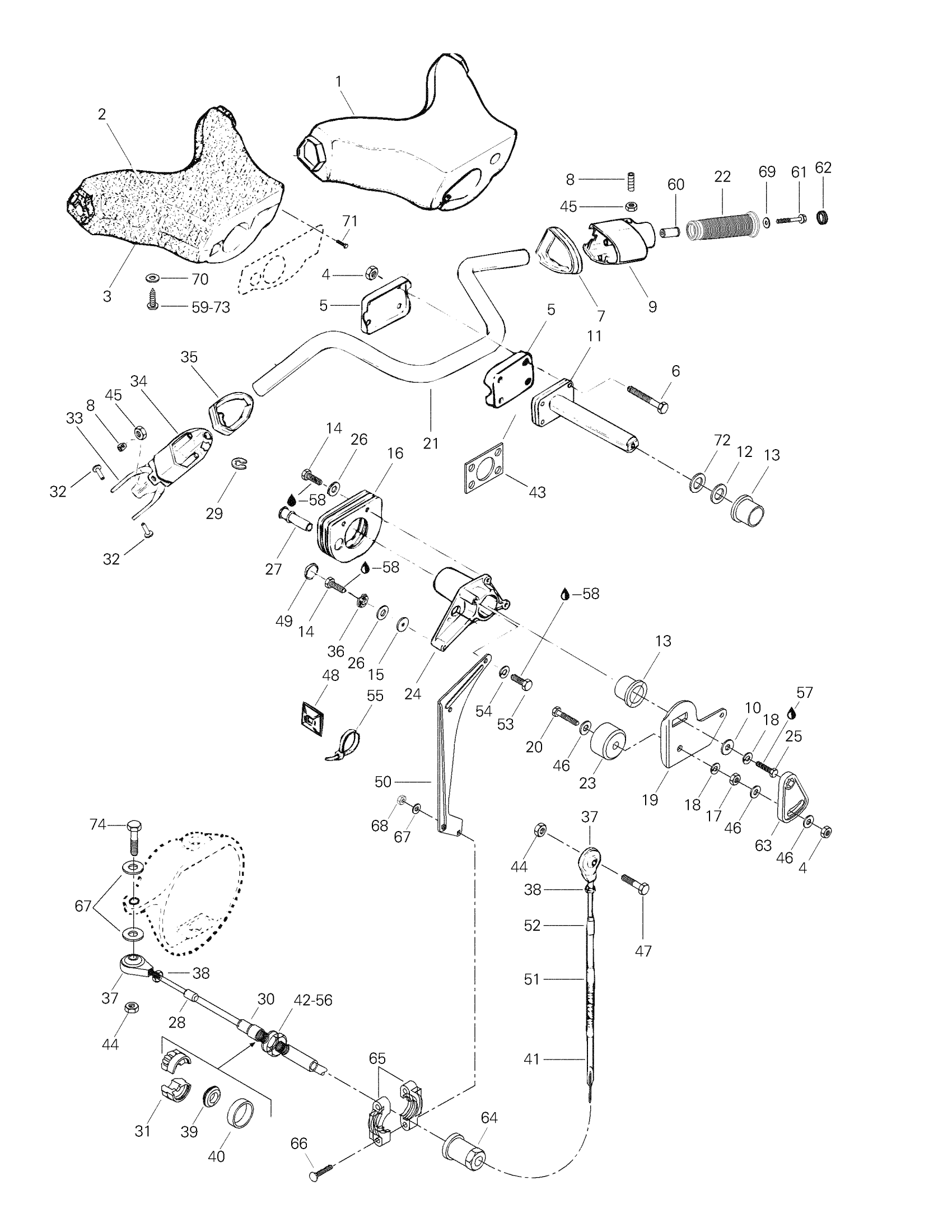

Sea-doo Explorer, 5824, 1997 Steering System Diagram

#

Description
Price

1

Steering Cover

277000260

Unavailable

2

TOP FOAM - Call your local BRP dealership

277000145

Unavailable

3

Bottom Foam

277000146

Unavailable

4

Hex. Elastic Nut M8

232581600

$1.48

5

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

6

HEX. SCREW M8 X 55 - Call your local BRP dealership

207085560

Unavailable

7

LH Adapter

277000341

Unavailable

8

Set Screw M6 x 10

216561060

Unavailable

9

LH HOUSING ASS'Y - Call your local BRP dealership

277000221

Unavailable

10

Washer

211200001

Unavailable

11

Steering Stem

277000223

Unavailable

12

SHIM - Call your local BRP dealership

293350006

Unavailable

13

Bushing

293900002

Unavailable

14

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

15

Plastic Washer

277000100

Unavailable

16

Collar (Black)

277000091

Unavailable

17

Hex. Nut M8

232081600

$1.47

18

Lock Washer 8 mm, Stainless

234181601

$0.55

19

Steering Stem Arm

277000247

Unavailable

20

Hex. Screw M8 X 45

207084560

$3.38

21

Handle bar

277000305

Unavailable

22

Handle Grip Kit (Black) This part replaces 295500112.

295500110

$41.49

23

Stopper Bushing

277000097

Unavailable

24

Steering Support

277000115400

Unavailable

25

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

26

Flat Washer 8 mm, Stainless

234082600

$2.43

27

Grommet

293720014

Unavailable

28

Small Boot

277000038

Unavailable

29

Circlip 5 mm

293370002

$5.50

30

LARGE BOOT - Call your local BRP dealership

277000039

Unavailable

31

Half-Ring

277000168

Unavailable

32

PIN - Call your local BRP dealership

277000381

Unavailable

33

Throttle Handle

277000472

Unavailable

34

THROTTLE HANDLE HOUSING - Call your local BRP dealership

277000222

Unavailable

35

Throttle Adapter

277000084

Unavailable

36

Retaining Washer

277000096

Unavailable

37

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

38

Hex. Nut

212100005

$1.35

39

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

40

Retaining Ring

211100010

Unavailable

41

STEERING CABLE ASS'Y - Call your local BRP dealership

204390060

Unavailable

42

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

43

Spacer

277000436

Unavailable

44

Hex. Elastic Stop Nut M6

232561600

$1.15

45

Hex. Nut M6

232160600

$1.15

46

Stainless, Flat Washer 8 mm

234081600

$0.55

47

Hex. Screw M6 X 30

207063060

$1.89

48

TIE RAP MOUNT - Call your local BRP dealership

293750003

Unavailable

49

Snap Cap

210000019

Unavailable

50

Cable Support

277000248

Unavailable

51

Large Boot

277000277

Unavailable

52

SMALL BOOT - Call your local BRP dealership

277000278

Unavailable

53

Hex. Screw M8 x 16

215681660

Unavailable

54

Lock Washer 8 mm, Stainless

234181601

$0.55

55

Tie Wrap 142 mm

293750002

$1.25

56

Hex. Jam Nut 1/2-20

211100011

Unavailable

57

Loctite 271, 10 ml

293800005

$26.99

58

Loctite 243, 10 ml

293800060

$21.49

59

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

60

Not Available As Spare Part - Friction Washer

Unavailable

61

PLASTITE SCREW HEX. M6.81 X 45 - Call your local BRP dealership | (7448 Up to S/N v000708)

243164560

Unavailable

62

Black, Cap

277000203

$9.39

63

Lock Plate

277000201

Unavailable

64

KNOB ADJUSTER - Call your local BRP dealership

277000167

Unavailable

65

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

66

Bolt-Carriage M6 x 60

215266060

Unavailable

67

Stainless Flat Washer M6

234061600

$0.33

68

Hex. Elastic Stop Nut M6

232561600

$1.15

69

Flat Washer M6, Stainless

234062600

$0.77

70

Flat Washer M5, Stainless

234051600

$0.77

71

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

72

Spring Washer

211200008

Unavailable

73

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

74

Hex. Screw M6 X 40

207064060

$1.69
